    PID Temperature Controller, Dual Digital

    PID temperature controller has dual digital 4 LED display, switch control/PID control, 4 output modes to choose from (relay output/SSR output/SCR/transmitter output 4-20mA), RS485/232 communication output, timing relay and other outputs, temperature controller has self-adjustment function and intelligent control, which ensures the long-term stability of the instrument.
    SKU: SISCO-TC-2D
    *
    *
    *
    *
    *
    $69.85
    i h
    Free shipping
    Delivery date: 7-12 days
    Overview



    Digital PID controller has an alarm relay output, ON/OFF control mode, supports universal input (Cu50/Pt100/K/E/J/T/S/R, 4-20mA, etc.), not only can support temperature sensor, but also support various sensors, such as pressure sensors, load cells, and displacement sensors, etc

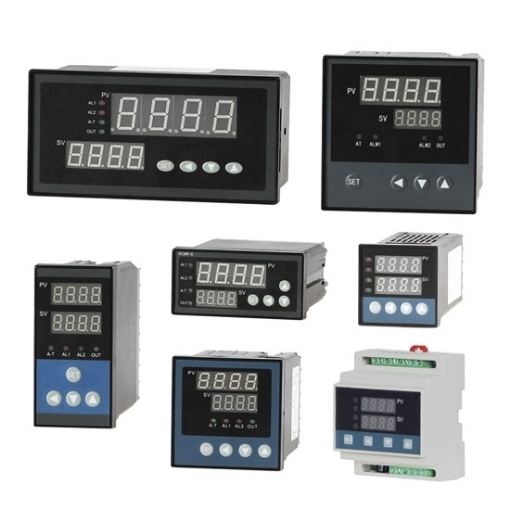

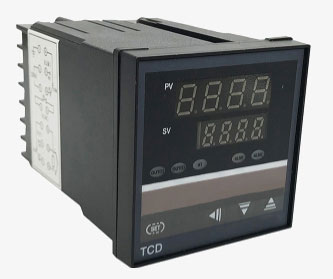

    Temperature controller

    Support a variety of sensors at the same time

    • Supports CU50/PT100/K/E/J/T/S/R temperature sensors
    • Support 4-20 mA /0-10mA/ 1-5v/0- 10v/0- 5v current signal.
    • Double-row four-digit digital tube display, four keys to operate the temperature control meter, display the measured value and the set value at the same time.

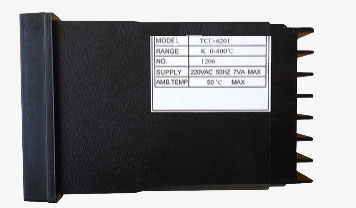

    PID temperature controller



    Control mode arbitrary switching

    • Control mode has upper and lowers limit control, and PID controls two ways to switch at will.
    • PID control has a parameter self-tuning function, which can achieve accurate measurement and efficient thermostats for temperature, pressure, flow, etc.
    • The PID control has a parameter self-tuning function, which can achieve accurate measurement and efficient constant temperature and pressure control.



    Application

    Temperature controllers are widely used in various home appliances, such as water dispensers, water heaters, etc. The refrigerator uses a temperature controller to adjust the temperature to keep food fresh. The temperature controller can always control the temperature inside the refrigerator within a certain range. When the temperature is higher than the specified range, the thermostat can automatically cool down.


    Temperature controller applications

    Specs
    Model SISCO-TCD2
    Weight 0.5kg
    Dimension (Length*High*Depth) * D1: 160*80*80mm with hole size 152*76mm; D2: 96*96*110mm with hole size 92*92mm; D3: 48*96*110mm with hole size 44*92mm; D4: 96*48*110mm with hole size 92*44mm; D5: 72*72*110mm with hole size 68*68mm; D6: 48*48*110mm with hole size 44*44mm; D7: Rail type 72*88*59mm
    Supply voltage 85V-240V AC or 24V DC, 50-60Hz
    Working environment Temperature: -10~60℃, humidity: ≤90%RH
    Sampling period 8 times/second; When set digital filter parameter FILt=0, response time≤0.5s
    Accuracy ±0.5%F.S ±1 digit
    Resolution ≤0.01℃
    Input signal * I1. Temperature sensor: CU50 (-50.0~150.0℃), PT100 (-199.9~600.0℃), K (-50.0~1300℃), E (-50.0~700.0℃), J (-30.0~900.0℃), T (-199.9~400.0℃), S (-30.0~1600℃), R (-30.0~1700℃), WR25 (-30.0~2300℃), N (-30.0~1200.0℃)
    I2. Analog signal: 4-20mA, 0-10mA, 0-5V, 1-5V, 0-50mV, 10-50mV
    Control mode 1. On-off control; 2. PID control
    Need manually switch to another control mode.
    Output mode * O1: Relay output; O2: SSR output; O3: SCR output; O4: Transmitter output 4-20mA/0-10V
    Alarm mode * A1 Default mode: 1 alarm output; A2 Extension mode: 2 alarm outputs
    Alarm Upper limit, lower limit, upper deviation, lower deviation, in the deviation section, outside the deviation section
    Additional power supply * DC 24V for sensor of input signal I2
    Additional output mode * RS: RS485/232 communication (MODBUS-RTU protocol); TS: 4-20mA/1-5V, 0-10mA/0-5V transmitter; PT: Printer (TTL232 print out); TI: Timer relay


    Wiring diagram

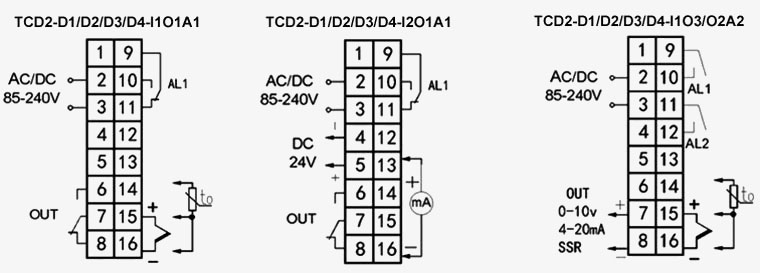

    1. PID temperature controller wiring diagram

    PID temperature controller wiring diagram

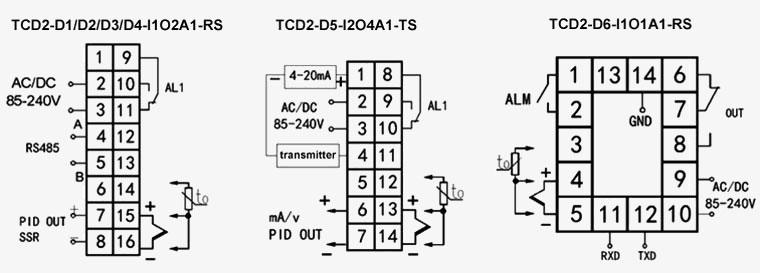

    2. PID temperature controller with RS485/232 or transmitter wiring diagram

    PID temperature controller with RS485 transmitter wiring diagram

    3. PID temperature controller with timer relay wiring diagram
    PID temperature controller with timer relay wiring diagram

    FAQs

    Q1: What is a temperature controller?
    A1: A thermostat is a series of automatic control elements that generate certain special effects by physical deformation inside the switch according to the temperature change of the working environment, resulting in an on or off action, also called temperature control switch, temperature protector,  temperature controller, or thermostat for short. Or through the temperature protector will be temperature to the temperature controller, temperature the controller issues a switch command, so as to control the operation of the equipment to achieve the desired temperature and energy-saving effect.

    Q2: What is the working principle of a temperature controller?
    A2: Its working principle is to automatically sample and instantly monitor the ambient temperature through the temperature sensor, and the control circuit starts when the ambient temperature is higher than the control setpoint, and the control return difference can be set. If the temperature is still rising, the over-limit alarm function is activated when it rises to the set over-limit alarm temperature point. When the controlled temperature can not
    be effectively controlled, in order to prevent the destruction of the equipment can also stop the equipment to continue to run through the function of tripping. It is mainly used in various high and low-voltage switchgear, dry-type transformers, box-type substations, and other related temperature fields used in the electric power sector.

    Q3: What is the temperature controller used for?
    A3: Digital electronic temperature controller is a precision temperature detection controller, that can be digital quantitative control of temperature, temperature controller is generally used NTC thermal sensor or thermocouple as the temperature detection element.

    Tips: What is the meaning of PID in a temperature controller?

    In a temperature controller, PID control is the setting of the parameter P to a non-zero value (setting the parameter P to zero is called ON/OFF control). The PID controller regulates the heater to change the measured value (PV), which is compared with the set value (SV) to obtain the deviation value (EV = SV - PV). The deviation value (EV) is fed back to the PID controller through the sensor, and the PID controller calculates the next adjustment of the heater on. The PID control system is a closed-loop control, and the heating equipment can work at different powers. In all time periods, the actual value and the set value are infinitely close to each other. Theoretically, it is possible to achieve error-free control between the actual temperature and the set temperature.

    5.0 1
    Write your own review Close
    *
    *
    Peregrine | 11/26/2023 10:25 PM
    Efficient and easy to use
    This PID temperature controller was one of my best purchases. First of all, its dual digital display is very convenient for monitoring both temperatures. The controller's PID algorithm is very efficient and has helped me maintain a stable temperature within the system. It was also fairly easy to set up and I was impressed with its responsiveness. I use it to control my heating system and the results are very satisfying.
