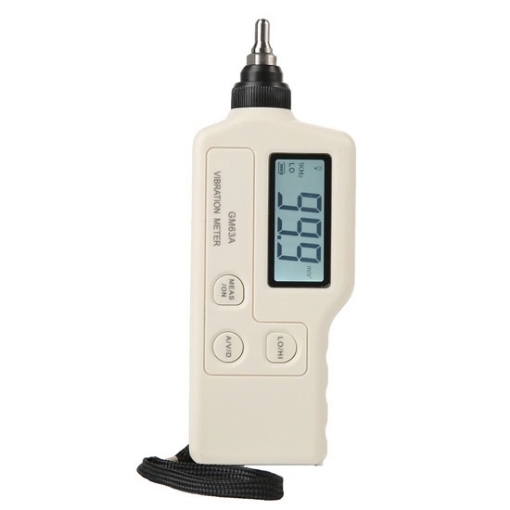

Handheld Vibration Meter

Handheld digital vibration meter with LCD display is used for vibration measurement. Portable vibration tester with acceleration, velocity and displacement measurement and selectable vibration frequency, helps you check the vibration of motors, machineries, bearings easily.
SKU: SISCO-VIBRO-GM63A
$286.35
i h
Free shipping
Delivery date: 7-12 days
Overview


Portable digital vibration meter is an idea tester for measuring vibration. The bearing vibration tester supports different vibration frequency options, which can quickly detect defects in motors, fans, pumps, compressors and machine tools.

Features

  • Simple operation, compact structure and portable for measurement.
  • Visually display the measurement result.
  • Acceleration, velocity and displacement measurement.
  • Different vibration frequency.
  • High sensitivity probe for accurate measurement.
  • Long and short probes provided, suitable for different situations of measurement.
  • Multi-functions, such as low power indication, auto power off, LCD backlight.

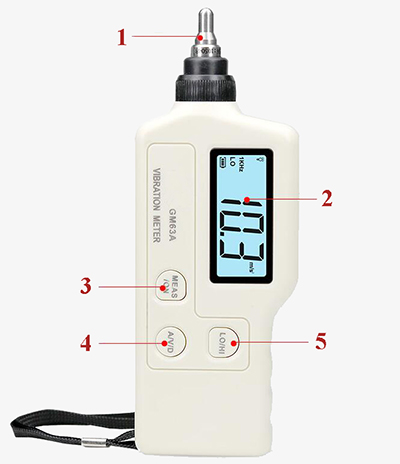

Handheld digital vibration meter details

Handheld digital vibration meter details

  1. Probe
  2. LCD display
  3. Power on and measurement key
  4. Measurement mode
  5. Frequency selection key

Applications

sisco handheld vibration meter is suitable for routine testing the vibration of machinery and equipment, especially the vibration of rotating and reciprocating machinery. It can measure acceleration, velocity and displacement, which is widely used in mechanical manufacturing, electric metallurgy, general aviation etc.

Handheld digital vibration meter application

Specs
Model SISCO-GM63A
Measuring Range Acceleration 0.1~199.9m/s² (Peak)
Velocity 0.1~199.9mm/s (RMS)
Displacement 0.001~1.999 mm (Peak-Peak)
Accuracy ±5% ±2 digits
Measuring Frequency Acceleration 10Hz~1KHz (LO); 1KHz~15KHz (HI)
Velocity 10Hz~1KHz (LO)
Displacement 10Hz~1KHz (LO)
LCD Display 3 1/2 digit display
Vibration Pickup Piezoelectric ceramic accelerometer (Shear-type)
Signal Output AC output 2V peak (display full scale);
10KΩ or high impedance headphones can be connected
Power Supply 9V Alkaline battery (NOT included)
Functions

Low battery indication 6.9V±0.2V
Auto power off Automatically shutdown with no operation for 60 seconds
LCD backlight display After 7 secends
Accessories Equipped with two probes (S and L) to meet different measurement requirements
Operating Temperature 0~40℃
Humidity 30~90%RH
Weight 182g
Dimension 67x30x183mm

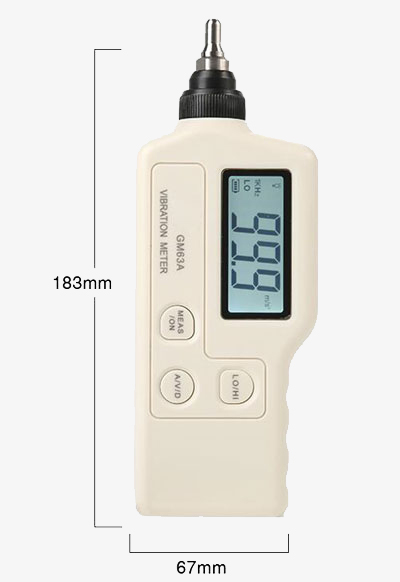

Dimension

Handheld vibration meter dimension

FAQs

Q1: What is a vibration meter?
A1:
Vibration meter is used to directly indicate the peak, peak-to-peak, mean value or root mean square value of vibration quantity such as displacement, velocity, acceleration and derivative of acceleration. The main parts of this vibration tester are integral differential circuit, amplifier circuit, voltage detector and meter head. The integral and differential circuit is used to complete the integral and differential operation between the above vibration quantities. Generally, the integral and differential operational amplifier can be used, and the low-pass filter and high-pass filter can be used respectively to complete the integral and differential operation. However, attention should be paid to their application frequency range when using such instruments for calculation. The vibration meter allows one to obtain only the total intensity of the vibration (the vibration level) and no other information.

Q2: How does a vibration meter work?
A2: Mechanical vibration is generally measured by electrical measurement. The basic principle of vibration meter is to convert mechanical quantity into electric quantity through vibration sensor, and then measure and analyze the electric quantity, so as to obtain various parameter values of the measured mechanical vibration quantity. In the field vibration test of turbine generator set, the vibration sensor commonly used in vibration tester has three types, they are eddy current non-contact displacement sensor to measure the relative vibration of rotating shaft, inertia speed sensor and voltage acceleration sensor to measure the vibration of bearing seat and foundation, cylinder structure and so on. In addition, in order to measure the absolute vibration of a rotating shaft, a composite sensor consisting of an eddy current non-contact displacement sensor and an inertial velocity sensor is often used.

Q3: What does a vibration meter do?
A3: The vibration meter can easily measure the vibration parameters such as vibration, acceleration and velocity. The vibration tester can also be used to reliably and quantitatively evaluate the vibrations of rotating and reciprocating machines. It is widely used in mechanical design and manufacture, military, electric power, equipment management, transportation and environmental protection departments etc. The vibration meter provides these fields great convenience for on-line inspection and monitoring of machine equipment faults and aging signals, product quality control, vibration test measurement and vibration control.

Tips: What is the vibration meter mainly used to measure?

First, the vibration meter is used to measure vibration, which can be very convenient to measure vibration velocity, displacement value and acceleration. While the vibration speed reading remains constant, a vibration standard is built into the instrument and its indicating machine displays an alarm. The second is the detection of bearing state, which can be used to measure the BV value and BG value of bearing state. BV value represents the effective value of vibration speed, and BG value represents the acceleration of high-frequency vibration. When the bearing status reading remains unchanged, the instrument will automatically indicate the bearing alarm status according to the built-in inspection method.
