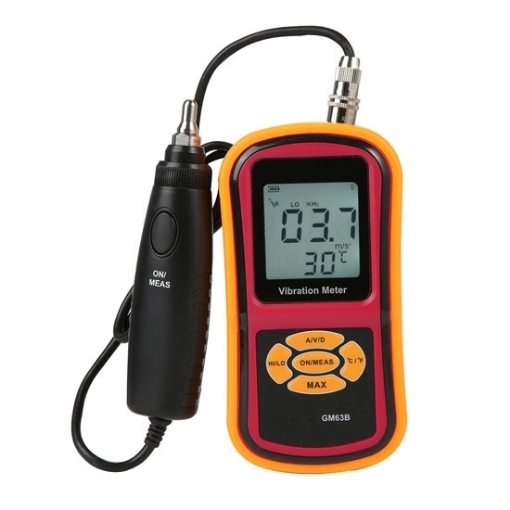

Portable Digital Vibration Meter

Portable digital vibration meter is used to test the vibration of industrial machines and equipment in a reliable and accurate way, with LCD display and multi-functions, directly displaying the result and condition. This handheld vibration tester helps you to check the equipment condition easily.
SKU: SISCO-VIBRO-GM63B
$383.97
i h
Free shipping
Delivery date: 7-12 days
Overview


Portable digital vibration meter is an idea tester for measuring vibration. The bearing vibration tester supports different vibration frequency options, which can quickly detect defects in motors, fans, pumps, compressors and machine tools.

Features

  • LCD display the measurement result and condition directly.
  • Acceleration, velocity and displacement can be measured.
  • Acceleration, velocity and displacement measurement.
  • Optional vibration frequency.
  • Use high sensitivity probe for precise measurement.
  • Two probes (short and long) offered, to meet different requirement of measurement.
  • Attached a magnetic sucker, in case of the measurement inconvenient by handheld.
  • Low battery indication, auto shutdown, and LCD backlight.
  • Max. value hold function.
  • Selectable temperature unit ℃/℉.

Portable digital vibration meter details

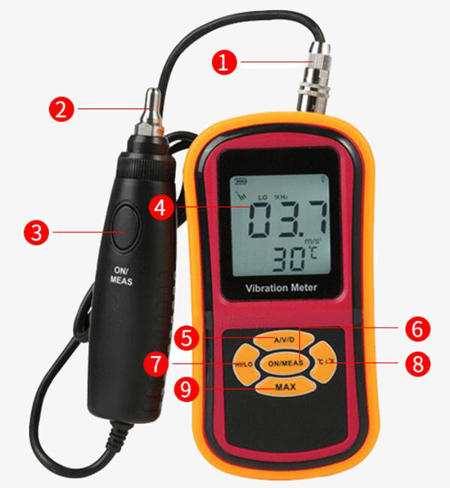

Handheld digital vibration meter details

  1. Handle attachment connector
  2. Probe (changeable length probe and magnetic suction cup)
  3. Power on and measurement key
  4. LCD display
  5. Measurement mode selection key
  6. Power on and measurement key
  7. (HI/LO) frequency characteristic selection key (only for acceleration)
  8. Temperature unit conversion key
  9. Maximum value locking key

Applications

sisco handheld digital vibration meter is suitable for routine testing the vibration of machinery and equipment, especially the vibration of rotating and reciprocating machinery. It can measure acceleration, velocity and displacement, which is widely used in mechanical manufacturing, electric metallurgy, general aviation etc.

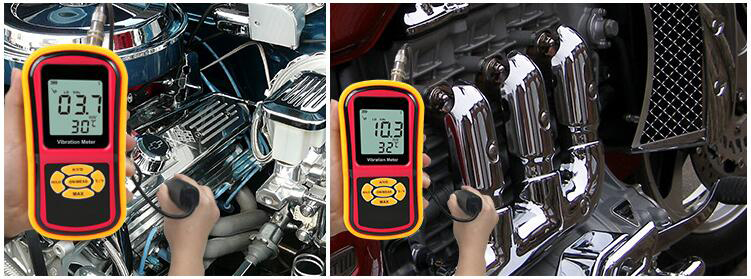

Portable digital vibration meter application

Specs
Model SISCO-GM63B
Measuring Range Acceleration 0.1~199.9m/s² (Peak)
Velocity 0.1~199.9mm/s (RMS)
Displacement 0.001~1.999 mm (Peak-Peak)
Accuracy ±5% ±2 digits
Measuring Frequency Acceleration 10Hz~1KHz (LO); 1KHz~15KHz (HI)
Velocity 10Hz~1KHz (LO)
Displacement 10Hz~1KHz (LO)
LCD Display 3 1/2 digit display
Vibration Pickup Piezoelectric ceramic accelerometer (Shear-type)
Power Supply 9V Alkaline battery (NOT included)
Functions Low battery indication (6.9V±0.2V)
Auto power off (Automatically shutdown with no operation for 60 seconds)
LCD backlight display (After 7 secends)
Max. value hold
Accessories Two probes (S and L) to meet different measurement requirements
A magnetic sucker in case of inconvenience for measurement by handheld
Operating Temperature 0~40℃
Humidity 30~90%RH
Weight 229g
Dimension 72x35x145mm

Dimension

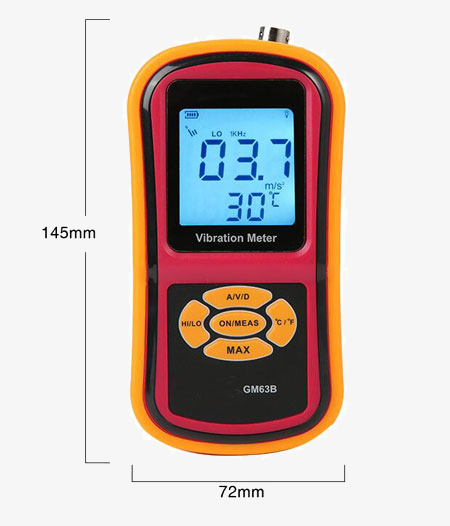

Portable vibration meter dimension

FAQs

Q1: What is a vibration meter?
A1:
Vibration meter is used to directly indicate the peak, peak-to-peak, mean value or root mean square value of vibration quantity such as displacement, velocity, acceleration and derivative of acceleration. The main parts of this vibration tester are integral differential circuit, amplifier circuit, voltage detector and meter head. The integral and differential circuit is used to complete the integral and differential operation between the above vibration quantities. Generally, the integral and differential operational amplifier can be used, and the low-pass filter and high-pass filter can be used respectively to complete the integral and differential operation. However, attention should be paid to their application frequency range when using such instruments for calculation. The vibration meter allows one to obtain only the total intensity of the vibration (the vibration level) and no other information.

Q2: How does a vibration meter work?
A2: Mechanical vibration is generally measured by electrical measurement. The basic principle of vibration meter is to convert mechanical quantity into electric quantity through vibration sensor, and then measure and analyze the electric quantity, so as to obtain various parameter values of the measured mechanical vibration quantity. In the field vibration test of turbine generator set, the vibration sensor commonly used in vibration tester has three types, they are eddy current non-contact displacement sensor to measure the relative vibration of rotating shaft, inertia speed sensor and voltage acceleration sensor to measure the vibration of bearing seat and foundation, cylinder structure and so on. In addition, in order to measure the absolute vibration of a rotating shaft, a composite sensor consisting of an eddy current non-contact displacement sensor and an inertial velocity sensor is often used.

Q3: What does a vibration meter do?
A3: The vibration meter can easily measure the vibration parameters such as vibration, acceleration and velocity. The vibration tester can also be used to reliably and quantitatively evaluate the vibrations of rotating and reciprocating machines. It is widely used in mechanical design and manufacture, military, electric power, equipment management, transportation and environmental protection departments etc. The vibration meter provides these fields great convenience for on-line inspection and monitoring of machine equipment faults and aging signals, product quality control, vibration test measurement and vibration control.

Tips: How to maintain the portable vibration meter?

  • The portable vibration tester is precision apparatus required to avoid a collision, impact, moisture, strong electricity, magnetic field, oil and dust.
  • If the tester is not in use for a long time, please remove the battery to avoid battery leakage and damage to the tester.
  • Do not disassemble the tester or change the interior.
  • Alcohol and diluent have a corrosive effect on the housing, especially on the LCD. So just wipe the housing gently with some clear water.
