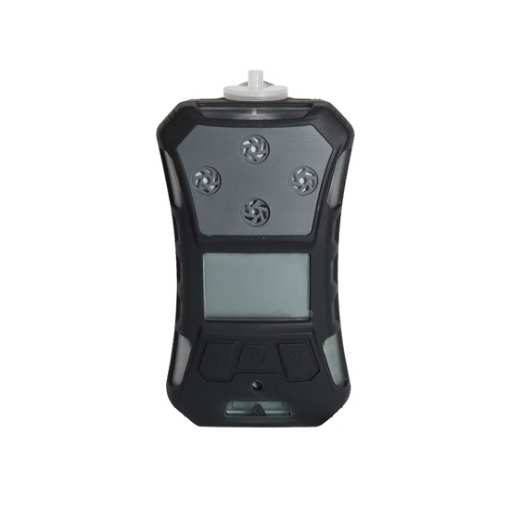

High precision portable explosion-proof gas detector is provided with 0 to 500 ppm, 0 to 1000 ppm, 0 to 2000 ppm, and 0 to 5000 ppm measurement range. It is a suction and diffusion dual-purpose device. When the air pump fails or is in a special emergency situation, the Hydrogen (H2) gas detector can automatically switch to the diffusion sampling method, thereby improving the protection to a new level.
The explosion-proof gas detector can detect hydrogen (H2) quickly and accurately.
-
sisco explosion-proof hydrogen (H2) detector has got IECEX, ATEX, explosion-proof certificates and the explosion-proof level reach Exia IICT4 Ga.
-
Real-time value, TWA, STEL, MAX, MIN multiple numerical display, and the screen can be automatically turned 180 degrees, which is convenient for viewing in special operating environments.
-
The H2 egas detector is equipped with a safety reminder function, sound and light vibration alarm function and high & low alarm latched function allowing the operator to better capture the sudden change of the gas concentration value.
Portable gas detector with built-in powerful sampling pump, fast detection speed.
- The explosion-proof gas detector can be connected 20m sampling tube externally, which is convenient for long-distance or confined space detection.
- With a water trap filter, the gas detector can effectively filter water, oil, dust and other impurities. It can also be used in harsh industrial environments such as coal mines and petroleum fields.
- Suction and diffusion dual-purpose device. Standard storage function, one-click data export, convenient for users to analyze.
- sisco portable hydrogen detector is available with a unique modifiable ID identification function, automatic detection functions, automatic prompts for voltage, and pump failure alarms.
- The gas detector supports each channel sensor to restore the factory setting separately and multi-language including English, Chinese and etc.
Details
Applications
| Model | GD400-H2 |
| Sampling method | Pump suction & diffusion dual-use type |
| Gas type | Hydrogen (H2) |
| Principle | Catalytic combustion, Electrochemistry |
| Measuring range | 0 to 500 ppm, 0 to 1000 ppm, 0 to 2000 ppm, 0 to 5000 ppm |
| Resolution | 0.1ppm (0-500 ppm) or 1ppm (0-1000/2000/5000 ppm) |
| Response time | ≤30 seconds |
| Precision | ≤±2%F.S except for special gases |
| Language | Chinese/English（More languages can be customized) |
| Automatically test and calibrate after power-on | Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m3 can be switched and displayed by one key, and the concentration value is automatically converted by the system |
| Display | Monochrome graphics (160 x96) , screen can be automatically flipped |
| Backlight | The backlight time can be manually set and will be turned on automatically when an alarm is issued |
| Data record | Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported, with data cable |
| Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function |
| Battery | 3.7V rechargeable lithium battery, battery capacity 2200mA |
| Working hours | More than 15 hours in continuous pumping mode |
| Charger | Travel charger with DC interface, charging time ≥ 4 hours |
| Explosion-proof grade | ll 2G Ex ia ll CT4 Ga |
| Certification (EU regulations) | ATEX |
| Protection grade | IP67 |
| Working temperature | -20℃~+50℃ |
| Humidity | 0～90%RH（no condensation） |
| Environmental pressure | 86～106Kpa |
| Size | 157*84.5*59.5mm (including back clip/water trap filter) (length * width * height) |
| Weight | 365g (including battery, belt clip and filter) |
Package List
- 1*Gas detector
- 1*12V/1A DC power adapter
- 1*USB cable
- 1*User manual
- 1*Warranty card
- 1*Filter
- 1*Aluminum suitcase
Gas Detector Catalog & User Manual
SISCOÂ Gas Detector Catalogue- SISCO GD200 Portable Gas Detector User Manual
- SISCO GD300 Online Fixed Gas Detector User Manual
- SISCO GD400 Explosion Proof Portable Gas Detector User Manual
- SISCO GD500Â Handheld Multi Gas Detector User Manual
- SISCO GD600 Multi Gas Analyzers User Manual
- SISCO Portable Gas Detector Communication Protocol V1.0
- SISCO Single Stage Pressure Regulator User Manual
Q1:Â What is a gas detector?
A1:Â A gas detector is an instrument for gas leakage concentration detection, including a portable gas detector, handheld gas detector, fixed gas detector, online gas detector, etc.
Q2:Â What does a gas detector detect?
A2:Â Combustible gases: Natural gas (methane), liquefied gas, coal gas (hydrogen), acetylene, pentane, alkynes, acetone, toluene, alcohols, hydrocarbons, light oil, etc.
Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, oxygen, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.
Q3:Â What is ppm of gas detector?
A3:Â Parts per million or "ppm" is often used as a fractional measure of concentration. For example, a methane (molecular) concentration of 2% means that 2 out of every 100 air molecules are methane. Likewise, a methane concentration of 2 ppm means that 2 out of every 1 million air molecules are methane.
Tips: How to maintain a portable H2 detector?
- The gas calibration has been done before leaving the factory. After installation, please do not change the components at will. If you need to replace it, you must re-calibrate it.
- The normal service life of a portable H2 detector is 3 years. Due to the difference in the use environment, its service life may be reduced, and inspection and maintenance should be carried out regularly every year.
- High-concentration hydrogen shock is forbidden in the parts to avoid poisoning the gas sensor and damaging the detector.
- During the use process, check whether the hydrogen gas detector is working normally, and the check period should be kept at 3 months at least.
