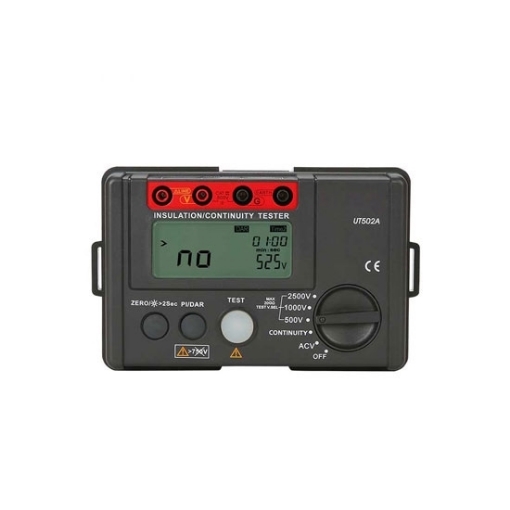

    Insulation Resistance Tester, 500V/1000V/2500V

    Insulation resistance tester is a megohmmeter with test voltages of 500V, 1kV and 2.5kV, and measuring insulation resistance up to 20.0 GΩ. High accuracy megger tester with backlight LCD display is capable of measuring AC Voltage, low resistance, PI and DAR, for testing transformers, motors, cables and other electrical equipment.
    SKU: SISCO-IRT-UT502A
    $295.46
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    sisco insulation resistance tester is a megohmmeter that offers insulation resistance test up to 20.0G ohm and test voltage of 500, 1000 and 2500 volts. Megger resistance tester is used for insulation resistance measurement in various kinds of electrical equipment such as transformer, electric motors, cables, switches, electrical appliance and so on.

    Insulation resistance tester external structure

    External structure

    1. EARTH: Insulation resistance test sampling jack
    2. G: Voltage measurement input negative jack
    3. V: Voltage measurement input positive jack
    4. LINE: High voltage output jack for insulation resistance tester
    5. Display LCD screen
    6. Backlit button
    7. Data hold button
    8. Insulation resistance measurement button
    9. Function button
    Insulation resistance tester with sturdy protective cover

    Megger resistance tester with sturdy protective cover

    When not measuring, the cover can be closed to protect the keys and screen of the insulation resistance tester.

    Insulation resistance tester with LCD display

    Insulation resistance tester with LCD backlight display

    The measurement data is displayed with functional symbols, the readings are clear at a glance and high-definition, and the data can be displayed in a backlight.

    Applications

    The insulation resistance tester is suitable for measuring the insulation resistance of various electrical equipment and insulating materials such as transformers, motors, cables, switches, electrical appliances, and for maintenance, testing and verification of various electrical equipment.

    Insulation resistance tester application

    Specs
    Model SISCO-IRT-UT502A
    Insulation Resistance (Ω) Test voltage/accuracy 500V/1000V/2500V 0% ~ 10%
    Measurement range/accuracy 500V 0.00 MΩ ~ 99.9 MΩ ±(3%+5)
    100 MΩ ~ 5.0 GΩ ±(5%+5)
    1000V 0.00 MΩ ~ 99.9 MΩ ±(3%+5)
    100 MΩ ~ 5.0 GΩ ±(5%+5)
    2500V 0.00 MΩ ~ 99.9 MΩ ±(3%+5)
    100 MΩ ~ 9.9 GΩ ±(5%+5)
    10.0 GΩ ~ 20.0 GΩ ±(10%+5)
    Load current 500V (R=500kΩ) 1mA 0% ~ 10%
    1000V (R=1MΩ) 1mA 0% ~ 10%
    2500V (R=1MΩ) 1mA 0% ~ 10%
    Short-circuit current <2mA
    Low Resistance (Ω) Range/accuracy 0.01 Ω ~ 200 Ω (about 5.0V/>200mA) ±(2%+3)
    AC Voltage (V) Test range/accuracy 30V ~ 600V (50Hz/60Hz) ±(2%+3)
    Features Display 1999 count
    DAR (60s/15s and 60s/30s) Yes
    PI Yes
    Auto ranging Yes
    Low battery indication Yes
    LCD backlight Yes
    Light alarm Yes
    Buzzer alarm Yes
    High voltage indication Yes
    Over load indication Yes
    Auto discharge Yes
    Test voltage secondary display Yes
    10 MΩ internal resistance test Yes
    General Power supply 1.5V battery (LR6) x 6
    Display size 70.6mm x 34mm
    Working condition 0℃ ~ 35℃, ≤75%RH
    Altitude ≤2000m
    Storage condition -20℃ ~ 60℃, ≤80%RH
    Product weight 500g
    Product size 150mm x 100mm x 71mm
    Standard accessories * Batteries, test leads, alligator clips, gallus

    Note: * Batteries are Not Included for air shippment.

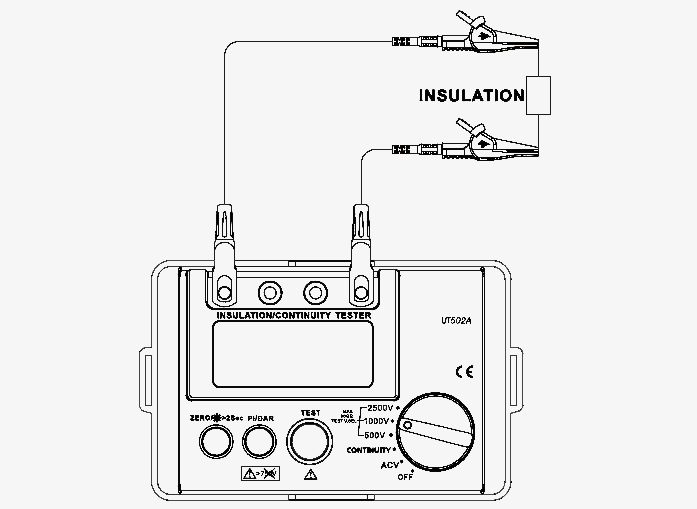

    Insulation Resistance Tester Wiring Diagram

    1000V megger insulation resistance test wiring diagram

    FAQs

    Q1: What is a insulation tester?
    A1:
    Insulation tester, also known as megohmmeter or meggers, are widely used to measure cables for generators, motors, power transformers, wiring, appliances and other electrical installations such as control, signal, communication and power ) insulation resistance. They are often used in routine maintenance procedures to indicate changes in the insulation resistance of a motor over months or years. Large changes in insulation resistance may indicate potential failures. Therefore, regular calibration of the megohmmeter is required to ensure that the meter itself has not changed over time.

    Q2: What is insulation resistance?
    A2: Insulation resistance is the DC resistance of the insulation under the specified conditions, that is, the DC voltage is applied to the dielectric, after a certain period of polarization, the resistance corresponding to the leakage current flowing through the dielectric is called insulation resistance. It is the most basic insulation index of electrical equipment and electrical circuit.

    Q3: How to measure insulation resistance?
    A3: 1. Connect all the lines according to the method measured by the insulation resistance tester. The connection between the measuring lead and the pipe is more suitable for the use of magnetic joints or clips, and the connection point must be free of rust.
    2. The measuring instrument should be a 500V/500MΩ (the error here cannot be greater than 10%) insulation tester. Turn the handle of the megohmmeter to reach the specified speed for 10 seconds. The resistance value indicated by the megohmmeter stably is the insulation resistance value of the insulating joint (flange), which is required to be greater than 10 megohms.

    Insulation resistance tester working principle

    The insulation resistance tester is the intelligent dual-display insulation resistance tester (two gears), which adopts the embedded industrial single-chip real-time operating system, and the digital analog pointer and the digital segment code display are perfectly combined. This series of meters has a variety of voltage output levels, large capacity, strong anti-interference, AC and DC dual-use, simple operation, various measurement results with anti-power failure function and so on. It is an ideal test instrument for measuring insulation resistance of large-capacity transformers, transformers, generators, high-voltage motors, power capacitors, power cables, arresters, etc.

    The insulation resistance tester mainly uses Ohm's law to measure the resistance by exciting the device or network under test with a voltage, and then measuring the current generated by the excitation. For example, these electrical testers apply much higher voltages when making resistance measurements than the ohmmeter function equipped on a digital multimeter (DMM). Megohmmeters typically use voltages ranging from 50V to as high as 5 kV; while typical DMMs typically operate at less than 10 V. For insulation testing, the resistance value that needs to be measured has a wide range, the upper limit can reach 10TΩ, and the required voltage is higher.
