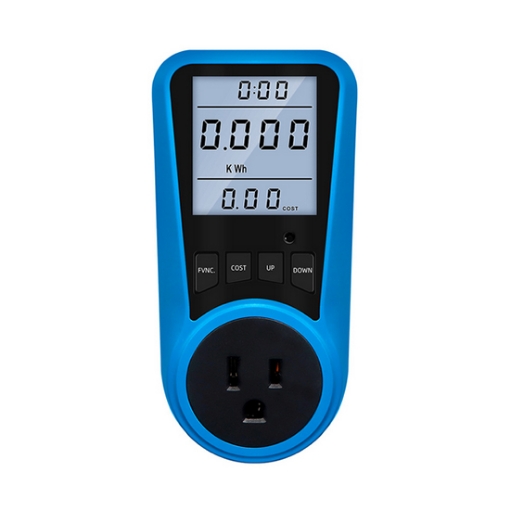

The electricity consumption meter is a monitoring and testing instrument that determines the power consumption of connected devices and the cost of the electricity consumed. sisco electricity usage monitor measures voltage, frequency, current, power factor, wattage, minimum and maximum power, records cumulative kWh, time, date and cost of electricity.

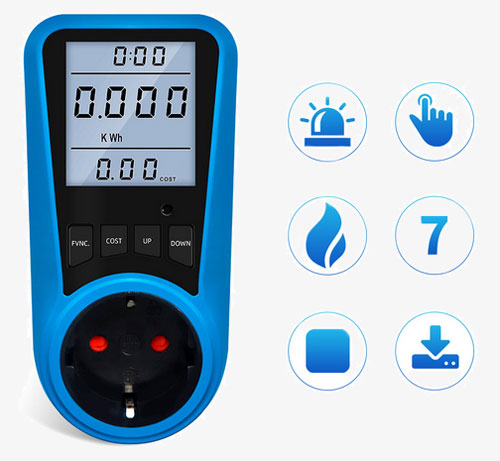

The plug-in power meter offers a sensitive response and clear readings
- 7 Display modes, transmitted by pressing the "Function" button.
- Clear LCD display, easy to read, with overload warning.
- The electricity usage monitor has a built-in 3.6V rechargeable battery to store power and save settings.
- sisco digital watt meter is a monitoring and testing instrument which determines the cost of power consumption and power consumption of connected devices.
- Plug in watt meter can be used to measure voltage, frequency, current, power factor, wattage, minimum and maximum power, record accumulated kWh, time, date and electricity bill.

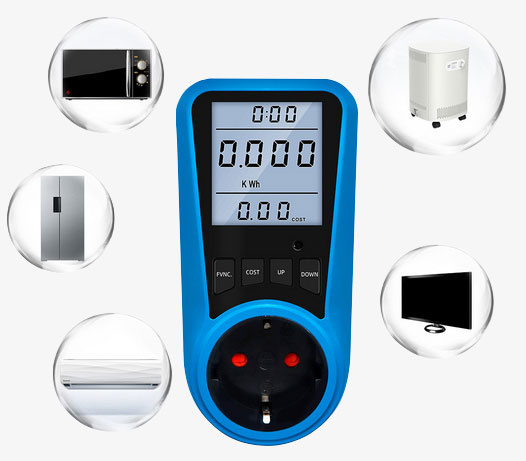

Application
A plug-in power meter is a device that can be used to measure the electricity consumption of any electronic device or appliance that is plugged into a power outlet. The sisco plug power meter is suitable for various charging devices, such as refrigerators, mobile phones, iPads, computer heaters, electric blankets, etc.
- Model: SISCO-PW-VA086
- Working Voltage: 230V 50 Hz for EU/UK/AU plugs, 120V 60 Hz for US plugs
- Working Current: Max. 16 A
- Wide Voltage Range: 230V-250V for EU/UK/AU plugs, 110V to 130V for US plugs
- Timing Display Range: 0 seconds - 9999 days
- Wattage Display: 0W - 3680W
- Voltage Display Range: 0V-9999V
- Current Display: 0.0-16.0 A
- Frequency Display: 0 Hz-9999 Hz
- Minimum Wattage Display Range: 0.0W-3680W
- Maximum Wattage Display Range: 0.0W-3680W
- Price Display Range: 0.000kWh-99.99kWh
- Total kWh and Cost Display: 0.000kWh-9999kWh
- Weight: 240g

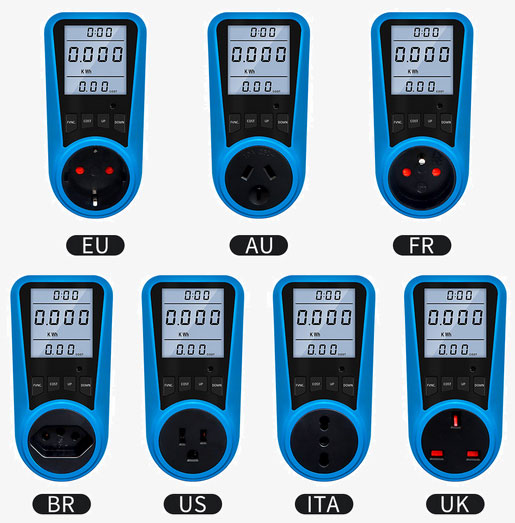

Socket Types
Q1: What is a plug-in power meter?
A1: A plug-in power meter is a device that can be plugged into an electrical outlet to measure the power consumption of the devices or appliances plugged into the outlet.
Q2: How accurate are plug-in power meters?
A2: The accuracy of plug-in power meters can vary depending on the model and the manufacturer, but most modern power meters have a high degree of accuracy, typically within 1-2%.
Q3: Can plug-in power meters be used with all types of appliances?
A3: Plug-in power meters can be used with most types of appliances, but some high-powered devices such as air conditioners or electric heaters may exceed the capacity of certain models of power meters, so it's important to check the specifications before use.
Tips:Â What is a power meter and what is its function?
A power meter is an electronic device that is used to measure the electrical power consumed by a device or system. It is commonly used to measure the power consumption of electrical appliances and equipment, as well as to monitor the power output of generators and other power sources. Its primary function is to provide accurate measurements of electrical power, which can be used to optimize energy usage and improve overall efficiency.
