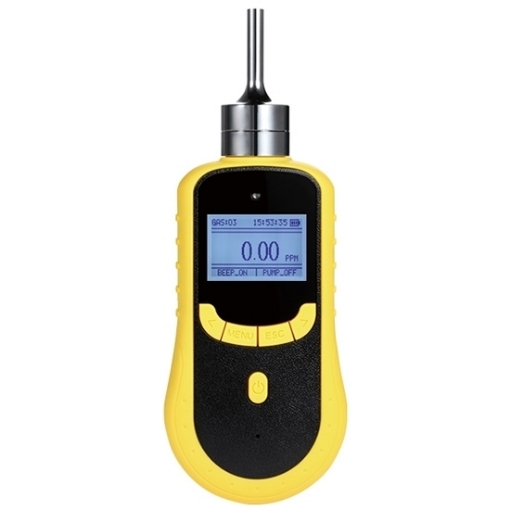

Portable gas detector provides phosphine (PH3) monitoring with high accuracy sensor, LCD display, easy readout, compact design, convenient to carry. 0 to 5/10/20/50/100/500/1000 ppm measurement range for selection, Handheld PH3 detector is widely used for food rush, pest control, garden fruit trees, etc.
Gas detectors can detect phosphine (PH3) quickly
- sisco portable phosphine (PH3) gas detector has an LCD dot matrix display to directly read out the gas type, unit, concentration, local time, etc.
- English/Chinese operations are supported.
- Gas concentration unit PPM and mg/m3 can be shifted quickly.
- Built-in micro-sampling pump, 10 grades of suction are available.
Explosion-proof certification.
USB interface to transfer data at high speed
- The handheld phosphine detector can download and print the stored data (optional).
- There is no need for personnel to manually record data in real-time, and the data is automatically stored in the instrument.
- Historical data can be viewed on the instrument or downloaded to a computer.
- USB interface, fast and convenient charging.
Details
Applications
sisco handheld phosphine detector is used to detect and control the residual amount of phosphine in fumigation gas and is widely used in the fields of food rush, pest control, garden fruit trees, etc.
Â
| Model | GD200-PH3 |
| Sampling Method | Pumping suction, flow rate can be up to 750ml/min |
| Detection Principle | Electrochemistry |
| Gas | Phosphine (PH3) |
| Range (Optional)* | 0 to 5ppm, 0 to 10ppm, 0 to 20ppm, 0 to 50ppm, 0 to 100ppm, 0 to 500ppm, 0 to 1000ppm, 0 to 2000ppm, 0-3000ppm |
| Resolution | 0.01ppm (0-5/10/20/50ppm), 0.1ppm (0-100ppm), 1ppm (0-500/1000/2000/3000ppm) |
| Accuracy | ≤±3% F.S. |
| Response Time | ≤10s |
| Repeatability | ≤±1% |
| Recovery Time | ≤10s |
| Linearity Error | ≤±1% |
| Zero Shift | ≤±1% (F.S./year) |
| Data Logging (Optional Function) | High speed data transmission by USB, available for data downloading and printing (The built-in IC card has about 2G memory, which can record 100,000 sets of data.) |
| Alarms | Sound, light and vibration |
| Display | LCD dot matrix display |
| Language | Chinese/English |
| Battery | 3.7V rechargeable lithium battery, 3.7 Watt (Charger included: Input AC 100-240V 50/60Hz with optional USA, Europe or UK plug) |
| Operating Time | 100h (Pump off) |
| Communication | Mini USB interface supports standard MODBUS communication protocol |
| Explosion-proof Grade | â…¡ 2G Ex ia â…¡ CT4 Ga |
| Case Material | ABS+PC |
| Protection Grade | IP66 |
| Certification | CE, ATEX (Standard: EN IEC 60079-0:2018, EN 60079-1:2014) |
| Operating Temperature | -20℃~50℃ |
| Operating Humidity | 0~95%RH (non-condensing) |
| Operating Pressure | 0.8~1.2bar |
| Dimension | 205*75*32mm |
| Weight | 300g |
| Warranty | 12 months |
| Extension Probe | About 480mm (Total Length), About 300mm (Probe Head) |
| Accessories (Optional) | Calibration kit - gas pressure regulator (calibration gas cylinder NOT included)
|
Note:
* If you need a phosphine gas detector with other measuring ranges unlisted in the above table, please inform us of your operating environment to help you choose an appropriate one for your application.
* Other portable gas detectors are also provided, you can refer to SISCO Gas Detector Catalog to get the specific gas type and measurement range. If you have any questions, please feel free to contact us.
Gas Detector Catalog & User Manual
SISCO Gas Detector Catalogue- SISCO GD200 Portable Gas Detector User Manual
- SISCO GD300 Online Fixed Gas Detector User Manual
- SISCO GD400 Explosion Proof Portable Gas Detector User Manual
- SISCO GD500 Handheld Multi Gas Detector User Manual
- SISCO GD600 Multi Gas Analyzers User Manual
- SISCO Gas Detector Communication Protocol V1.0
- SISCO Single Stage Pressure Regulator User Manual
- SISCO Gas Detector Data Downloading Operation Instruction
Gas Detector Software
Q1:Â What is a gas detector?
A1:Â A gas detector is an instrument for gas leakage concentration detection, including a portable gas detector, handheld gas detector, fixed gas detector, online gas detector, etc.
Q2:Â What does a gas detector detect?
A2:Â Combustible gases: Natural gas (methane), liquefied gas, coal gas (hydrogen), acetylene, pentane, alkynes, acetone, toluene, alcohols, hydrocarbons, light oil, etc.
Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, oxygen, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.
Q3:Â What is ppm of gas detector?
A3:Â Parts per million or "ppm" is often used as a fractional measure of concentration. For example, a methane (molecular) concentration of 2% means that 2 out of every 100 air molecules are methane. Likewise, a methane concentration of 2 ppm means that 2 out of every 1 million air molecules are methane.
Tips: What is phosphine (PH3)?
Phosphine is an inorganic compound with the chemical formula PH3. It is a colorless, highly toxic, flammable liquefied compressed gas stored in cylinders. Pure phosphine gas is colorless and odorless, but when metal phosphide produces phosphine gas, it often has an odor. If encountered in trace amounts of other phosphorus hydrides such as ethyl phosphine, it will cause spontaneous combustion. Inhalation of phosphine can affect the human heart, respiratory system, kidneys, gastrointestinal tract, nervous system and liver, so a phosphine gas detector is necessary.
