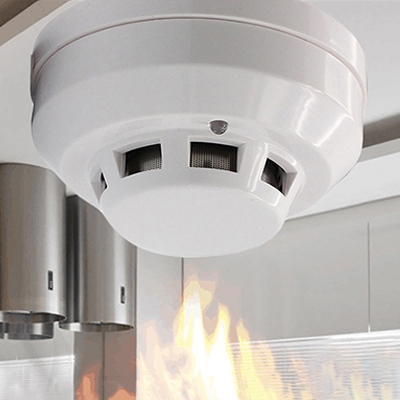

The wired smoke detector with wifi function adopts an advanced SMI manufacturing process, which ensures the stability, durability, sensitivity and service life of the product. The wired fire alarm has an alarm function, when the smoke around the detector reaches the set alarm concentration, the detector quickly reports the alarm.

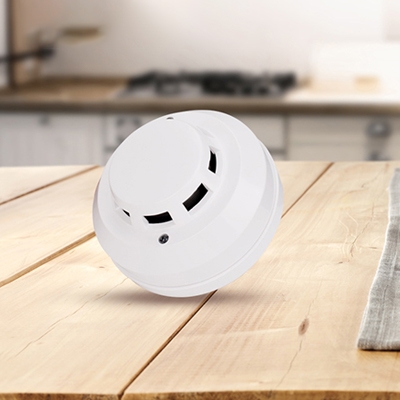

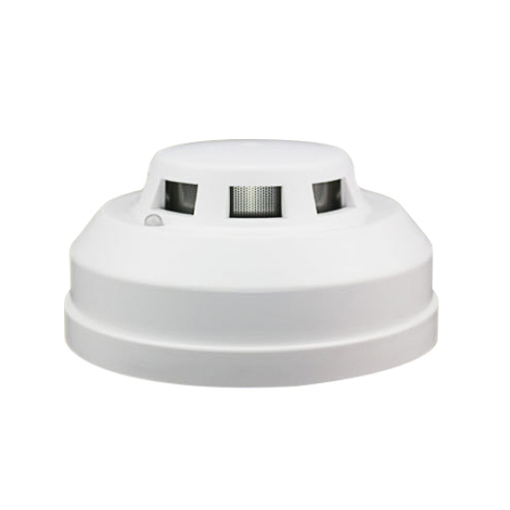

Wifi smoke detector, wired fire alarm details
- Sensor: Infrared light sensor
- Operating temperature: -10°C to 50°C
- Operating humidity: ≤95%RH
- Detection angle: 360°
- Detection area: 20 square meters
- Alarm mode: Network output, LED indication alarm
Wifi smoke detector, wired fire alarm features
- Automatic reset
- High sensitivity sensors
- Wired connection
- Network output/LED indication alarm
- Alarm output N.C/N.O optional
- Manufactured by SMT process with high stability
- Unique structural design, dust-proof, insect-proof, and interference-proof
Applications
Smoke detectors are widely used in many places, such as hotels, shopping malls, residences, hospitals, schools, libraries, computer rooms, factories, companies and so on.
| Model | SISCO-BRJ-301L |
| Working Voltage | DC 9V-35V   |
| Working Current | ≤2mA (DC 12V) |
| Alarm Current | ≤10mA (DC 12V) |
| Alarm Indication | LED indication alarm |
| Sensor | Infrared light sensor |
| Working Temperature | -10°C~50°C |
| WorkingHumidity | ≤95%RH |
| Alarm Output  | Normally open/closed, contact DC28V, 100mA |
| Sensitivity  | 2.06%ft±1.3%ft |
| Installation  | Ceiling |
| Product Size    | 104*50mm |
| Weight | 0.5kg |
Q1: What is a smoke detector?
A1: A smoke detector is a device that senses the presence of smoke or other potentially harmful gases in the air and emits a loud alarm to alert people to a potential fire or danger.
Q2: How does a smoke detector work?
A2: Smoke detectors typically use one of two primary technologies: ionization or photoelectric. Ionization detectors use a small amount of radioactive material to ionize the air between two electrically charged plates, while photoelectric detectors use a light beam that is scattered by smoke particles.
Q3: Are there smart smoke detectors available?
A3: Yes, smart smoke detectors are available that can connect to your Wi-Fi network and send alerts to your smartphone. They often offer remote monitoring and integration with other smart home devices.
Tips: How to install a wired wifi smoke detector?
Generally, it needs to be installed in the central position of the ceiling. If mounted on a wall, the distance from the ceiling should be kept at least 15cm.
