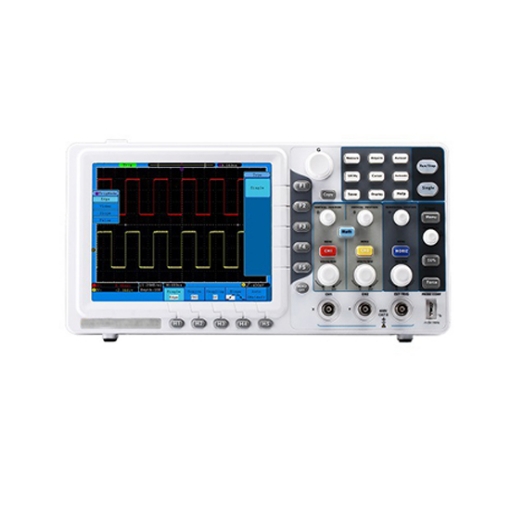

100 MHz Digital Storage Oscilloscope, 2 Channel, 1 GSa/s

100 MHz 2-channel digital storage oscilloscope with 1 GSa/s sampling rate, 1 GSa/s sampling rate. The analog storage oscilloscope is a kind of digital equipment with a storage function, which adopts a digital circuit for analog/digital conversion, and realizes the memory of the signal before triggering through the memory.

SKU: SISCO-DSCO-100

$841.59

Qty:

i h

Free shipping

Delivery date: 7-12 days

Overview
Specs
FAQs
Warranty
Reviews

Overview

High-accuracy digital storage oscilloscope with 100 MHz bandwidth, 1 GSa/s sampling rate, 8 bits vertical resolution. DSO oscilloscope has unique advantages such as waveform triggering, storage, display, measurement, and waveform data analysis and processing.

Digital storage oscilloscope interface details

8-inch high-resolution LCD
Vertical control area
Function key area
Trigger area
Horizontal control area
Function selection button

Support SCPI

Trigger output or pass/fail output port
Stowable handle
Switch
Main power switch
Power socket
Optimized cooling holes
Ground port
Tripod (adjustable oscilloscope tilt angle)

Dimension Unit (mm)

Dimension of digital storage oscilloscope

Application

The main application of a SISCO oscilloscope is used to display the waveforms of signals. It can be used in many fields such as automotive test, signal analysis, electrical, transducer test and measurement, electrical equipment design, medical equipment testing field, etc.

Application of oscilloscope

Specs

Model	SISCO-EDS-102C
Bandwidth	100 MHz
Channel	2+ external trigger
Sample rate	1 GSa/s
Acquisition model	Sample, Peak detect
Record length	10M
Display	8 inch LCD
Waveform refresh rate	10000 wfrms/s
Input coupling	DC, AC, Ground
Probe attenuation	1X, 10X, 100X, 1000X
Input Impedance	1MΩ ± 2%, in parallel with 10pF ± 5pF
Max. input voltage	400V (DC+AC, PK - PK)
Bandwidth limit(typical)	20MHz / Full bandwidth
Sampling rate range	2ns/div ~ 100s/div,step by 1-2-5
Vertical Resolution	8 bits
Sensitivity Resolution	2mV/div~10V/div
Low Frequency（-3db）	≥10 Hz (at input, AC coupling)
Rise time (at input, Typical)	≤5.8ns
Trigger type	Edge
Trigger model	Auto, Normal, single
Trigger level range	±6 div from the screen center
Automatic measurement	Vpp, Vavg, Vrms, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, DelayA→B , DelayA→B
Cursor measurement	ΔV, ΔT, ΔT&ΔV between cursors,auto cursor
Dimension	34015570mm
Weight	1.8kg

Accessories

Power cable
USB cable
Probe
Probe Adjust
Quick Guide

FAQs

Q1: Can an oscilloscope measure DC voltage?
A1: DC voltage can be measured using either an oscilloscope or a digital multimeter. Each piece of testing equipment has its advantages and disadvantages.

Q2: What is the maximum frequency for the oscilloscope?
A2: System bandwidth determines an oscilloscope's fundamental ability to measure an analog signal - the maximum frequency range that it can accurately measure. Entry-level scopes will often have a maximum bandwidth of 100 MHz. They can accurately (within 2%) show the amplitudes of sine-wave signals up to 20 MHz.

Q3: What is the record length for an oscilloscope?
A3: The record length, measured in points or samples, divided by the sample rate (in Samples/second) specifies the total time (in seconds) that is acquired. Example: With a record length of 1 M points and a sample rate of 250 MSa/sec, the oscilloscope will capture a signal of 4 msec in length.

Tips: What is a digital storage oscilloscope used for?

The input analogue signal is sampled and then converted into a digital record of the amplitude of the signal at each sample time. The sampling frequency should be not less than the Nyquist rate to avoid aliasing. These digital values are then turned back into an analogue signal for display on a cathode ray tube (CRT), or transformed as needed for the various possible types of output—liquid crystal display, chart recorder, plotter or network interface.

Warranty

Thank you for buying industrial test and measurement equipment on sisco.com, all products sold by sisco and the partner cover a 12 months warranty, effective from the date of receiving the products.

What is covered?

sisco is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.

What is not covered?

Product purchased from anyone other than a sisco store or a sisco authorized reseller.
Expendable parts.
Routine cleaning or normal cosmetic and mechanical wear.
Damage from misuse, abuse or neglect.
Damage from use of parts other than sisco approved.
Damage from use outside the product’s usage or storage parameters.
Damage from use of parts not sold by sisco.
Damage from modification or incorporation into other products.
Damage from repair or replacement of warranted parts by a service provider other than a sisco authorized service provider.
Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.

1 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5

From: Linda | Date: 2/15/2023 6:25 PM

Great oscilloscope!

The 100MHz digital oscilloscope arrived on time last week and everything seems to work as advertised. The user interface seems pretty intuitive and the hardware buttons and knobs have an OK feel to them. So far it works well.
