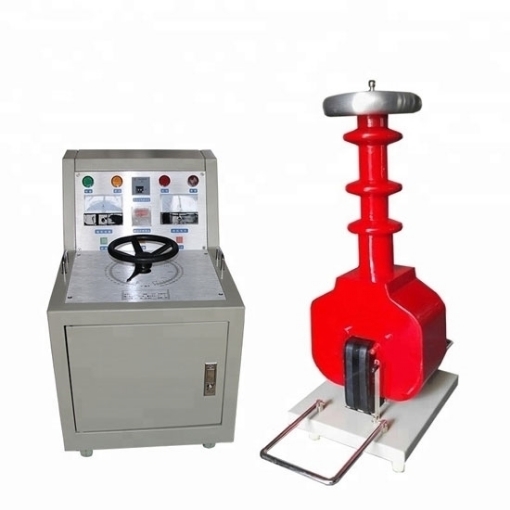

50 kV 10 kVA AC DC Hipot Tester

10 kVA AC DC hipot tester capacity 10 kVA, input voltage 110V/120V/220V, output 50 kV, 1 phase, optional box or desktop controller, manual, automatic and electric control, other capacities can be customized. The sisico hipot tester is loved by high voltage testers for its ease and flexibility.
SKU: SISCO-HTGTB-1050
*
*
*
$5,476.58
i h
Free shipping
Delivery date: 7-12 days
Overview


Dry AC/DC hipot tester capacity 10 kVA, output 50 kV, suitable for electric power system and various electric power user's field testing of various electrical equipment by insulation performance test.

Hipot tester detail

The coil is formed by vacuum-casting epoxy resin

  • The magnetic flux leakage is effectively weakened, and the dielectric strength and moisture resistance are improved.
  • The new type of coil epoxy vacuum casting and CD-type iron core technology has a compact structure and no oil leakage

Top of hipot tester

Small size, light weight and compact structure

  • Good safety and reliability, beautiful appearance.
  • Simple and intuitive wiring, easy to use.

Application

sisco hipot tester has a small size, lightweight, compact structure, full functionality, easy to use, and other characteristics. Hipot tester performance can meet the user's various special requirements sector, a variety of high-voltage electrical equipment, electrical components, and insulation materials for frequency withstand voltage test and DC leakage test, is an essential instrument in the high-voltage test.

Hipot tester applications

Specs
Model SISCO-HTGTB-1050
Capacity 10 kVA
Input Voltage 110V/ 120V/ 220V
Frequency 50Hz/ 60Hz
Output Voltage 50 kV
Current 200 mA
DC Output 70 kV
Phase 1 Phase
Weight (Transformer + Control Box) 107 kg
Cooling Method Dry
Effeciency 90%
Impedance Voltage <12%
Surface Temperature Raising < 55°C
No Load Current < 4%
Output Voltage Waveform Sine Wave
Usage AC DC Hipot Tester
Warranty 12 Months
Temperature Environment 0~40°C
Altitude <2000m
Relative Humidity <85%

Note: AC leakage current meter is not provided.


Wiring Diagram

Hipot tester AC wiring diagram

Hipot tester DC wiring diagram


Packing List

NO. Description Quantity
1 Hipot Test Set (1 Control Box + 10 kVA Dry Transformer) 1
2 Power Supply Cable 1
3 Earth Cable 1
4 Connecting Line 1
5 Fuse 3
6 Rectifying Diode 1
7 User Manual 1
FAQs

Q1: What is hipot tester?
A1: AC-DC test transformer, using advanced production equipment, using the coil winding epoxy vacuum casting and CD-type core of the new technology, and similar products compared to oil-immersed transformers, significantly reduce the weight, reduce the volume, in quality to improve the insulation strength and resistance to moisture degree, and effectively weaken the leakage of magnetic and greatly enhance the transformer to withstand the impact of test short-circuit current capacity.

Q2: Is high voltage testing destructive?
A2: Hipot (or high potential testing) is a non-destructive test that goes by many names: overvoltage testing, dielectric breakdown testing, dielectric withstand testing, or insulation resistance testing. Some of all of these tests are designed to make sure that the insulation materials used in your motor are doing their job.

Q3: What is the difference between the hipot and the Megger?
A3: Both instruments apply a relatively high voltage to the insulator and absorb leakage current through the insulator commensurate with its insulation characteristics and condition. However, the megohmmeter gives the operator a measured value, while the hipot acts.

Tips: How does hipot tester work?

Put a voltage higher than normal operation on the insulator of the equipment under test for a specified period of time, the voltage added to it will only produce a small leakage current, then the insulation is better. Program-controlled power supply modules, signal acquisition, and conditioning modules, and computer control system are three modules that make up the test system. Select the 2 indicators of the hipot tester: the value of the maximum output voltage and the value of the maximum alarm current.
