    100 kV 5 kVA AC DC Hipot Tester

    100 kV AC DC hipot tester adopts the new technology of epoxy vacuum casting of coil and CD type core, with a capacity of 5 kVA, equipped with control box, the input voltage can be 110V, 120V, and 220V, can be widely used in electric power, water conservancy, chemical, railway, and other industries and laboratories.
    SKU: SISCO-HTGTB-5100
    *
    *
    *
    $6,292.28
    i h
    Free shipping
    Delivery date: 7-12 days
    Overview

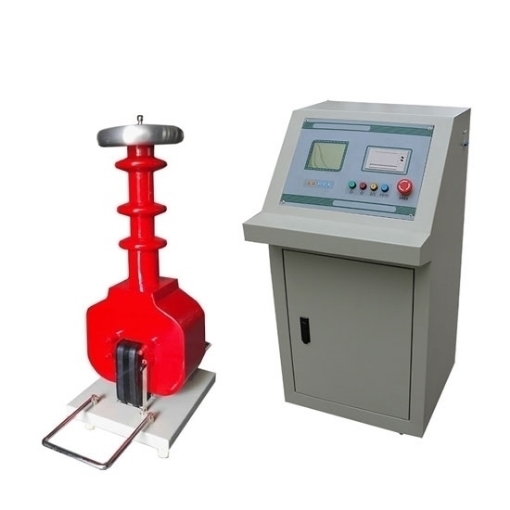

    A portable AC DC hipot tester with a control box, the capacity of 5 kVA, and high voltage output of 100 kV, with the advantages of no oil leakage, easy to use, and carry, is the ideal equipment for testing the insulation performance of various electrical equipment.

    Hipot tester detail

    The coil is formed by vacuum-casting epoxy resin

    • The magnetic flux leakage is effectively weakened, and the dielectric strength and moisture resistance are improved.
    • The new type of coil epoxy vacuum casting and CD-type iron core technology has a compact structure and no oil leakage.

    Top of hipot tester

    Small size, light weight and compact structure

    • Good safety and reliability, beautiful appearance.
    • Simple and intuitive wiring, easy to use.

    Application

    sisco hipot tester has a small size, lightweight, compact structure, full functionality, easy to use, and other characteristics. Hipot tester performance can meet the user's various special requirements sector, a variety of high-voltage electrical equipment, electrical components, and insulation materials for frequency withstand voltage test and DC leakage test, is an essential instrument in the high-voltage test.

    Hipot tester applications

    Specs
    Model SISCO-HTGTB-5100
    Capacity 5 kVA
    Input Voltage 110V/ 120V/ 220V
    Frequency 50Hz/ 60Hz
    Output Voltage 100 kV
    Current 50 mA
    DC Output 140 kV
    Phase 1 Phase
    Weight (Transformer+Control Box) 90 kg
    Cooling Method Dry
    Effeciency 90%
    Impedance Voltage <12%
    Surface Temperature Raising < 55°C
    No Load Current < 4%
    Output Voltage Waveform Sine Wave
    Usage AC DC Hipot Tester
    Warranty 12 Months
    Temperature environment 0~40°C
    Altitude <2000m
    Relative Humidity <85%

    Note: AC leakage current meter is not provided.


    Wiring Diagram

    Hipot tester AC wiring diagram

    Hipot tester DC wiring diagram


    Packing List

    NO. Description Quantity
    1 Hipot Test Set (1 Control Box + 5 kVA Dry Transformer) 1
    2 Power Supply Cable 1
    3 Earth Cable 1
    4 Connecting Line 1
    5 Fuse 3
    6 Rectifying Diode 1
    7 User Manual 1
    FAQs

    Q1: What is hipot tester?
    A1: AC-DC test transformer, using advanced production equipment, using the coil winding epoxy vacuum casting and CD-type core of the new technology, and similar products compared to oil-immersed transformers, significantly reduce the weight, reduce the volume, in quality to improve the insulation strength and resistance to moisture degree, and effectively weaken the leakage of magnetic and greatly enhance the transformer to withstand the impact of test short-circuit current capacity.

    Q2: Is high voltage testing destructive?
    A2: Hipot (or high potential testing) is a non-destructive test that goes by many names: overvoltage testing, dielectric breakdown testing, dielectric withstand testing, or insulation resistance testing. Some of all of these tests are designed to make sure that the insulation materials used in your motor are doing their job.

    Q3: What is the difference between the hipot and the Megger?
    A3: Both instruments apply a relatively high voltage to the insulator and absorb leakage current through the insulator commensurate with its insulation characteristics and condition. However, the megohmmeter gives the operator a measured value, while the hipot acts.

    Tips: What is the difference between AC and DC hipot testing?

    DC Hipot testing can often be substituted for AC Hipot testing. The optimal voltage for DC hipot testing is usually 1.414 times higher than the AC test voltage. A product tested at 1500V AC will be tested at 2121V DC.
