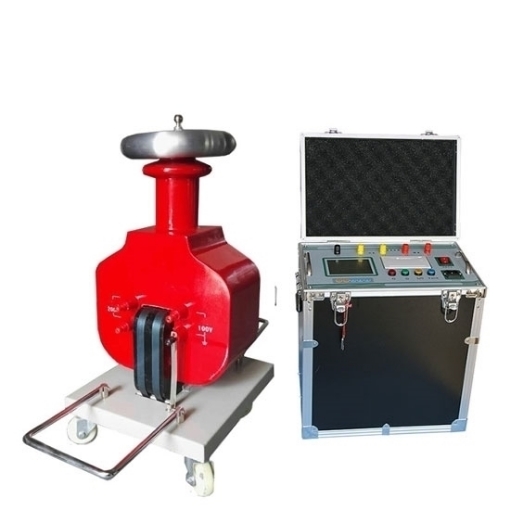

    50 kV 5 kVA AC DC Hipot Tester

    Wholesale price AC DC hipot tester, high voltage output 50 kV, 5 kVA capacity, single phase, various control boxes available, hipot tester coils are vacuum cast in epoxy resin, effectively weakening magnetic leakage and improving insulation strength and moisture resistance.
    SKU: SISCO-HTGTB-550
    *
    *
    *
    $4,207.69
    i h
    Free shipping
    Delivery date: 7-12 days
    Overview

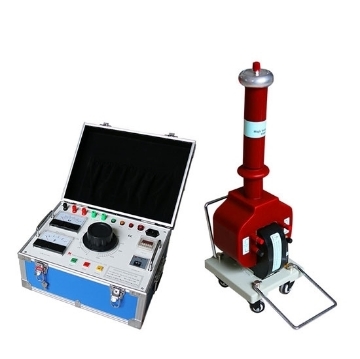

    Portable 50 kV hipot tester for sale, the operation box is simple to use, compact, reliable, easy to maintain, is the ideal control equipment for outdoor high-voltage test.

    Hipot tester detail

    The coil is formed by vacuum-casting epoxy resin

    • The magnetic flux leakage is effectively weakened, and the dielectric strength and moisture resistance are improved.
    • The new type of coil epoxy vacuum casting and CD-type iron core technology has a compact structure and no oil leakage.

    Top of hipot tester

    Small size, light weight and compact structure

    • Good safety and reliability, beautiful appearance.
    • Simple and intuitive wiring, easy to use.

    Application

    sisco hipot tester has a small size, lightweight, compact structure, full functionality, easy to use, and other characteristics. Hipot tester performance can meet the user's various special requirements sector, a variety of high-voltage electrical equipment, electrical components, and insulation materials for frequency withstand voltage test and DC leakage test, is an essential instrument in the high-voltage test.

    Hipot tester applications

    Specs
    Model SISCO-HTGTB-550
    Capacity 5 kVA
    Input Voltage 110V/ 120V/ 220V
    Frequency 50Hz/ 60Hz
    Output Voltage 50 kV
    Current 100 mA
    DC Output 70 kV
    Phase 1 Phase
    Weight (Transformer+Control Box) 87 kg
    Cooling Method Dry
    Effeciency 90%
    Impedance Voltage <12%
    Surface Temperature Raising < 55°C
    No Load Current < 4%
    Output Voltage Waveform Sine Wave
    Usage AC DC Hipot Tester
    Warranty 12 Months
    Temperature environment 0~40°C
    Altitude <2000m
    Relative Humidity <85%

    Note: AC leakage current meter is not provided.


    Wiring Diagram

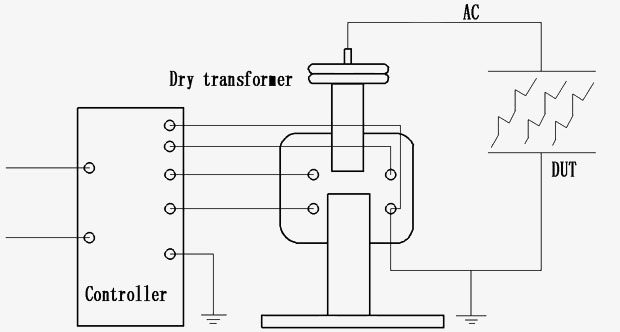

    Hipot tester AC wiring diagram

    Hipot tester DC wiring diagram


    Packing List

    NO. Description Quantity
    1 Hipot Test Set (1 Control Box + 5 kVA Dry Transformer) 1
    2 Power Supply Cable 1
    3 Earth Cable 1
    4 Connecting Line 1
    5 Fuse 3
    6 Rectifying Diode 1
    7 User Manual 1
    FAQs

    Q1: What is hipot tester?
    A1: AC-DC test transformer, using advanced production equipment, using the coil winding epoxy vacuum casting and CD-type core of the new technology, and similar products compared to oil-immersed transformers, significantly reduce the weight, reduce the volume, in quality to improve the insulation strength and resistance to moisture degree, and effectively weaken the leakage of magnetic and greatly enhance the transformer to withstand the impact of test short-circuit current capacity.

    Q2: Is high voltage testing destructive?
    A2: Hipot (or high potential testing) is a non-destructive test that goes by many names: overvoltage testing, dielectric breakdown testing, dielectric withstand testing, or insulation resistance testing. Some of all of these tests are designed to make sure that the insulation materials used in your motor are doing their job.

    Q3: What is the difference between the hipot and the Megger?
    A3: Both instruments apply a relatively high voltage to the insulator and absorb leakage current through the insulator commensurate with its insulation characteristics and condition. However, the megohmmeter gives the operator a measured value, while the hipot acts.

    Tips: What tests can sisco Hipot Tester be used for?

    1. Insulation resistance test

    Insulation resistance is the most basic insulation index of electrical equipment and circuits , the DC voltage applied to the dielectric, after a period of time after the end of the polarization process, the resistance corresponding to the leakage current flowing through the dielectric is called insulation resistance, the use of DC high-voltage generator to the material under test when the pressure, the current on the material under test will not instantly reach a stable value, but there is a decay process, flowing through a larger charging current, the The high voltage test instrument (DC high voltage generator) is followed by a longer period of slowly decreasing absorption current, eventually reaching a more stable conductive current. The higher the measured resistance value, the longer it takes to reach equilibrium. Therefore, in order to read the measured resistance value correctly during the measurement process, the value should be read after its stabilization.

    2. DC withstand voltage and leakage test

    In order to insulate well, the leakage current under the action of DC voltage is very small, at the same time, at the same DC voltage, the current through the insulation with the extension and decrease, in the case of good insulation, with the increase of the applied DC voltage, due to the speed of ion movement, leakage current increases, leakage current and the increase of the applied voltage is linear, the rise is very small.

    3. Cable DC withstand voltage test

    After the test voltage is three times the rated voltage of the cable, under the specified test voltage, record the leakage current, check the DC high-voltage generator with a high-voltage megohmmeter withstand voltage, the use of conventional connection, a phase connected to a phase with withstand voltage, a phase with a voltage device, the other two phases connected to ground, three-phase resistance for three times.

    Warranty

    Thank you for buying industrial test and measurement equipment on sisco.com, all products sold by sisco and the partner cover a 12 months warranty, effective from the date of receiving the products.


    What is covered?

    sisco is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.


    What is not covered?

    • Product purchased from anyone other than a sisco store or a sisco authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than sisco approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by sisco.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a sisco authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
