Overview
Crane scale with 5 digits red LED display has capacity from 2 ton/3 ton/5 ton/10 ton/15 ton to 20 ton, can be used for process weighing and trade weighing under a crane or lifting equipment.
Features
- Crane scale with a special one-piece load cell has higher security.
- Digital crane scale doesn't occupy the space and can realize effective monitoring and control.
- It makes the metering work in the process of lifting, loading and unloading and carry out continuously, saving manpower, time, and cost.
- The operation and calibration of the crane scale are simple.
- SISCO crane scale has multi-functions, high precision, strong anti-cheating ability and low maintenance cost.
- Customizable monitoring mode: RS232 interface for long-distance monitoring, wireless large screen and wireless indicator.

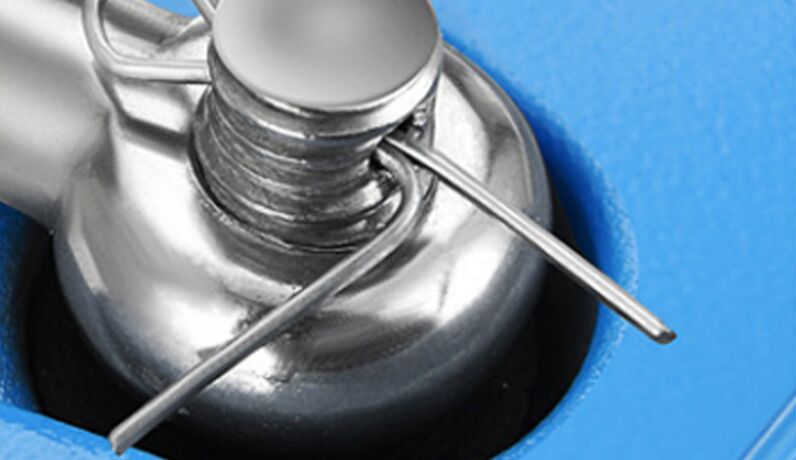

Hanging ring double safety
- Threaded swivel
- Add pin to lock

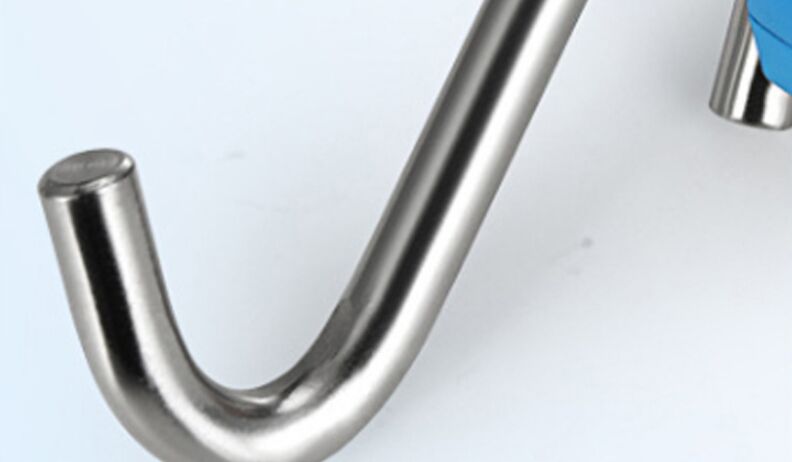

Delicate hook
- Cast aluminum body
- Hook hanging ring steel
Dimension (unit=mm)
Note: The width of the upper shackle is 110mm at max and 65mm at small.)
| Capacity |
Dimension (mm) |
| A |
B |
C |
D |
E |
H |
| 2000kg (2 ton) |
95 |
260 |
35 |
195 |
130 |
430 |
| 3000kg (3 ton) |
95 |
260 |
45 |
195 |
130 |
460 |
| 5000kg (5 ton) |
125 |
325 |
55 |
235 |
158 |
525 |
| 10000kg (10 ton) |
140 |
325 |
65 |
235 |
158 |
660 |
| 15000kg (15 ton) |
175 |
345 |
70 |
235 |
160 |
805 |
| 20000kg (20 ton) |
175 |
345 |
85 |
235 |
160 |
870 |
Application
SISCO digital crane scale with simple operation and calibration is widely used in supplies warehouses, daily weighing, express shipping, parcel weighing, construction site, and port terminal.
FAQs
Q1: How accurate are crane scales?
A1: The crane scale has a measuring range of 0 … 1000 kg and a resolution of 0.1 kg. With an accuracy of 1% of the measuring range, the crane scale is also a precise measuring device.
Q2: What is a crane scale?
A2: A crane scale is a dynamometer/ load cell/ load links outfitted with equipment appropriate for suspended weighing, such as large openings in upper shackles, with hooks on the bottom and large dials for easy distant viewing. The inherent efficiency of the crane scale guarantees its continuing popularity.
Q3: How do I reset a small digital scale?
A3: First, reset the unit by pressing ON/OFF button and wait until "0.0" is shown. And then press and hold the UNITS button for 3 seconds until "CAL" is displayed.
Tips: How to use your crane scale?
To use your crane scale follow these simple steps:
- The object being weighed must have a secure handle or attachment for lifting. Ensure that your object fits this description or that provisions are made so that the item is suitable for weighing via crane scale.
- The object should be placed on a flat surface. Using the hook on the scale it can be connected securely to the item being weighed.
- Lift the object using the crane controls.
- Use the remote control to operate the scale’s display and track the weight.
- Once you have finished weighing, the crane scale will automatically power-off to save battery life.
