Overview

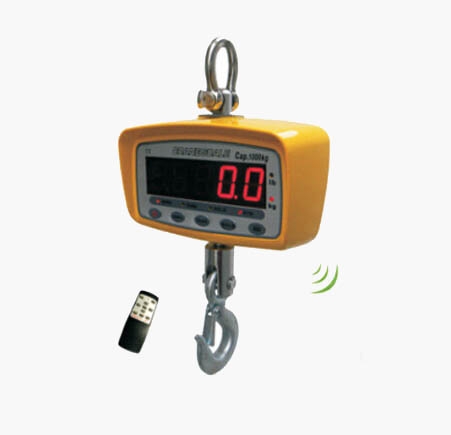

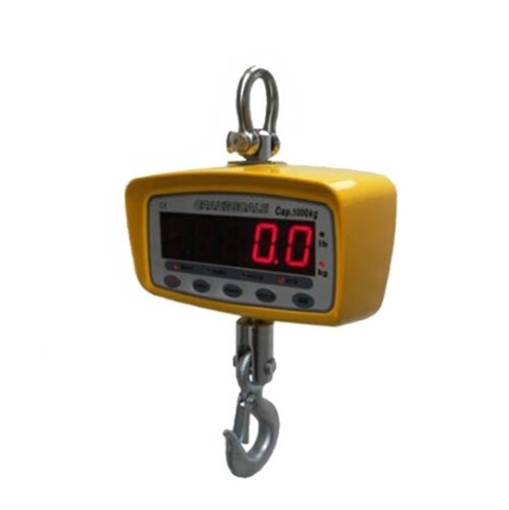

Wireless crane scale with optional capacity from 50kg/ 100kg/ 200kg/ 300kg/ 500kg to 1000kg. ATO digital scale is portable, versatile, accurate, and very reliable. Ideal for overhead industrial weighing applications including shipping, logistics, oil and gas, farm & ranch, machine shop, and recycling.
- Wireless crane scale with function of Bluetooth remote control, and remote control receiving distance up to 15 meters, convenient and easy to use.
- Swivel hook 360° rotatable hook, safe and convenient to use.
- Multiple weighing units: kilograms (kg), British pounds (lb), Newtons (N) and other measurement units can be selected. Normally, set kilogram (kg) as the default unit.
- Gross/net weight, zero setting, automatic zero point tracking, accumulation, maintenance, overload alarm and record, anti-shake effect, remote control calibration and other functions.
- Aluminum alloy casing, sturdy and durable structure and 5-digit large digital display (character height 30mm).
- Graduation value is optional. Gravity acceleration value can be adjusted according to the customer's location.
- When you press and hold the remote control, office-button, the indicator light on the remote control is on, which means that the infrared rays of the remote control are effectively emitting.

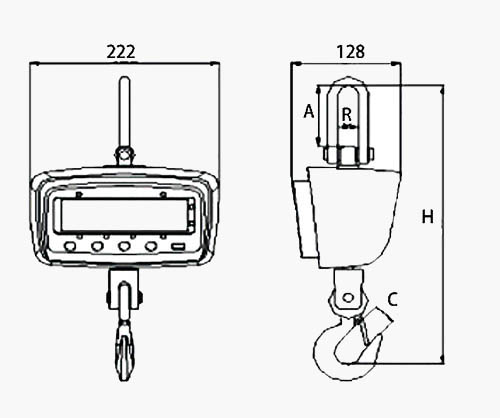

Dimension (unit=mm)
| Capacity (kg) |
Division (kg) |
A (mm) |
C (mm) |
H (mm) |
| 50kg |
0.02kg |
34 |
25 |
370 |
| 100kg |
0.05kg |
34 |
25 |
370 |
| 200kg |
0.1kg |
34 |
25 |
370 |
| 300kg |
0.1kg |
34 |
25 |
370 |
| 500kg |
0.2kg |
42 |
27 |
390 |
| 1000kg |
0.5kg |
42 |
27 |
390 |
Application
SISCO digital crane scale with simple operation and calibration is widely used in supplies warehouses, daily weighing, express shipping, parcel weighing, construction site, and port terminal.
FAQs
Q1: How accurate are crane scales?
A1: The crane scale has a measuring range of 0 … 1000 kg and a resolution of 0.1 kg. With an accuracy of 1% of the measuring range, the crane scale is also a precise measuring device.
Q2: What is a crane scale?
A2: A crane scale is a dynamometer/ load cell/ load links outfitted with equipment appropriate for suspended weighing, such as large openings in upper shackles, with hooks on the bottom and large dials for easy distant viewing. The inherent efficiency of the crane scale guarantees its continuing popularity.
Q3: How do I reset a small digital scale?
A3: First, reset the unit by pressing ON/OFF button and wait until "0.0" is shown. And then press and hold the UNITS button for 3 seconds until "CAL" is displayed.
Tips: 5 tips for using a hanging crane scale
- Ensure your crane scale is installed properly: Before using a crane scale, you must ensure that the equipment has been installed appropriately. The installation must follow the rules and necessities the manufacturer sets out in the relevant handbook and comply with safety measures. A proper installation will avoid problems, malfunctions, or accidents.
- Train your team in risk prevention: Training in occupational risk prevention is a must in every business, and it’s even more critical in environments where big loads must move around. Ensure your team has the training to keep from suspended loads and know the risks when operations occur.
- Never pass under a suspended load: You should never go underneath a load suspended during the weighing process. If the load falls, it can cause severe injuries (such as broken bones) and property damage. There can never be enough caution.
- Never go over the maximum load limit of the scale: To avoid breaking a crane scale, never exceed their maximum load limit. You have to know the exact load limit of your equipment and ensure you never trespass on it. To obtain an accurate reading, you must stay within the suitable capacity; otherwise, you may damage the measuring element or the hook. If the hook is damaged, it can cause the load to fall (and consequent injuries and damage).
- Performs periodic maintenance and inspections of the crane scale: Please ensure your weighing equipment, such as your crane scales, is inspected regularly to check for malfunctions or inaccurate readings. Periodic inspection and maintenance are mandatory to guarantee the safety of your team. Moreover, it will be the only way to ensure the weighing data’s accuracy over time.
