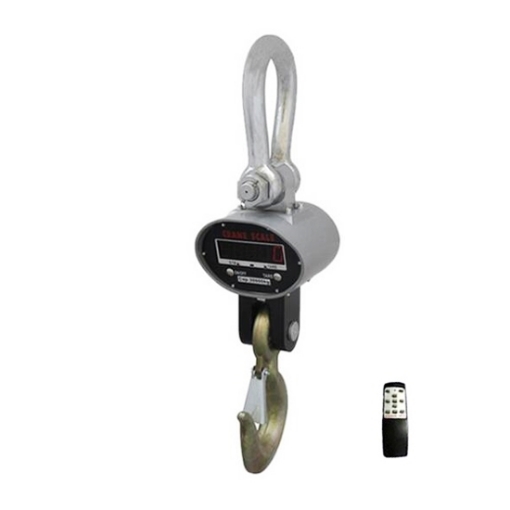

Crane scale has a capacity of 30000kg (30 ton) or 50000kg (50 ton) for selection. The load receptor, shackle and hook are all made of quality stainless steel, which makes the scale very sturdy and durable. With its handheld size and less than 2 pounds weight, you can carry it almost anywhere to use.
Features
- Crane scale with seamless steel pipe housing has higher security and protection class IP65.
- Digital crane scale doesn't occupy the space and can realize effective monitoring and control.
- It makes the metering work in the process of lifting, loading and unloading and carry out continuously, saving manpower, time and cost.
- The operation and calibration of the crane scale are simple.
- Digital crane scale has multi-functions, high precision, strong anti-cheating ability and low maintenance cost.
- Customizable monitoring mode: RS232 interface for long-distance monitoring, wireless large screen and wireless indicator.
Hanging ring double safety
- Threaded swivel
- Add pin to lock
Delicate hook
- Cast aluminum body
- Hook hanging ring steel

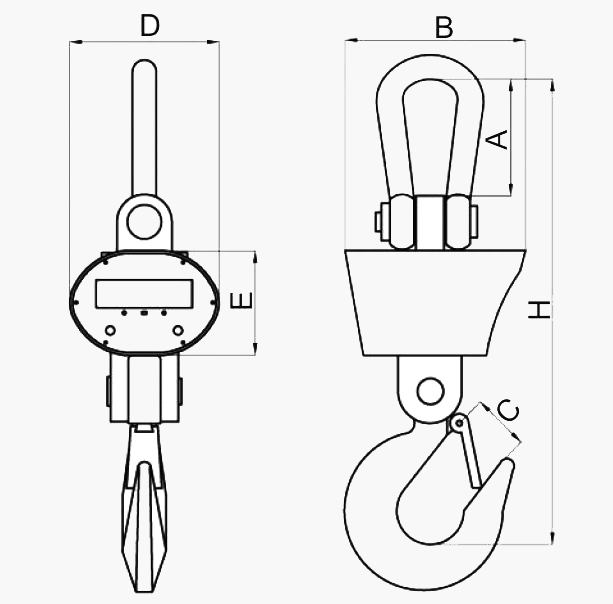

Dimension (unit=mm)
| Capacity | Dimension (mm) | |||||
| A | B | C | D | E | H | |
| 30000kg (30 ton) | 260 | 340 | 105 | 300 | 200 | 1055 |
| 50000kg (50 ton) | 360 | 600 | 110 | 440 | 320 | 1360 |
Application
SISCO digital crane scale with simple operation and calibration is widely used in supplies warehouses, daily weighing, express shipping, parcel weighing, construction site, and port terminal.
Â
| Model | SISCO-CRS-GSP911-30 | SISCO-CRS-GSP911-50 |
| Capacity * | 30000kg (30 ton) | 50000kg (50 ton) |
| Shipping weight | 115kg | 330kg |
| Division value | 10kg | 20kg |
| Number of division | Standard number of division: 2000 to 3000, maximum number of division: 15000 | |
| Accuracy standard | According to OIML class III | |
| Display | 5 digits red LED display, 45mm (1.8") font height | |
| Filtering | Optional low / medium / high | |
| Units | Optional kg / lbs | |
| Zero range | 4%F.S. | |
| Tare range | 100%F.S. | |
| Overload display | 100%F.S.+9e | |
| Maximum safety load | 125%F.S. | |
| Ultimate load | 400%F.S. | |
| Housing material | Seamless steel pipe (powder coated) | |
| Protection class | IP65 | |
| Battery of crane scale | Fully sealed lead acid battery, 6V/7Ah | |
| Battery continuous operation time | ≥100 hours | |
| Battary charger | Input: AC 100V-240V, output: DC 9V/1000mA | |
| Operating temperature | -20~+50℃ (-4~+122℉) | |
| Operating humidity | ≤85%RH under 20℃ (68℉) | |
| Functions | Tare, zero, auto zero tracking, total, hold, overload warning and record, low battery alarm, automatic power off, infrared remote control calibration | |
| Maximum remote control distance | 15m (49ft) | |
| Battery of infrared remote controller | 2 AAA batteries, 1.5V * 2 | |
| Acceleration of gravity | Default value: g=9.793m/s2 (can be regulated) | |
Package included
- 1 * crane scale (with rechargeable battery)
- 1 * battery charger
- 1 * remote controller (with 2 AAA batteries)
- 1 * user manual
Q1: How accurate are crane scales?
A1: The crane scale has a measuring range of 0 … 1000 kg and a resolution of 0.1 kg. With an accuracy of 1% of the measuring range, the crane scale is also a precise measuring device.
Q2: What is a crane scale?
A2: A crane scale is a dynamometer/ load cell/ load links outfitted with equipment appropriate for suspended weighing, such as large openings in upper shackles, with hooks on the bottom and large dials for easy distant viewing. The inherent efficiency of the crane scale guarantees its continuing popularity.
Q3: How do I reset a small digital scale?
A3:Â First, reset the unit by pressing ON/OFF button and wait until "0.0" is shown. And then press and hold the UNITS button for 3 seconds until "CAL" is displayed.
Tips: How does a digital crane scale work?
By attaching the load to the hook, the digital readout will be able to tell you how much force is being put onto the crane, and how much the load weighs and you will then be able to transport the cargo properly without issues. Be sure to keep your crane scales calibrated and maintained to get accurate readouts and data.
