The dust particle counting machine adopts semiconductor laser sensor technology and an anti-noise air pump, with a data storage function, which can directly print the test results, particle size channel 0.3/0.5/1.0/3.0/5.0/10.0μm. Air dust particle counter is widely used in beverage packaging environments, medical equipment production environments, clean operating rooms, automotive spraying environments, microelectronics, pharmaceuticals, biochemical products, and food hygiene.

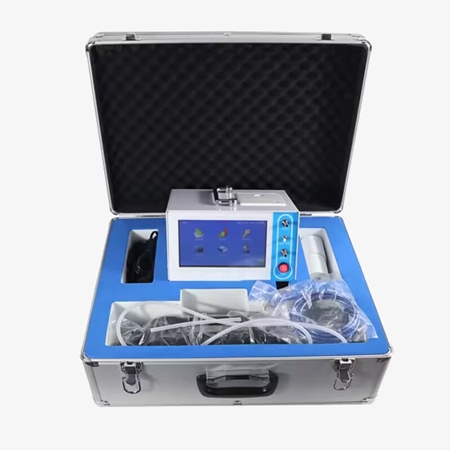

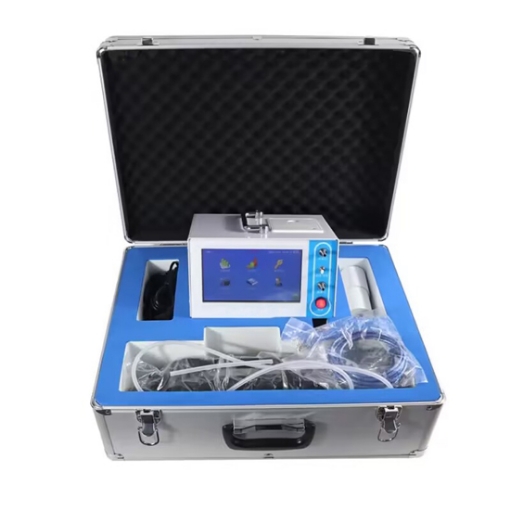

Laser dust particle counter with built-in printer
- Intuitive 7-inch color touch screen, ensuring effortless operation and accurate monitoring of environment quality.
- Level alarm function for clean room level 100, 1000, 1w, 10w, 30w, 100w.
- Particle size channel 0.3, 0.5, 1.0, 3.0, 5.0, 10.0μm, six grade particle size counting at the same time. The particle size can be customized according to customer needs.
- The particulate meter can store 20,000 sets of data with no data loss after power failure.
Application
The laser air particle counter is an instrument for measuring the number of dust particles per unit volume and particle size distribution in a clean environment, which can be widely used in medical, pharmaceutical, electronic, chemical, optical, food, cosmetic, biological products, aerospace and other industries.
Â
| Model | SISCO-CLJ-E |
| Light Source | Laser diode |
| Flow Rate | 2.83L/min |
| Standard Domestic Air Pump | Optional imported air pump, continuous stable operation, energy saving and environmental protection |
| Verification Standard | GB/T6167-2007, JJF1190-2008 |
| Repeatability Relative Error | ±10% |
| Particle Size Concentration Indication Error | <±30% |
| Maximum Sampling Concentration | 35,000 particles/liter |
| Self-cleaning Time | ≤10min (counting is zero for 3 consecutive times within 10 minutes, 95% confidence level |
| Sampling Time | User-set (1~999 seconds) |
| Sampling Delay | User-set (1~999 seconds) |
| Number of Sampling Time | user-set (1~999 seconds) |
| Number of Sampling Points | 2~50 |
| Number of sampling points | 2~50 |
| Working Time | Continuous stable test time of about 3 hours |
| Data Memory Capacity | 1~20,000 groups of measurement data, which can be queried and exported |
| Counting Mode | Cumulative number, difference |
| Screen Display | Color 7-inch touch screen |
| Printing Method | Built-in thermal printer |
| Charging Power Supply | AC 220V/50Hz |
| Built-in Lithium Battery | DC 16.8V, 5.2Ah |
| Charging Adapter | Input 100-240V, 1.2A, output 16.8V, 2A |
| Battery Charging Time | 3 hours |
| Cleanliness Level Determination Standard | IS014644-1, GMP dynamic, GMP static |
| Temperature and Humidity/Collection Software | Optional |
| Data Communication Interface | USB |
| Usage Environment | 0°~40°C |
| Relative Humidity | 10 ~90% |
| Storage Environment | -30°C~45°C |
| Relative Humidity | 0 ~90% |
| Weight | 4.8kg |
| Dimension | 260x130x340mm |
Q1:Â How to use the handheld particle counter?
A1:Â The particle counter is simple to use, first determine the number of test points according to the area of the clean room and distribute the test points evenly in the clean room, then set the measurement time, measurement unit, flow rate, and other parameters of the particle counter, then put the particle counter on the plane of 1~1.2 meters height from the ground in the middle of the sampling point, and finally start to test the sampling and record the data one by one.
Q2:Â How to change the printing paper of the particle counter?
A2:Â Generally, the printing part of the particle counter has a cover, some covers can be lifted directly to cover, lift it to replace the printing paper, and some need to use a screwdriver to unscrew the screw, the specific instructions are also introduced, open the cover to follow the thermal printing paper can be replaced.
Q3:Â How to read the dust particle counter?
A3:Â The results of the dust particle counter, generally the left column is the particle diameter, and the right column is the number of particles per cubic meter.
Tips: What is a dust particle counter?
A dust particle counter is an instrument used to detect the number of dust particles and their distribution in a unit volume in a clean environment. Particle counter has the characteristics of fast detection speed, high precision, and low human influence, etc. It is widely used in drug testing institutes, epidemic prevention stations, blood centers, pharmaceutical workshops, precision instrument processing, and quality supervision institutes.
