Online particle counting particle size range 0.3~10μm, the sensor adopts industrial-grade laser and light-sensitive components, combined with light scattering particle monitoring technology, which can more accurately measure the concentration of particles in various environments with cleanliness requirements.
Fully automatic measurement with remote control and wireless transmission
- Online particle counter adopts single particle laser scattering principle, industrial-grade laser light source. High counting efficiency and accurate data. Particle size range 0.3~10mm.
- Aerodynamic correction, self-checking of optical and air paths, insensitive to vibration, ensuring system reliability and stability.
- Stable flow rate, particle counter adopts active sampling method, constant flow inlet fan, optional PID flow control function, can support stable, long time, high negative pressure, sampling.
- The laser particle counter has a simple installation structure, high versatility, ESD, over-voltage, over-current, and reverse connection protection functions, ensuring the stability and reliability of the circuit.
- RS485 interface, remote control, wireless transmission, and real-time data upload.
Application
Particle counters have a wide range of applications, such as the processing of precision electronics, testing filters, pharmaceutical plants in the pharmaceutical industry, drug testing laboratories to test the cleanliness of hospitals, hospital operating rooms, air purification industry. The design of some clean workshops or clean rooms, the construction units, and the processing of precision electronic devices related to purification equipment all require the use of particle counters.
| Model | SISCO-JC039 |
| Measurement Output | 0.3μm, 0.5μm, 1μm, 3μm, 5μm, 10μm |
| Measuring Range | 4,000,000 pcs/ft3 |
| Flow Rate | 2.83 L/min |
| Input Voltage | DC12V (9~25VDC), recommended power supply not less than 12V 2A |
| Rated Power | 3.5W |
| Sleeping Power | 0.24 W |
| Operating Temperature Range | -20-60°C |
| Humidity Range | 0-99%RH |
| Working Atmospheric Pressure | 86KPa~110KPa |
| Response Time | 1S |
| Communication Interface | RS- 485+UART TTL, customizable |
| Communication Protocol | Modbus-RTU, customizable |
| Counting Efficiency | 0.3μm/50% |
| Relative Error | ±10% |
| Dimension | 173*104*63.2mm |
| Hose Size | Inner diameter: φ5mm, outer diameter: φ8mm |

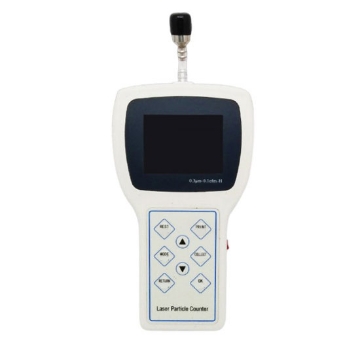

Q1: How to use the handheld particle counter?
A1: The particle counter is simple to use, first determine the number of test points according to the area of the clean room and distribute the test points evenly in the clean room, then set the measurement time, measurement unit, flow rate, and other parameters of the particle counter, then put the particle counter on the plane of 1~1.2 meters height from the ground in the middle of the sampling point, and finally start to test the sampling and record the data one by one.
Q2: How to change the printing paper of the particle counter?
A2: Generally, the printing part of the particle counter has a cover, some covers can be lifted directly to cover, lift it to replace the printing paper, and some need to use a screwdriver to unscrew the screw, the specific instructions are also introduced, open the cover to follow the thermal printing paper can be replaced.
Q3: How to read the dust particle counter?
A3: The results of the dust particle counter, generally the left column is the particle diameter, and the right column is the number of particles per cubic meter.
Tips: What is a liquid particle counter?
A liquid particle counter can be used laser particle counter or a condensed nucleus particle counter. A liquid particle counter is a special instrument to test the particle size of oil particles and their distribution, developed from the microscope, which has gone through the process of the microscope, weighing method, and laser particle counter, among which laser particle counter has become the mainstream product in many industries in recent years due to its advantages in various aspects such as fast testing speed, wide dynamic distribution and not affected by a human.
