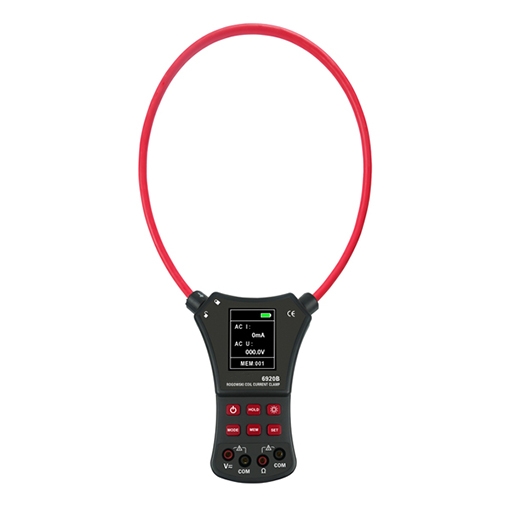

The clamp meter has a measuring range of AC 0.0A-10000A, and the jaw size is Φ200mm. The AC clamp ammeter can be used as an ordinary multimeter to measure AC voltage, DC voltage, resistance, and on-off test. It is especially suitable for places with dense wiring such as semiconductor switches, power electronic conversion equipment, arc welding, and other industrial environments where the signal is seriously distorted test.

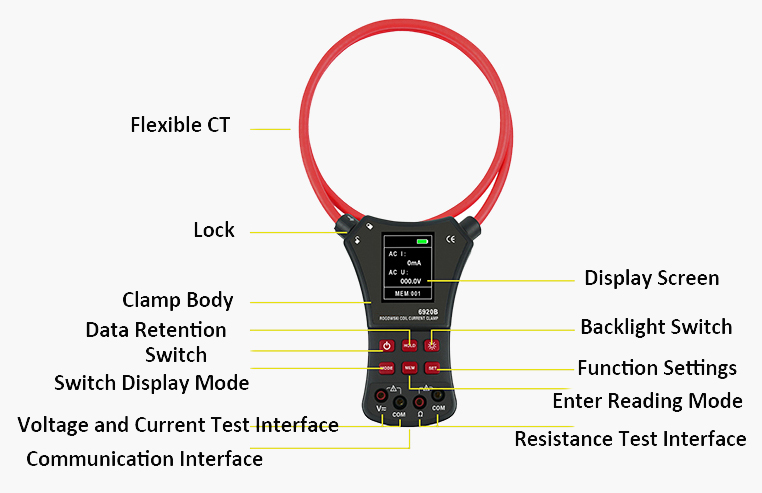

- Flexible coil without any exposed metal conductor, non-contact measurement, safe and reliable. Small size, lightweight, soft and flexible, suitable for narrow environments and cable densely places, as well as measuring conductor current of large size or irregular shape.
- The flexible coil inside diameter is φ200mm/ φ300mm, customized size according to user requirements.
- Display multiple measurement parameters on the same screen, easy to operate.
- Can be used as a normal multimeter.
- With a USB port, can upload the stored data to a computer via the software, convenient to view, store and print the data.
Applications
sisco clamp current meter is available with a measuring range of 0mA-60A AC/DC. The clamp ammeter is especially suitable for places with dense wiring (power metering systems, high-speed rail systems, automotive circuit maintenance, etc.), and non-contact current measurements to ensure safe operation. The instrument is small in size, high in precision, stable in performance and perfect in function, and is one of the necessary tools for electrical safety inspection and maintenance.
| Model | SISCO-ETCR6920 |
| Current Range | 0.00mA-10000.00A |
| Resolution | 1mA |
| Accuracy | ±2%rdg±5dgt |
| CT Size | φ200mm |
| Meter Dimension | 200mm×370mm×35mm |
| AC Voltage Measurement | Range: AC 0.1V~750V; Accuracy: ±1.5%rdg±3dgt; Resolution: 0.1V |
| DC Voltage Measurement | Range: DC 0.1V~1000V; Accuracy: ±1.5%rdg±5dgt; Resolution: 0.1V |
| Resistance Measurement | Range: 0Ω~2kΩ; Accuracy: ±2%rdg±5dgt; Resolution: 1Ω |
| Weight | 266g |
| Power Supply | 6V DC (LR03*4 PCS Alkaline dry cell) |
| LCD Size | 35mm×21.5mm; Display domain: 32mm×15mm, with backlight, convenient to use in dark site |
| Sampling Rate | 2 times/second |
| Electric Field Interference | No hysteresis effect, strong anti-interference ability |
| Continuity Test | Yes, in the resistance measurement interface press the "SET" key, display the symbol to open this function and the buzzer will make out the sound "bee---". |
| Data Storage | 600 groups, display the "FULL" symbol to indicate storage full |
| Data Hold | The "DH" symbol display |
| Overflow Display | Exceed measure range overflow function: "OL" symbol display |
| Communication Terminal | With a USB terminal, upload stored data to a computer, convention analysis data, communication cable length 1.8m |
| Auto Shut Down | About 10 minutes after start-up, the meter will automatically shut down without any operation, to reduce battery consumption |
| Battery Voltage | While the battery voltage is lower than 4.8V, the meter will display the symbol and remind to replace the battery |
| Working Current | Backlight on: 80mA; Backlight off: 40mA |
| Working Temperature | -10℃ ~40℃ ;below 80%rh |
| Backlight | Yes, Press "*" key to control |
| Accessories |
Meter: 1PCS; Pen probe test line: 2PCS(Red & Black); USB communication cable: 1PCS; Tool bag: 1PCS |
SISCO-ETCR-6920 Flexible Clamp Meter User Manual.pdfQ1: What is clamp ampere meter?
A1: A clamp ammeter is a combination of a current transformer and an ammeter. The iron core of the current transformer can be opened when the wrench is tightened; the wire through which the measured current passes can pass through the gap opened by the iron core without being cut off, and the iron core is closed when the wrench is released.
Q2: How does a current clamp meter work?
A2: A clamp meter is a clothespin-shaped instrument that can be clamped around a live wire in order to measure the current it's carrying. As a measurement principle, clamp meters detect the magnetic field emitted by current flowing in a wire in order to measure the current value.
Q3: How to use a clamp ammeter?
A3: When using a clamp ammeter to detect the current, be sure to clamp a measured wire (wire). If two (parallel wires) are clamped, the current cannot be detected. In addition, when the center (core) of the clamp ammeter is used for detection, the detection error is small. When checking the power consumption of home appliances, it is more convenient to use a line splitter. Some line splitters can amplify the detection current by 10 times, so the current below 1A can be amplified before detection. Use a DC clamp ammeter to detect the DC current (DCA), if the current flows in the opposite direction, it will display a negative number. This function can be used to detect whether the car's battery is in a charging state or a discharging state.
Tips: Things to avoid when using a clamp meter
Clamp meters offer a high level of safety since they don't require the wire under measurement to be cut, but it’s important to use them at or under the maximum rated terminal-to-ground voltage.
- If you leave a clamp-on power meter connected after use, an excessively large current flowing to the clamp sensor could damage the instrument.
- Avoid clamping an instrument to a bare conductor; clamp meters should only be used to measure insulated conductors (although this depends on the specific current sensor in use).
- Finally, the instrument's barrier indicates the safety limit, so never touch anything on the jaw side of the barrier while using the instrument.
