Overview

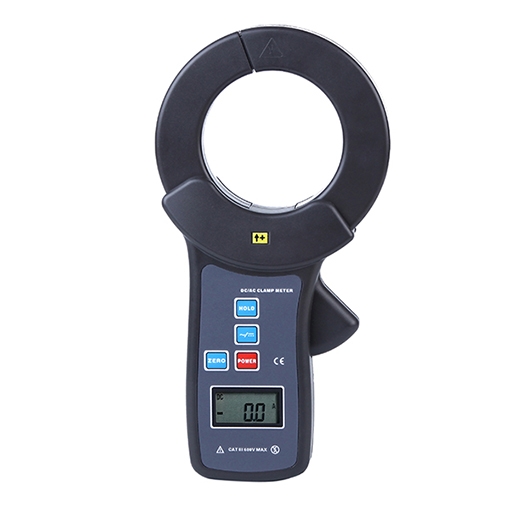

The clamp current meter has a measuring range of AC 0.0A-1500A, DC 0.0A-2000A, the jaw size is Φ68mm, and the iron core is made of magnetic shielding material, which has the strong anti-interference ability and ensures the accuracy and stability of the measurement. The current is measured in a non-contact way, and the operation is safe and simple.

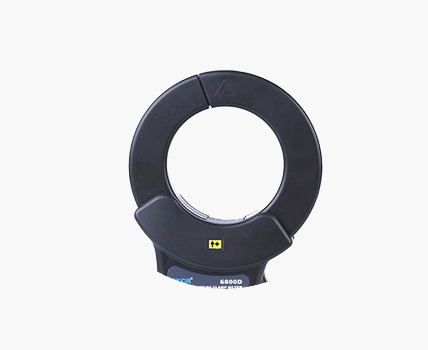

Super large diameter, more practical
- Jaw size φ68mm
- Opening 68mm, can clamp diameter 68 wires
Backlit HD screen design
- The logo is displayed in the upper left corner
- DC direction is negative display "-"
Applications
sisco clamp current meter is available with a measuring range of 0mA-60A AC/DC. The clamp ammeter is especially suitable for places with dense wiring (power metering systems, high-speed rail systems, automotive circuit maintenance, etc.), and non-contact current measurements to ensure safe operation. The instrument is small in size, high in precision, stable in performance and perfect in function, and is one of the necessary tools for electrical safety inspection and maintenance.
FAQs
Q1: What is clamp ampere meter?
A1: A clamp ammeter is a combination of a current transformer and an ammeter. The iron core of the current transformer can be opened when the wrench is tightened; the wire through which the measured current passes can pass through the gap opened by the iron core without being cut off, and the iron core is closed when the wrench is released.
Q2: How does a current clamp meter work?
A2: A clamp meter is a clothespin-shaped instrument that can be clamped around a live wire in order to measure the current it's carrying. As a measurement principle, clamp meters detect the magnetic field emitted by current flowing in a wire in order to measure the current value.
Q3: How to use a clamp ammeter?
A3: When using a clamp ammeter to detect the current, be sure to clamp a measured wire (wire). If two (parallel wires) are clamped, the current cannot be detected. In addition, when the center (core) of the clamp ammeter is used for detection, the detection error is small. When checking the power consumption of home appliances, it is more convenient to use a line splitter. Some line splitters can amplify the detection current by 10 times, so the current below 1A can be amplified before detection. Use a DC clamp ammeter to detect the DC current (DCA), if the current flows in the opposite direction, it will display a negative number. This function can be used to detect whether the car's battery is in a charging state or a discharging state.
Tips: What should be paid attention to when using a clamp ammeter?
- When performing the current measurement, the position of the carrier fluid to be measured should be placed in the center of the jaws to avoid errors.
- Estimate the magnitude of the measured current before measurement, and select a suitable range. If the current magnitude is not known, select the maximum range, and then reduce the range appropriately according to the pointer, but do not change the range during measurement.
- In order to make the reading accurate, the jaws should be kept clean and undamaged. If there is dirt, it should be cleaned with gasoline and then measured.
