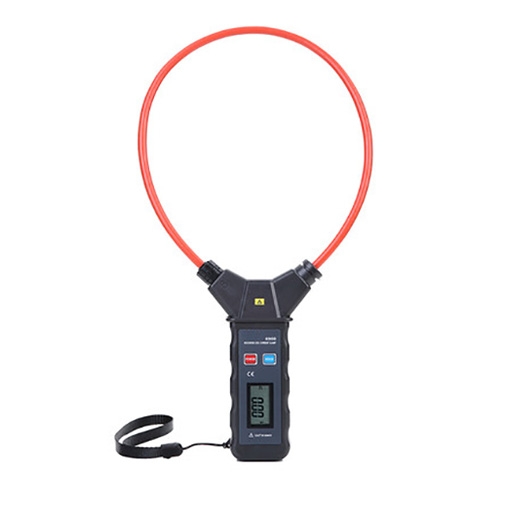

The flexible clamp meter has a measuring range of AC 0.0A-9999A, and the jaw size is Φ200mm. The clamp ammeter has the functions of peak hold, data hold, data storage, etc. The coil part of the flexible current clamp does not have any exposed metal conductors or non-contact measurements, it is small in size, light in weight, beautiful in appearance, soft and flexible, and suitable for narrow environments and places with dense wiring.
- Flexible coil without any exposed metal conductor, non-contact measurement, safe and reliable. Small size, lightweight, soft and flexible, suitable for narrow environments and cable densely placed, as well as measuring conductor current of large size or irregular shape.
- No hysteresis effect, strong anti-interference ability. Especially suitable for the current test of transformer grounding core, thick wire and cable, relay protection, silicon-controlled rectifier, frequency conversion speed regulation, semiconductor switch, power electronic conversion equipment, arc welding and other industrial environments with serious signal distortion.
Detail

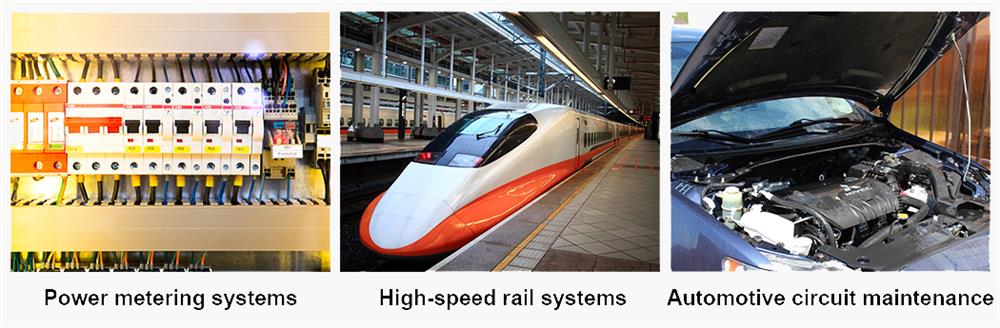

Applications
sisco clamp current meter is available with a measuring range of 0mA-60A AC/DC. The clamp ammeter is especially suitable for places with dense wiring (power metering systems, high-speed rail systems, automotive circuit maintenance, etc.), and non-contact current measurements to ensure safe operation. The instrument is small in size, high in precision, stable in performance and perfect in function, and is one of the necessary tools for electrical safety inspection and maintenance.
| Model | SISCO-ETCR6900 |
| Current Range | 0.00mA-9999.00A |
| Resolution | 10mA AC |
| Accuracy | ±2%rdg±3dgt (the wire is at the center of the flexible coil, 23℃ ± 2 ℃ ) |
|
Coil Inner Diameter |
φ200mm |
| Meter Dimension | 190mm×370mm×40mm |
| Coil Thickness | Ф7.5mm (Suitable for use in narrow environments and cable densely packed place, etc.) |
| Weight | 200g |
| Power Supply | Zinc manganese dry battery 6F22 9V |
| LCD Size | 35mm×21.5mm; Display domain: 32mm×15mm, with backlight, convenient to use in dark site |
| Sampling Rate | 2 times/second |
| Electric Field Interference | No hysteresis effect, strong anti-interference ability |
| Communication Interface | Wireless transmission, straight distance of 30m |
| Data Storage | 99 groups, flash display "FULL" symbol indicates storage full |
| Peak Hold | Peak value capture and hold function, long press POWER key display peak value |
| Data Hold | The "DH" symbol display |
| Overflow Display | Exceed measure range overflow function: "OL" symbol display |
| Polarity Indication | In DC current test auto-identified and display the "-" symbol |
| Auto Shut Down | 15 minutes after boot up, the meter shuts down automatically without any operation, to reduce battery consumption |
| Battery Voltage | Battery voltage lower than 7.2V will display a low battery voltage symbol, and remind to replace the battery |
| Rated Current | 8mA |
| Line Voltage | Below 600V current test |
| Overflow Display | Ф32mm 1m×5 piece |
| Accessories | Meter: 1PCS; Sling: 1PCS; Cloth bag: 1PCS |
Q1: What is clamp ampere meter?
A1: A clamp ammeter is a combination of a current transformer and an ammeter. The iron core of the current transformer can be opened when the wrench is tightened; the wire through which the measured current passes can pass through the gap opened by the iron core without being cut off, and the iron core is closed when the wrench is released.
Q2: How does a current clamp meter work?
A2: A clamp meter is a clothespin-shaped instrument that can be clamped around a live wire in order to measure the current it's carrying. As a measurement principle, clamp meters detect the magnetic field emitted by current flowing in a wire in order to measure the current value.
Q3: How to use a clamp ammeter?
A3: When using a clamp ammeter to detect the current, be sure to clamp a measured wire (wire). If two (parallel wires) are clamped, the current cannot be detected. In addition, when the center (core) of the clamp ammeter is used for detection, the detection error is small. When checking the power consumption of home appliances, it is more convenient to use a line splitter. Some line splitters can amplify the detection current by 10 times, so the current below 1A can be amplified before detection. Use a DC clamp ammeter to detect the DC current (DCA), if the current flows in the opposite direction, it will display a negative number. This function can be used to detect whether the car's battery is in a charging state or a discharging state.
Tips: What is the function of a clamp meter?
A clamp ammeter is a combination of a current transformer and an ammeter. The iron core of the current transformer can be opened when the wrench is squeezed; the wire through which the measured current passes can pass through the iron core. The measured circuit wire becomes the primary coil of the current transformer, and the current is induced in the secondary coil current.
Usually, when measuring the current with an ordinary ammeter, it is necessary to cut off the circuit and shut down the circuit before connecting the ammeter for measurement. This is very troublesome, and sometimes the motor in normal operation does not allow this. At this time, it is much more convenient to use a clamp ammeter, which can measure the current without cutting off the circuit.
