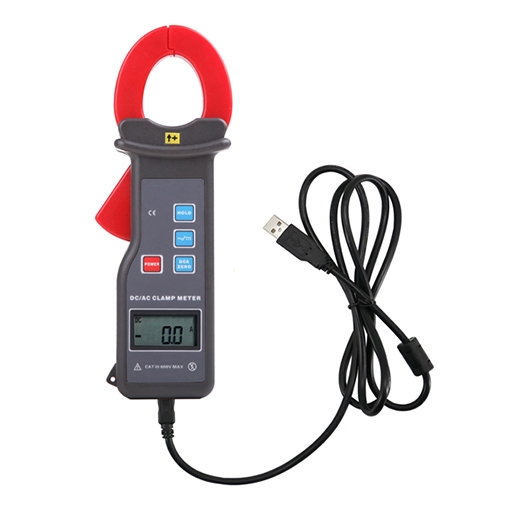

The DC/ AC clamp ammeter is suitable for measuring DC and AC currents up to 600V, the range is AC/DC 0.0A~1000A, the jaw size is 30mm*35mm, and the non-contact current measurement ensures safe operation. The clamp current meter is small in size, high in precision, stable in performance, and perfect in function, and is one of the necessary tools for electrical safety inspection and maintenance.
AC/DC leakage current clamp meter with the measuring range of 0mA-60A.
- The iron core is made with high-performance permalloy, hall induction technology, which is suitable for electric power measurement systems, high-speed railway systems, and automobile circuit maintenance, etc.
- Meter small size, high precision, stable performance.
- Data hold and data storage functions. Data upload function, the storage data can be uploaded to the computer, convenient to read, saving and print, and so on.
Applications
sisco clamp current meter is available with a measuring range of 0mA-60A AC/DC. The clamp ammeter is especially suitable for places with dense wiring (power metering systems, high-speed rail systems, automotive circuit maintenance, etc.), and non-contact current measurements to ensure safe operation. The instrument is small in size, high in precision, stable in performance and perfect in function, and is one of the necessary tools for electrical safety inspection and maintenance.
| Model | SISCO-ETCR6100 |
| Current Range | AC/DC 0.0A~1000.0A |
| Resolution | AC/DC 0.1A |
| Accuracy | ±2%rdg±3dgt |
| CT Size | Φ30*35mm |
| Meter Dimensions | 175mm×70mm×38mm |
| Weight | 200g |
| Power Supply | Alkaline battery 6LR61 9V |
| Working Current | 10mA |
| LCD Size | 35mm×21.5mm; display area: 32mm×15mm |
| Sampling Rate | 15 minutes after boot up, the meter shuts down automatically without any operation, to reduce battery consumption |
| Communication Interface | Storage data can be uploaded to the computer saved and print |
| Data Storage | 99 groups, flash display "FULL" symbol indicates storage full |
| Data Hold | Data hold function: "DH" symbol display |
| Overflow Display | Exceed measure range overflow function: "OL A" symbol display |
| Polarity Indication | In DC current test auto-identified and displayed the "-" symbol |
| Auto Shut Down | 5 minutes after powering on, it will power off automatically without any operation to reduce the power consumption. |
| Battery Voltage | Battery voltage lower than 7.2V will display a low battery voltage symbol, and remind to replace the batter |
| Line Voltage | Below 600V circuit test |
| Shift | Automatically |
| Accessories | Meter:1PCS; Communication cable:1PCS; Cloth bag:1PCS |
Q1: What is clamp ampere meter?
A1: A clamp ammeter is a combination of a current transformer and an ammeter. The iron core of the current transformer can be opened when the wrench is tightened; the wire through which the measured current passes can pass through the gap opened by the iron core without being cut off, and the iron core is closed when the wrench is released.
Q2: How does a current clamp meter work?
A2: A clamp meter is a clothespin-shaped instrument that can be clamped around a live wire in order to measure the current it's carrying. As a measurement principle, clamp meters detect the magnetic field emitted by current flowing in a wire in order to measure the current value.
Q3: How to use a clamp ammeter?
A3: When using a clamp ammeter to detect the current, be sure to clamp a measured wire (wire). If two (parallel wires) are clamped, the current cannot be detected. In addition, when the center (core) of the clamp ammeter is used for detection, the detection error is small. When checking the power consumption of home appliances, it is more convenient to use a line splitter. Some line splitters can amplify the detection current by 10 times, so the current below 1A can be amplified before detection. Use a DC clamp ammeter to detect the DC current (DCA), if the current flows in the opposite direction, it will display a negative number. This function can be used to detect whether the car's battery is in a charging state or a discharging state.
Tips: How does a clamp current meter work?
The measured circuit wire passing through the iron core of the clamp current meter becomes the primary coil of the current transformer, and the current is induced in the secondary coil by passing the current. So that the ammeter connected to the secondary coil has an indication - measure the current of the line under test. The clamp meter can be changed to different ranges by changing the gear of the switch. But it is not allowed to operate with electricity when shifting gears. The clamp meter is generally not high in accuracy, usually 2.5 to 5 grades. For convenience of use, there are switches of different ranges in the meter for the function of measuring different levels of current and measuring voltage.
