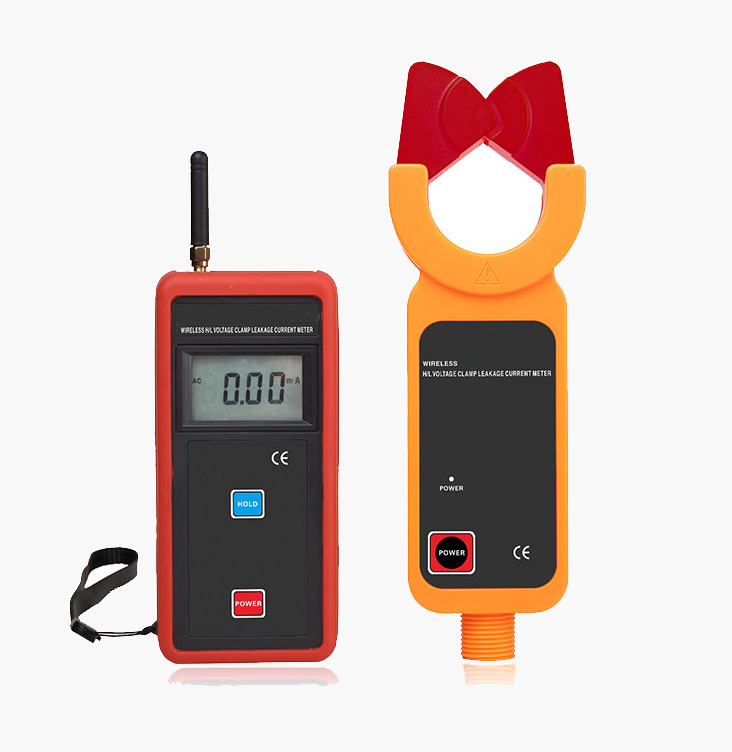

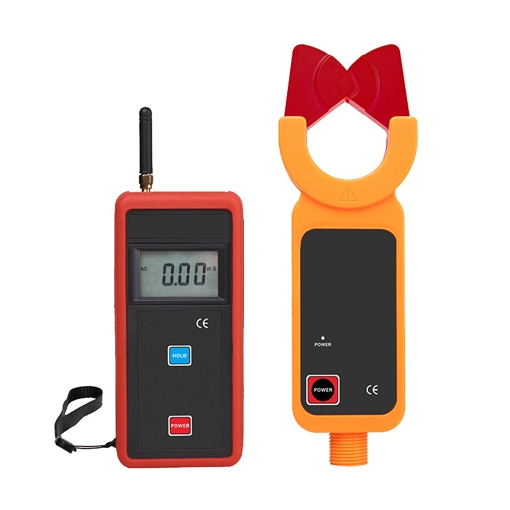

The AC clamp meter has a measuring range of AC 0.0A-60A, and the jaw size is Φ48mm. The wireless clamp ammeter is composed of a special clamp ammeter with a high-voltage insulating rod, wirelessly transmits test data, and is equipped with a wireless receiver, which can receive the measured data within 30 meters in a straight line.

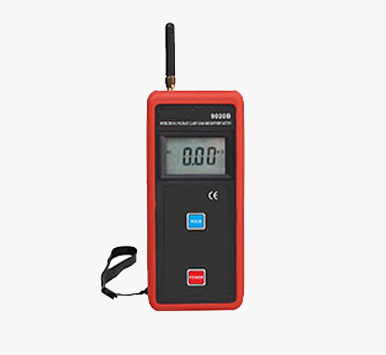

Wireless transmission, clearer data
- The transformer and receiver adopt 30-meter wireless transmission
- View test data in real-time, easy to use

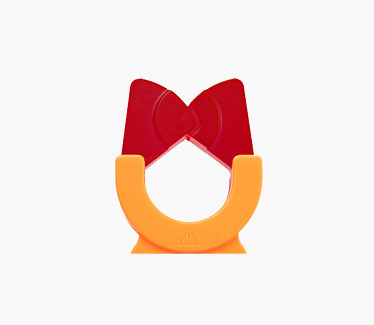

Clamp closure for higher resolution
- CT design closed mutual inductance
- Using resolution up to 0.01mA
Features
Wireless AC clamp meter with 0.00mA-600A AC high current range, 1mA resolution, and φ48mm CT size.
- The current clamp adopts magnetic shield and CT digital integration technology, with strong anti-interference, high accuracy, and stable test.
- The innovative automatic plug and pull structure makes the meter easy to clamp or withdraw the tested wire by pressing or pulling the insulation rod, saving time and convenience.
- Peak hold, data hold, and data memory function.
Applications
sisco clamp current meter is available with a measuring range of 0mA-60A AC/DC. The clamp ammeter is especially suitable for places with dense wiring (power metering systems, high-speed rail systems, automotive circuit maintenance, etc.), and non-contact current measurements to ensure safe operation. The instrument is small in size, high in precision, stable in performance and perfect in function, and is one of the necessary tools for electrical safety inspection and maintenance.
| Model | SISCO-ETCR9020B |
| Current Range | 0.00mA-60A |
| Resolution | 0.01mA |
| Accuracy | 0mA-99.9A: ±1%rdg±5dgt 100A-599: ±1.5%rdg±5dgt 600A-1200A: ±2%rdg±5dgt |
| CT Size | φ48mm |
| Meter Dimensions | 76mm×255mm×31mm Receiver: 78mm×165mm×42mm |
| Weight | 3630g |
| Power Supply | 6V DC (LR03×4pcs alkaline dry batteries) |
| LCD Size | 47mm*28.5mm |
| Sampling Rate | 2 times/second |
| Communication Interface | Wireless transmission, straight distance of 30m |
| Data Storage | 99 groups, stored process display MEM symbol, "FULL" symbol display indicate that storage full |
| Peak Hold | Automatically hold the highest test value |
| Data Hold | In usual test mode, press the HOLD key to keep data, "HOLD" symbol display |
| Overflow Display | Exceed measure range overflow function: "OL A" symbol display |
| Polarity Indication | In DC current test auto-identified and display the "-" symbol |
| Auto Shut Down | 15 minutes after boot up, the meter shuts down automatically without any operation, to reduce battery consumption |
| Battery Voltage | Battery voltage lower than 7.2V will display a low battery voltage symbol, and remind to replace the battery |
| Working Current | 5mA |
| Line Voltage | Below 110kV current test, operate with insulation rods |
| Insulation Rod Dimension | Ф32mm 1m×5 piece |
| Insulation Rod Withstand Voltage | 110kV ( 5PCS insulation rod connection) |
| Accessories | Meter: 1PCS; Receiver: 1PCS; Insulation rod (1m): 5PCS; Tool bag: 1SET |
Q1: What is clamp ampere meter?
A1: A clamp ammeter is a combination of a current transformer and an ammeter. The iron core of the current transformer can be opened when the wrench is tightened; the wire through which the measured current passes can pass through the gap opened by the iron core without being cut off, and the iron core is closed when the wrench is released.
Q2: How does a current clamp meter work?
A2: A clamp meter is a clothespin-shaped instrument that can be clamped around a live wire in order to measure the current it's carrying. As a measurement principle, clamp meters detect the magnetic field emitted by current flowing in a wire in order to measure the current value.
Q3: How to use a clamp ammeter?
A3: When using a clamp ammeter to detect the current, be sure to clamp a measured wire (wire). If two (parallel wires) are clamped, the current cannot be detected. In addition, when the center (core) of the clamp ammeter is used for detection, the detection error is small. When checking the power consumption of home appliances, it is more convenient to use a line splitter. Some line splitters can amplify the detection current by 10 times, so the current below 1A can be amplified before detection. Use a DC clamp ammeter to detect the DC current (DCA), if the current flows in the opposite direction, it will display a negative number. This function can be used to detect whether the car's battery is in a charging state or a discharging state.
Tips: Is a clamp meter safer than a multimeter?
If you simply want to measure current, a clamp meter is ideal, but for other measurements such as voltage, resistance, and frequency a multimeter is preferred for better resolution and accuracy. If you are all about safety, to measure current using a multimeter, you will have to break the circuit. On the other hand, by taking measurements with a clamp meter, you do not require breaking the circuit. For this reason, a clamp meter is safer to use than a multimeter.
