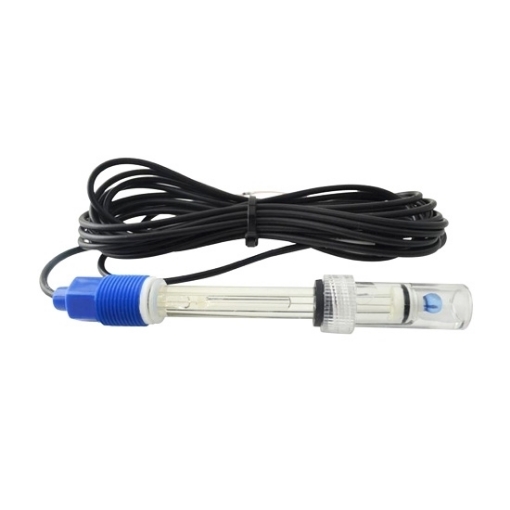

Glass pH Electrode for Pure Water

pH electrode for pure water treatment, special glass shell material, high temperature resistance, acid and alkali resistance, measuring range 0-14pH, temperature range 0-60℃, suitable for occasions requiring high precision.
SKU: SISCO-PHE-5020
*
*
$183.49
i h
Free shipping
Delivery date: 7-12 days
Overview


Pure water glass electrode with flexible measuring range, stable reference electrode, long electrode life, easy to install, high quality low noise cable enables long distance signal transmission.

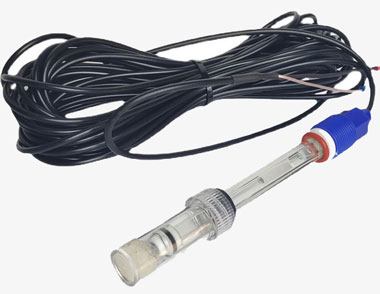

Glass electrode for pure water

Resistant to strong acid and alkali corrosion, online pH measurement

  • Adopt ceramic sand core liquid junction, two-liquid junction electrode, effectively extends electrode service life.
  • The shell material is special glass, high temperature resistant, acid and alkali resistant.
  • The gel electrolyte does not require additional electrolytes.
  • Accessories: PTFE sheath or stainless steel sheath. Increase the acid and alkali resistance of the electrode, easy to install.
  • High-quality low-noise cable can achieve 60m long-distance signal transmission.



Application

pH Electrode is widely used in the continuous testing and monitoring of pH, ORP and temperature in thermal power, chemical fertilizer, metallurgy, environmental protection, pharmaceutical, biochemical, food, drinking water, etc.

pH meter applications

Specs
Model SISCO-PHETE-PH5020
Weight 1kg
Measuring range 0-14pH
Accuracy 0.02pH
Temperature range 0-60℃ (32-140℉)
Temperature compensation * Internal temperature sensor (NTC 10K)
Zero position 7±0.3pH
Compressive strength 0.6MPa
Slope ≥98%
Installation size PG13.5 pipe thread
Shell material Special glass
Connection Direct lead
Cable length * 5m/10m/15m, or other length less than 50m (need customization)
Service life 6 months


Specification of sheaths (optional accessories)

Model SISCO-PHETE-A1 SISCO-PHETE-A2
Internal thread PG13.5 pipe thread PG13.5 pipe thread
External thread 3/4NPT 3/4NPT
Material PTFE (Polytetrafluoroethylene) Stainless steel


Installation

pH electrode installation

  1. Side wall installation (*The pH electrode must be at an angle of 15 degrees to the liquid surface. Otherwise, it will affect the normal use of the pH electrode.)
  2. The flange mounted at the top
  3. Pipe installation
  4. Top installation
  5. Submersible installation
  6. Flow-through installation
FAQs

Q1: What is a pH electrode?
A1: The pH electrode is also called the pH probe pH sensor. The pH electrode is the part of the pH meter that is in contact with the substance to be measured and is used to measure the electrode potential.

Q2: Why do pH electrodes need to be soaked?
A2: The pH electrode must be soaked before use, because the pH bulb is a special glass membrane with a thin hydrated gel layer on the surface of the glass
membrane, which can only interact with the H+ ions in the solution under fully wet conditions. the response to. At the same time, after soaking the glass
electrode, the asymmetric potential can be greatly reduced and tend to be stable.

Q3: What is a reference electrode?
A3: An electrode with a known and constant electrode potential that does not respond to the activity of hydrogen ions in solution is called the reference electrode. Reference electrodes include mercurous sulfate electrodes, calomel electrodes, and silver/silver chloride electrodes. The most commonly used are calomel electrodes and silver/silver chloride electrodes. The role of the reference electrode in the measurement cell is to provide and maintain a  fixed reference potential, so the requirements for the reference electrode are that the potential is stable and reproducible, the temperature coefficient is small, and the polarization potential is small when current flows.

Tips: What is a pH combination electrode?


An electrode that combines a pH glass electrode and a reference electrode is called a pH composite electrode. If the outer shell is plastic, it is called a plastic shell pH composite electrode. The outer shell is glass, it is called a glass pH composite electrode. The biggest advantage of composite electrodes is that they are combined into one and are easy to use. The structure of a pH composite electrode is mainly composed of an electrode bulb, glass support rod, internal reference electrode, internal reference solution, shell, external reference electrode, external reference solution, liquid junction, electrode cap, electrode lead, socket, and so on.
