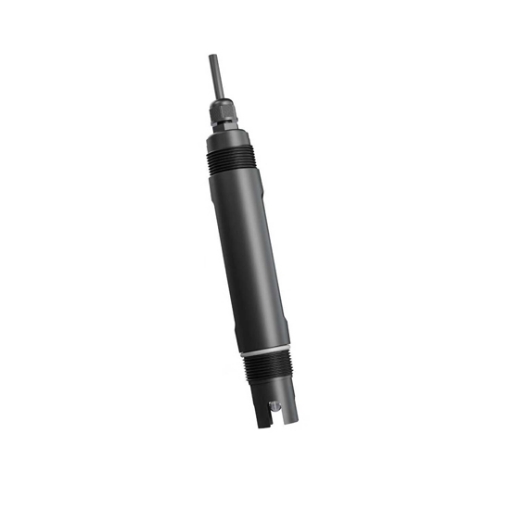

Combination pH Electrode for Wastewater

Combination pH electrode designed for wastewater or chemical industry wastewater treatment, ph probe sensor housing material is PPS/PC, the temperature range 0-60℃ (32-140℉), with stable signal, flexible measurement and application range, ability to transmit signals over long distances of up to 60m.
SKU: SISCO-PHE-5011
*
*
$112.69
i h
Free shipping
Delivery date: 7-12 days
Overview


Combination ph meter electrode for sale, ph probe sensor with pure copper low noise cable wire, which can directly realize 60 meters long distance transmission with small signal loss, applicable to wastewater treatment and water quality monitoring.

pH electrode pipe threads

Upper and lower 3/4NPT pipe threads

  • Easy installation, no sheathing required for conventional testing.
  • Teflon reference fluid, high and low-temperature resistance, acid, and alkali resistance Non-adhesive.

pH electrode glass bulb

New Design Glass Bulb

  • Prevents interference bubbles in the internal buffer.
  • Fast response, accurate measurement, and good stability.
  • No hydrolysis, reliable measurement.

Application

pH Electrode is widely used in the continuous testing and monitoring of pH, ORP and temperature in thermal power, chemical fertilizer, metallurgy, environmental protection, pharmaceutical, biochemical, food, drinking water, etc.

pH meter applications

Specs
Model SISCO-PHETE-PH5011
Weight 1kg
Dimension Length: 152.4mm, diameter: 25.6mm
Measuring range 0-14pH
Accuracy 0.02pH
Temperature range 0-60℃ (32-140℉)
Temperature compensation * Internal temperature sensor (NTC 10K)
Zero position 7±0.2pH
Compressive strength 0.6MPa
Slope ≥96%
Installation size 3/4NPT in both ends
Shell material PPS/PC
Connection Direct lead
Cable length * 5m/10m/15m, or other length less than 50m (need customization)
Service life 6 months


Installation

pH electrode installation

  1. Side wall installation (*The pH electrode must be at an angle of 15 degrees to the liquid surface. Otherwise, it will affect the normal use of the pH electrode.)
  2. The flange mounted at the top
  3. Pipe installation
  4. Top installation
  5. Submersible installation
  6. Flow-through installation

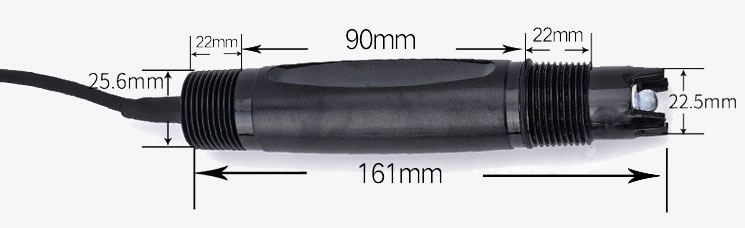

Dimension (unit: mm)

Combination pH electrode dimension

FAQs

Q1: What is a pH electrode?
A1: The pH electrode is also called the pH probe pH sensor. The pH electrode is the part of the pH meter that is in contact with the substance to be measured and is used to measure the electrode potential.

Q2: Why do pH electrodes need to be soaked?
A2: The pH electrode must be soaked before use, because the pH bulb is a special glass membrane with a thin hydrated gel layer on the surface of the glass
membrane, which can only interact with the H+ ions in the solution under fully wet conditions. the response to. At the same time, after soaking the glass
electrode, the asymmetric potential can be greatly reduced and tend to be stable.

Q3: What is a reference electrode?
A3: An electrode with a known and constant electrode potential that does not respond to the activity of hydrogen ions in solution is called the reference electrode. Reference electrodes include mercurous sulfate electrodes, calomel electrodes, and silver/silver chloride electrodes. The most commonly used are calomel electrodes and silver/silver chloride electrodes. The role of the reference electrode in the measurement cell is to provide and maintain a  fixed reference potential, so the requirements for the reference electrode are that the potential is stable and reproducible, the temperature coefficient is small, and the polarization potential is small when current flows.

Tips: How do pH electrodes work?

A pH electrode works by creating an electrical potential between two liquids of different pH when they come into contact with opposite sides of a thin glass membrane called a pH element. This voltage potential is a function of the free acidity or free alkalinity of the solution.
