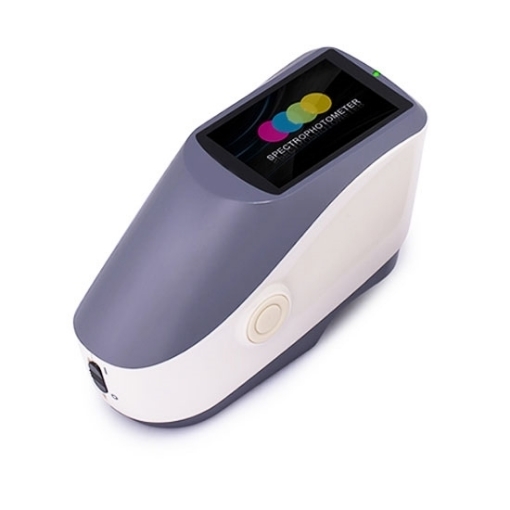

Handheld Spectrophotometer, 4mm/8mm Caliber

High precision portable spectrophotometer colorimeter aperture 4mm or 8mm optional, stable performance, accurate measurement, suitable for paper, printing, ceramics, chemical and other industries, designed to provide accurate color measurement information.
SKU: SISCO-CM-YS3060
*
$5,168.75
i h
Free shipping
Delivery date: 7-12 days
Overview


Colorimeter for sale, with large-capacity storage space, can store more than 30,000 test data, data interface: USB / Bluetooth, dual communication mode, more adaptable, is ideal for laboratory color analysis.

Colorimeter power connector

USB/Blue Tooth

  • Universal USB interface and Bluetooth 84.0 wireless transmission.
  • More convenient data transfer.

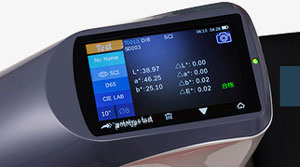

Colorimeter color large screen

Large color screen

  • 3.5-inch color touchscreen.
  • More intuitive and clear display.

Application

The colorimeter can easily achieve accurate color transmission and can also be used as precision color testing equipment. It is widely used in plastic, electronics, paint, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetic and food industries, research institutes, schools and laboratories.

Colorimeter applications

Specs
Model SISCO-CM-YS3060
Optical Geometry Reflect: di:8°, de:8° (diffused illumination, 8-degree viewing angle)
Integrating Sphere Size 48mm
Light Source Combined LED Light, UV Light
Spectrophotometric Mode Concave Grating
Sensor 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400-700nm
Wavelength Interval 10nm
Semiband Width 10nm
Measured Reflectance Range 0-200%
Measuring Aperture Dual Aperture: 10mm/8mm & 5mm/4mm
Specular Component SCI&SCE
Color Space CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
Color Difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter)
Other Colorimetric Index WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313), TI(ASTM E313, CIE/ISO),Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness
Observer Angle 2°/10°
Illuminant D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time 2.6s
Repeatability MAV/SCI: ΔE*≤0.03
Inter-instrument Error MAV/SCI: ΔE*≤0.15
Measurement Mode Single Measurement, Average Measurement
Locating Method Camera View Finder Locating
Battery Li-ion battery. 5000 measurements within 8 hours
Dimension 184*77*105mm
Weight 600g
Illuminant Life Span 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port USB/RS232
Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude<2000m
Storage Environment -20~50℃, 0~85%RH (no condensing)


Note: The user can perform black-and-white calibration through the standard black-and-white box of the instrument and refer to the user manual to complete the calibration independently.


Color Spectrophotometer Accessories

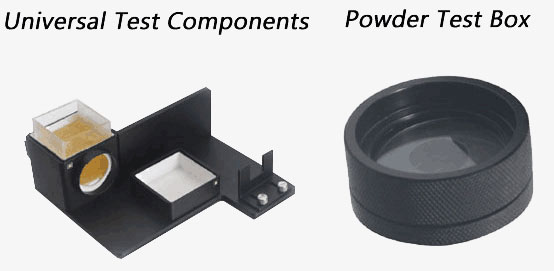

Portable colorimeter accessories

1. Universal Test Components
Features: Powerful accessory with high sensitivity which is used to measure liquid, paste and powder.
Dimension: L*W*H=190x190x85 mm

2. Powder Test Box
Features: Easy to use; Focus on measuring powder.
Dimension: ø50X25mm


Packing List

  • 1 x Spectrophotometer
  • 1 x Φ8 Measuring caliber/Φ4 Measuring caliber
  • 1 x 3 Measuring aperture
  • 1 x Correction box
  • 1 x White work cover
  • 1 x Power adapter line
  • 1 x USB data cable
  • 1 x Bluetooth adapter
  • 1 x Wiping cloth
  • 1 x CD
  • 1 x Instruction manual
  • 1 x Certificate of Warranty
  • 1 x Decoration list
  • 1 x Universal test module (Optional match)
  • 1 x Powder test box (Optional match)
FAQs

A1: How does a colorimeter work?
Q1: Colorimeters rely on the concept of the Beer-Lambert law, which assumes that the absorbance of a substance is proportional to its concentration. For example, the higher the concentration of a solution, the higher the absorbance reading. Many chemical and biological experiments are based on this concept. To obtain a Beer's law curve, several standards (solutions of known concentration) are prepared and their absorbance values are determined using a colorimeter.

A2: What is colorimetry?
Q2: A colorimeter is a device that measures light absorbance (how much light is absorbed) and light transmission (how much light passes through) in a liquid by analyzing the intensity of the color.

A3: What are the limitations of a colorimeter?
Q3: One limitation of chemical colorimeters is that differences in certain substances may lead to inaccurate test results. According to Global Water Instrumentation, because these differences are different for each substance, a chemical colorimeter alone is not a completely foolproof testing device.

Tips: Why use a spectrophotometer in the production process?

In the production process, if the color of the sample is measured with a colorimeter, we will find that the color of the product will change due to the production process. What effect does the production process have on the final color change of the product?

For example, heating causes a certain change in the yellowness, brightness, and gloss of the product. This change may be drastic or gradual. Cooling, which leads to differences in the gloss and brightness of the product; grinding, which leads to differences in the brightness and surface color of the product. Not only that, the production process also contains many factors, such as humidity change, overexposure, molding, extrusion, tumbling, deburring, embossing, and calendering, etc. If these factors are not tested for color Change. Having mastered the production process and knowing some of the factors that cause uncontrolled color changes in the product, the operator can monitor the production process with simple color detection instruments to control the final color of the product.

Therefore, using a handheld spectrophotometer to control the color of the product during the production process is not only economical and time-saving, but it is also important to maintain the reputation of the product in front of customers. Color control is not difficult and can be done at any stage of the production process. However, it is best to start color control as early as possible to ensure that the final color meets the requirements.
