    High Voltage Tester, 380V~110kV

    High voltage tester test voltage level 380V~110kV, probe hook aperture φ60mm, measuring current range 0.1A ~ 6000A. High voltage tester can test high voltage to ground voltage and high voltage line current at the same time as the power test alarm.
    SKU: SISCO-HVT-1800B
    $1,556.86
    i h
    Free shipping
    Delivery date: 7-12 days
    Overview


    Buy an online wireless high voltage tester, test voltage level 380V ~ 110kV, with wireless transmission, sound and light alarm function, data upload function. High voltage detector r is safe, reliable, and fast, and is a necessary tool for power transmission line maintenance.

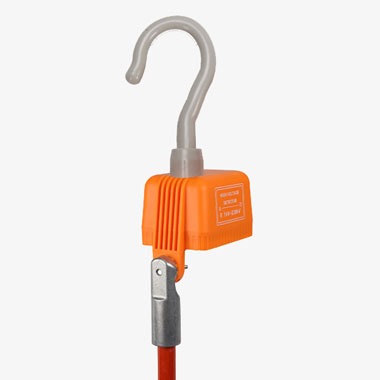

    High voltage alarm

    Hook design is more labor-saving

    • Probe hook diameter φ60mm.
    • Multi-voltage level display, 380V~110kV.
    • Hang the detector on the high-voltage line with an insulated pole to check the electricity and display the voltage and current of the high-voltage line.

    high voltage detector

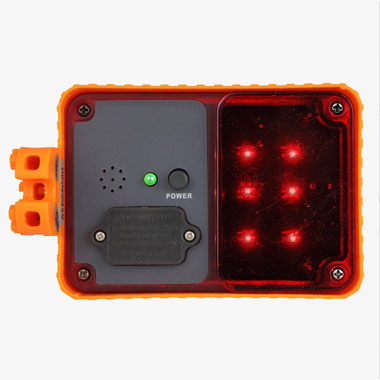

    Outstanding sound and light warning

    • Red light, 6 flashing lights, loud warning.
    • 30 meters wireless transmission, direct view of the detected data, USB can be connected to a computer to read real-time and historical data.

    Application

    Wireless high-voltage electroscope (with voltage indication) is specially manufactured for high-voltage transmission line inspection, high-voltage transmission line-to-ground voltage, induced voltage test and current test. High-voltage electroscopes are widely used in electric power, railways, industrial and mining enterprises and other near-electrical workplaces.

    High voltage tester applications

    Specs
    Model SISCO-ETCR1800B
    Function Wireless high voltage inspection, high voltage line voltage test
    Voltage Level Display 380V, 6.6kV, 10kV, 35kV, 66kV, 110kV
    Display Range of Voltage to Earth 0.1kV~69kV (to earth voltage)
    Check Voltage Range 380V~110kV
    Ground Voltage Display Accuracy ±15%rdg±5dgt
    Current Test  Range 0.1A ~ 6000A, accuracy ± 3% rdg ± 5dgt, resolution 0.1A
    Wireless Frequency 433MHz
    Wireless Transmission Distance 30m straight-line transmission distance
    LCD Size 47mm X 28.5mm (with backlight)
    Electricity Indication the detector has a sound and light indication function, red double flashing light indication, and "beep - beep - beep" beeping sound when checking electricity
    Display Rate 2 times/second
    Data Storage 99 groups (power failure or battery replacement will not lose data)
    Automatic Shutdown About 10 minutes of power on the instrument will automatically shut down
    Low Battery Voltage Indication When the detector battery voltage drops below 7.2V to 0.1V, the green power indicator flashes. When the receiver voltage is lower than 4.8V to 0.1V, the low battery voltage indication low symbol "- +" to remind to replace the battery.
    Rated Current Detector: 75mA max, receiver: 35mA max
    Probe Hook Aperture φ60mm
    Size Receiver: 78mm X 165mm X 42mm, detector 300mm X 237mm X 85mm
    Mass Approx. 660g (including battery), total mass approx. 6kg (including accessories)
    Insulation Rod Length About 4500mm


    Packing List

    • 1 x Detector
    • 1 x Receiver
    • 1 x Probe hook
    • 1 x Probe telescopic Insulation Rod
    • 1 x USB communication cable
    • 4 x Alkaline dry battery
    • 1 x 9V6F66 battery
    • 1 x Toolkit


    Detail

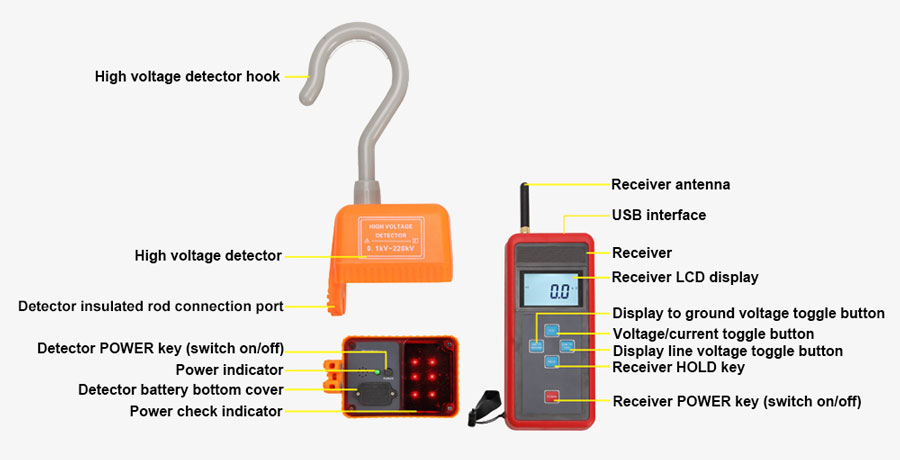

    High voltage tester detail

    Wiring Diagram

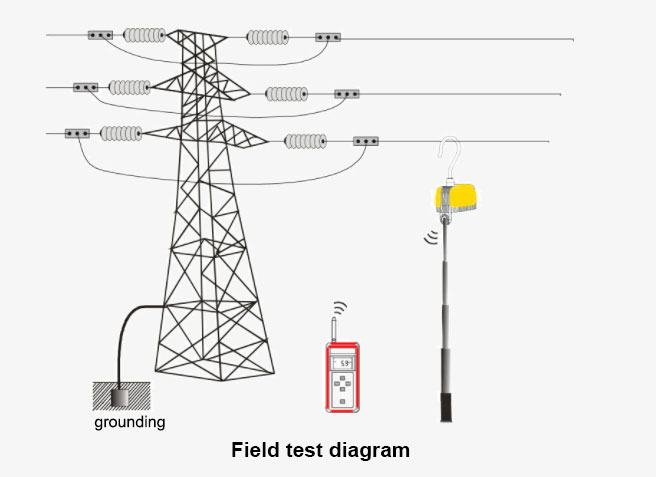

    High voltage tester wiring diagram

    FAQs

    Q1: What is the high voltage tester used for?
    A1: A high voltage tester is widely used in substations, power plants, fire departments, industrial and mining enterprises, electrician maintenance departments for power detection and field electrician work, etc.

    Q2: What is a high-voltage electroscope?
    A2: High-voltage electroscope is a tool used to check whether high-voltage lines and power equipment are live, and is a basic safety tool commonly used in
    substations. The high-voltage electroscope is used to check whether the line or equipment is charged, the purpose is to ensure personal safety.

    Q3: How to divide the high voltage tester level?
    A3: According to the applied voltage level, a high voltage tester can be divided into: 0.1-10KV detector, 6KV, 10KV detector, 35KV, 66KV detector, 110KV, 220KV detector, and 500KV detector.

    Tips: Note on the use of high-voltage detector

    • Put into use the high-voltage detector must be qualified by the electrical test detector, the high-voltage detector must be tested regularly to ensure that its performance is good.
    • Use of high-voltage testers must wear high-voltage insulated gloves, insulated shoes, and supervision.
    • In the use of testers before, one should first test whether the electrical apparatus is good, and effective, should also be in the voltage level of the appropriate charged equipment to test whether the alarm is correct, before the need for grounding equipment to test, prohibit the use of voltage level does not correspond to the testers for testing, so as to avoid the wrong judgment when the field test.
