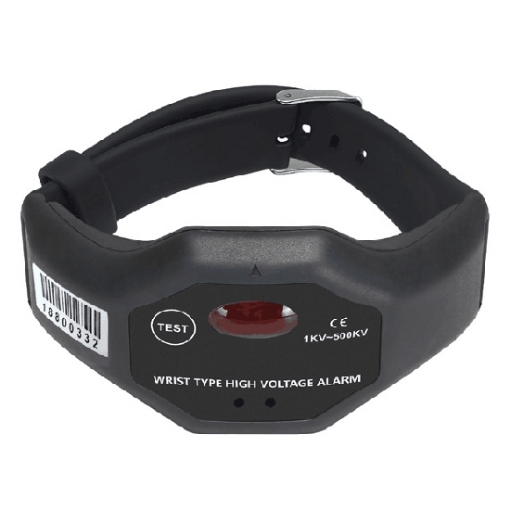

    High Voltage Tester with Alarm, Wrist Type, 1kV~500kV

    High voltage tester with alarm device, alarm voltage range 1kV to 500kV, for close operators to provide a safe, practical, convenient new high voltage alarm. Wrist type high voltage alarm is widely used in electric power, railroad, industrial and mining enterprises and other closed power operations.
    SKU: SISCO-HVT-1860
    $187.69
    i h
    Free shipping
    Delivery date: 7-12 days
    Overview


    Wrist type high voltage alarm adopts non-contact induction technology, accurate alarm, power saving and durable. After the operator wears this alarm, when it is close to the high-voltage charging body at a certain distance, according to the safety distance of the corresponding voltage level, the alarm will sound and light alarm.

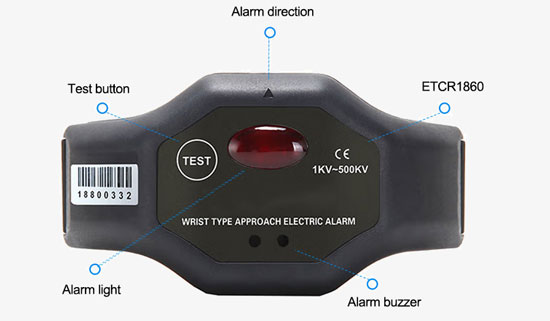

    High voltage detector with alarm

    Sound and light alarm, safe and fast

    • Wrist-type high voltage alarm provides a safe, practical, and convenient new voltage alarm device for high-voltage near power operators.
    • Wrist high voltage tester uses non-contact induction technology, accurate alarm, power saving and durability, and standby time up to 12 months.
    • All-round induction voltage source, automatic trigger detection mode, and sound and light alarm mode, to ensure the safety of personnel working near electricity.


    Application

    A wrist-type high-voltage tester (with voltage indication) is specially manufactured for high-voltage transmission line inspection, high-voltage transmission line-to-ground voltage, induced voltage test, and current test. High-voltage alarms are widely used in electric power, railways, industrial and mining enterprises, and other near-electrical workplaces.

    High voltage tester applications

    Specs
    Model SISCO-ETCR1860
    Power Supply CR1632 (140mAH) button cell 1 section
    Alarm Voltage Range 1kV ~ 500kV
    Operating Frequency 50Hz/60Hz
    Test Mode Non-contact
    Detection Mode Automatic trigger
    Alarm Distance Error ±10cm (under reference conditions)
    Battery Life Continuous operation (sound and light alarm) About 24 hours
    Standby time Approx 12 months
    Alarm Method Indicator light 8000LX LED visible in visible light
    Buzzer 60dB or more (60cm apart)
    Protection Level IP54
    Weight About 38g (including battery)
    Dimension 90mmX40mmX35mm
    Working Temperature and Humidity -10°C~ 40°C; below 80%rh



    High voltage alarm use diagram

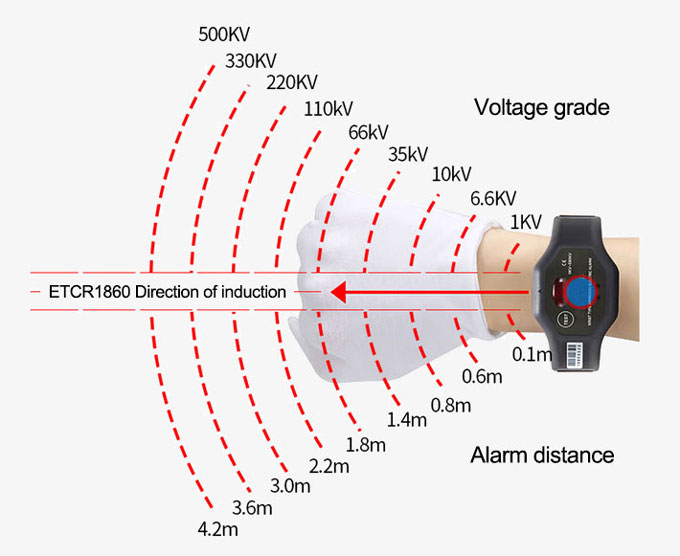

    Voltage Rating and Alarm Distance

    High voltage tester voltage level and alarm distance

    FAQs

    Q1: What is the high voltage tester used for?
    A1: A high voltage tester is widely used in substations, power plants, fire departments, industrial and mining enterprises, electrician maintenance departments for power detection and field electrician work, etc.

    Q2: What is a high-voltage electroscope?
    A2: High-voltage electroscope is a tool used to check whether high-voltage lines and power equipment are live, and is a basic safety tool commonly used in
    substations. The high-voltage electroscope is used to check whether the line or equipment is charged, the purpose is to ensure personal safety.

    Q3: How to divide the high voltage tester level?
    A3: According to the applied voltage level, a high voltage tester can be divided into: 0.1-10KV detector, 6KV, 10KV detector, 35KV, 66KV detector, 110KV, 220KV detector, and 500KV detector.

    Tips: Precautions for using the wrist-type high voltage alarm

    1. Place the wrist alarm on the bare skin of the wrist and hold the case close to the skin so that the triangular symbol on the surface of the alarm faces the direction of the fingertips.
    2. If the alarm is placed on the sleeve of work clothes or on rubber gloves, the sensitivity will be greatly reduced.
    3. When close to a grounded metal structure (such as a transformer), the working distance of the alarm will be greatly reduced.
    4. When the alarm is wet by rain, please remove the battery and blow it dry naturally in a cool place. Do not use the alarm when it is wet. The working distance of the alarm will be greatly shortened, and the alarm may even keep sounding the alarm.
    5. If the alarm is dropped or hit by a strong external force, check the appearance of the alarm and test it by pressing "TEST" to make sure the alarm functions properly.
    6. The alarm-sounding area is covered with a waterproof film, so please do not use pins or other pins to damage it.
    7. If the alarm keeps sound and light indication, it may be affected by the surrounding environment, such as strong induction voltage, static electricity, etc. When the alarm is covered with both hands and shields the surrounding influence, the alarm operation (sound and light) stops, indicating that the alarm is normal.
