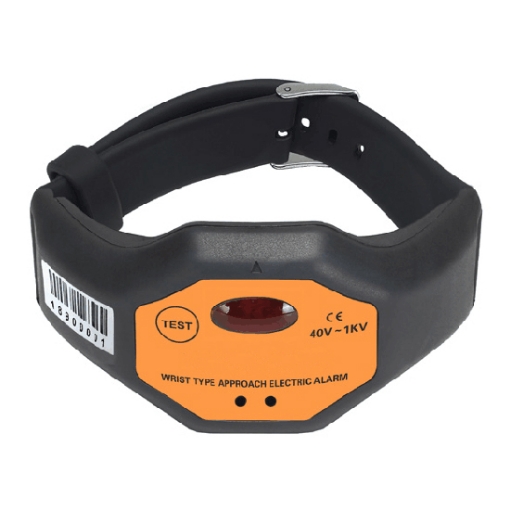

    High Voltage Tester with Alarm, Wrist Type, 40V~1kV

    High voltage tester using non-contact sensing technology, accurate alarm, alarm voltage range 40V ~ 1kV, wrist type high voltage alarm with a unique automatic trigger detection function, which ensures the safety of staff near the power.
    SKU: SISCO-HVT-1860C
    $187.69
    i h
    Free shipping
    Delivery date: 7-12 days
    Overview


    Wrist type high voltage detector for sale, alarm voltage range 40V~1kV, operating frequency 50Hz/60Hz, the convenient high voltage alarm is widely used in electric power, railroads, industrial and mining enterprises and other closed power operations.

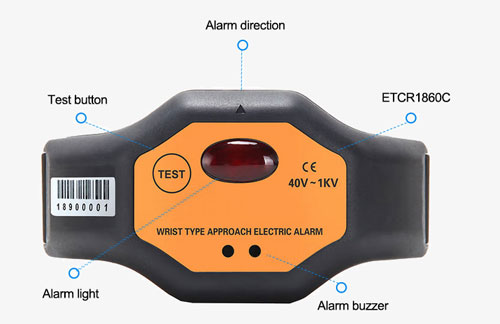

    Wrist type high voltage detector with alarm

    Sound and light alarm, safe and fast

    • Wrist-type high voltage alarm provides a safe, practical, and convenient new voltage alarm device for high-voltage near power operators.
    • Wrist high voltage tester uses non-contact induction technology, accurate alarm, power saving and durability, and standby time up to 12 months.
    • All-round induction voltage source, automatic trigger detection mode, and sound and light alarm mode, to ensure the safety of personnel working near electricity.


    Application

    A non-contact high-voltage tester (with voltage indication) is specially manufactured for high-voltage transmission line inspection, high-voltage transmission line-to-ground voltage, induced voltage test, and current test. High-voltage alarms are widely used in electric power, railways, industrial and mining enterprises, and other near-electrical workplaces.

    High voltage tester applications

    Specs
    Model SISCO-ETCR1860C
    Power Supply CR1632 (140mAH) button cell 1 section
    Alarm Voltage Range 40V ~ 1kV
    Operating Frequency 50Hz/60Hz
    Test Mode Non-contact
    Detection Mode Automatic trigger
    Alarm Distance Error ±10cm (under reference conditions)
    Battery Life Continuous operation (sound and light alarm) About 24 hours
    Standby time Approx 12 months
    Alarm Method Indicator light 8000LX LED visible in visible light
    Buzzer 60dB or more (60cm apart)
    Protection Level IP54
    Weight About 38g (including battery)
    Dimension 90mmX40mmX35mm
    Working Temperature and Humidity -10°C~ 40°C; below 80%rh

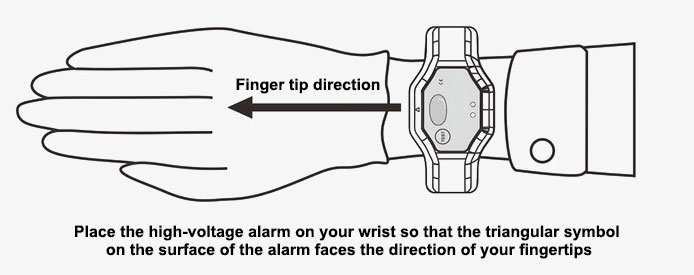

    High voltage alarm use diagram

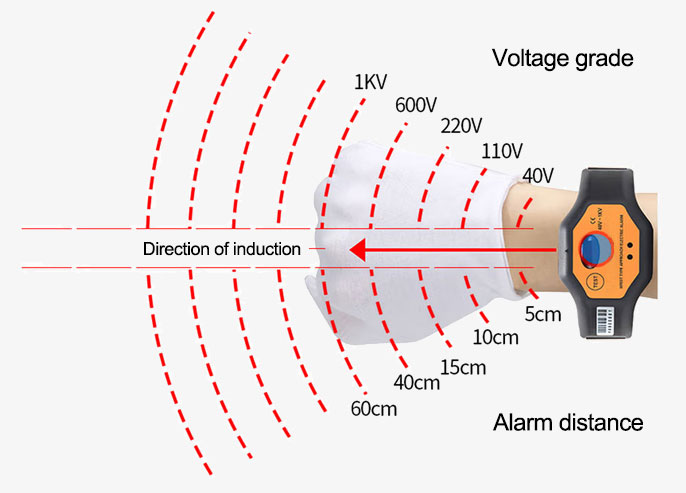

    Voltage Rating and Alarm Distance

    Wrist type high voltage alarm voltage level and alarm distance

    FAQs

    Q1: What is the high voltage tester used for?
    A1: A high voltage tester is widely used in substations, power plants, fire departments, industrial and mining enterprises, electrician maintenance departments for power detection and field electrician work, etc.

    Q2: What is a high-voltage electroscope?
    A2: High-voltage electroscope is a tool used to check whether high-voltage lines and power equipment are live, and is a basic safety tool commonly used in
    substations. The high-voltage electroscope is used to check whether the line or equipment is charged, the purpose is to ensure personal safety.

    Q3: How to divide the high voltage tester level?
    A3: According to the applied voltage level, a high voltage tester can be divided into: 0.1-10KV detector, 6KV, 10KV detector, 35KV, 66KV detector, 110KV, 220KV detector, and 500KV detector.

    Tips: Wrist-type high voltage tester troubleshooting

    • The wrist strap lines off, but the wrist strap can be worn.
    • The wrist strap and hand contact is loose, the wrist strap is close to human skin.
    • Dry skin, skin using anti-static oil.
    • The wristband is damaged, replace the wristband.
    • Access to the earth line off, the grounding wire is connected
    • If the ground wire is not discharged, check the grounding system.
