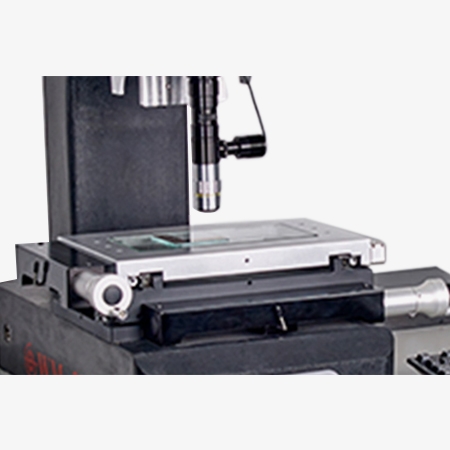

This manual optical measuring device integrates intelligent edge detection, high-definition imaging, fast autofocus, color analysis, and laser scanning. It also supports 2D CAD file generation through contour scanning, as well as high-resolution imaging (up to 20 megapixels) and photo stitching, making the vision measuring system an ideal solution for optical measurement tasks in demanding environments.
Precision Engineering for Reliable Measurement
- The granite construction of the X and Y axes ensures a vertical alignment that maintains measuring accuracy of (3 + L/200) μm, even when workpieces are not perfectly aligned.
- A unique dual-layer granite table of this optical measuring machine minimizes mechanical error, guaranteeing accuracy during horizontal movement.
- Equipped with a continuous zoom optical lens, the video measuring system allows seamless switching between magnification levels without recalibration, enhancing operational efficiency.
- A foot switch is included for hands-free control, reducing manual input and increasing ease of use during repetitive tasks.
Smart Optical Measurement System and Versatile Illumination
- Our video measuring mahine supports manual zoom lenses that automatically retrieve corresponding calibration parameters when switching magnification, reducing measurement errors.
- High-precision 0.5μm linear glass scales on X and Y axes provide excellent repeatability and eliminate backlash and zero-position issues.
- The device features a SONY high-resolution CCD camera that delivers clear and detailed measurement imagery.
- Offers multiple lighting options including surface light, LED contour light, coaxial illumination, and an optional programmable 5-ring 8-zone light source for flexible illumination under various inspection conditions.
Applications
Video measuring machines are widely applied in precision industries like PCB manufacturing, new energy, semiconductors, and 3C electronics. They ensure accurate inspection of circuit layouts, battery components, solar cells, wafers, and phone housings. With micron-level, non-contact measurement, these systems help improve product consistency, assembly quality, and dimensional accuracy across various high-performance applications.
New Energy
Semiconductors
3C Electronics
PCB Manufacturing
Â

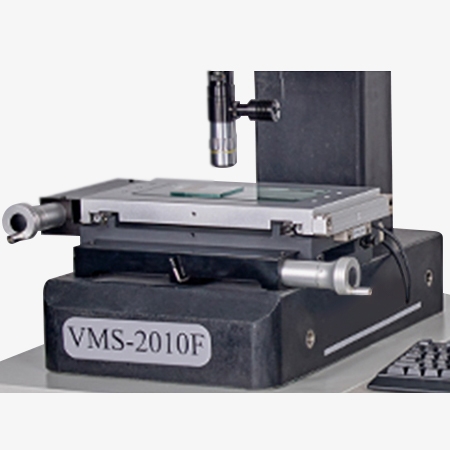

| Model | SISCO-VMM-VMS-2010F | |
| Worktable | ||
| X/Y Axis Travel | 200 × 100 (mm) | |
| Z Axis Travel | Effective space: 245mm; Focusing travel: 200mm; Working distance: 90mm | |
| Metal Stage Size | 350 × 220 (mm) | |
| Glass Stage Size | 230 × 130 (mm) | |
| Transmission System | X/Y-axis with linear shaft drive, Z-axis with optical shaft drive | |
| Measuring Servo Drive System | ||
| Scale Resolution | 0.0005 mm (0.5 μm) for X/Y/Z axes | |
| Measurement Accuracy | ≤ 3 μm + L/200 | |
| Repeatability | ≤ 3 μm | |
| Multifunctional Data Processor | Capable of measuring points, lines, arcs, circles, angles, etc. | |
| Imaging System | ||
| Camera | SONY CCD, Video Magnification: 20–240x, Measuring Range: 9.0 mm–1.35 mm | |
| Lens | High-definition motorized zoom lens, Continuous magnification: 0.7–4.5x | |
| Optional 0.5x Objective Lens | Total magnification: 10–120x | |
| Optional 2x Objective Lens | Total magnification: 40–480x | |
| Illumination System | ||
| Light Source | Surface and contour cold light sources with adjustable brightness and long lifespan | |
| Dimensions & Weight | ||
| Machine Dimensions | 500 × 700 × 1100 (mm) | |
| Power Supply & Power Consumption | 220V / 50Hz, 800W | |
| Glass Load Capacity | 30 kg | |
| Machine Weight | 150 kg | |
Q1: What is an example of a vision machine system?
A1: An example of a video machine system is a video measuring machine (VMM) used in quality control for precision parts. It uses a high-resolution camera, telecentric lenses, and intelligent software to automatically identify and measure features such as holes, edges, and contours. This type of optical measurement machine is commonly applied in the electronics, automotive, and metalworking industries.
Q2: How does machine vision work?
A2: A machine vision system works by capturing images of a part using cameras and lighting, then processing those images with software algorithms to detect, measure, and analyze geometric features. In a VMM measuring machine, for instance, the system automatically locates edges and reference points, allowing it to perform high-precision, repeatable measurements without physical contact. It converts visual data into actionable dimensional data in real time.
Q3: What is the application of the VMM measuring machine?
A3: The VMM (Video Measuring Machine) is widely used for non-contact precision measurement in industries such as electronics, aerospace, medical devices, plastic molding, and tooling. It is ideal for measuring the dimensions, angles, radii, flatness, and contours of micro-components. The optical inspection system enables fast and accurate detection of deviations in parts, ensuring they meet specified tolerances.
Tips: How to measure the angle in the VMM inspection machine?
To measure angles using a VMM inspection machine, follow these steps:
- Place the part on the measurement platform and use the live video feed to align the reference points.
- Select the angle measurement function in the VMM software.
- Click on two intersecting lines or edges, the system will automatically calculate the angle between them using sub-pixel edge detection.
- Save the results, or generate an inspection report in formats such as PDF or Excel.
Ensure the edges are visible with appropriate lighting (e.g., coaxial or ring light) to achieve optimal angle measurement accuracy.
