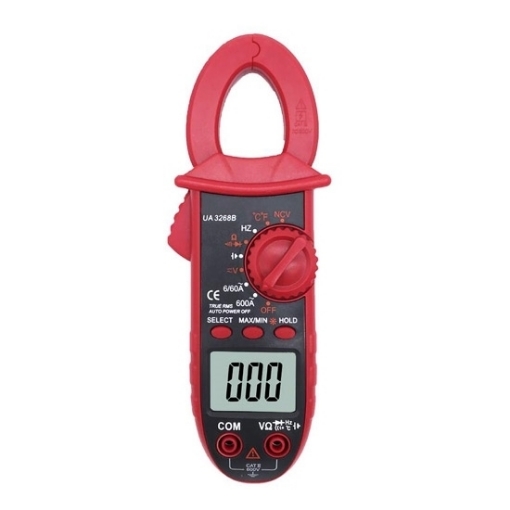

Digital multimeter/clamp meter for sale, AC current range 0-600A, TRMS/NCV/temperature/capacitance function, maximum jaw size 28mm, small size for easy portability, fine jaw structure design, making good repeatability when measuring.
Data hold key
- Used to lock the current measurement value.
- When the real-time value needs to be maintained, press the HOLD key to judge and record.
- Function range knob, accurate gear.
LED display
- Display high-definition backlight, low voltage display.
- Wear-resistant silicone case for long service life.
- Pen socket, is smooth and stable.
Application
The clamp meter is one of the necessary test tools in daily maintenance work, mainly used to test voltage, current, frequency and other related parameters, requiring its high test resolution, test accuracy, and more test functions. Applications mainly include industrial control, industrial equipment, commercial, industrial, and residential electrical systems, and HVAC.
| Basics | Model | SISCO-UA3268B | |
| Weight | 160g | ||
| Size (L*W*H) | 185*51*25mm | ||
| Display | 4 digit LCD display | ||
| Maximum display value | 1999 | ||
| Power supply | DC 3V, 2 AAA batteries | ||
| Maximum jaw opening size | 28mm | ||
| Woring environment | Temperature: 5℃~35℃ (41℉~95℉), relative humidity:＜75% | ||
| Storage temperature | -10℃~+50℃ (14℉~122℉) | ||
| Accessories | A pair of test probes, a pair of temperature probes, a user manual, 2 AAA batteries | ||
| Functions | Item | Range | Accuracy |
| AC current | 600A | ±(1.5%+5 digits) | |
| DC voltage | 600V | ±(1.0%+5 digits) | |
| AC voltage | 600V | ±(1.2%+5 digits) | |
| Resistance | 20MΩ | ±(1.0%+2 digits) | |
| Frequency | 100kHz | ±(1.5%+5 digits) | |
| Capacitance | 100mF | ±(4.0%+3 digits) | |
| Temperature | -40℃~+1000℃ (-40℉~1832℉) | ±(1.0%+3 digits) | |
| Special functions | TRMS | True RMS measurement for sine wave signal | |
| NCV | Non-contact voltage test | ||
| Diode test | Display forward voltage value of diode | ||
| On-off buzzer | Continuity test buzzer | ||
| Data hold | Hold the reading when taking a measurement | ||
| Automatic power off | Automatic power off when 15 minutes no operation | ||
| Overload protection | Overload protection for 100% range | ||
| Range selection | Automatic range selection and manual range selection | ||
| Backlight | Backlight for LCD display | ||
| Inspection light | Inspection light for clamp operation | ||
Q1: What is a clamp meter?
Q1: A clamp meter is a device used to measure current conveniently and safely. It is very efficient to measure current without using test leads. To measure
current, all you have to do is place a wire in the jaws of the clamp meter. When current flows through a conductor, a magnetic field is created. The device helps to detect magnetic fields so that it can provide corresponding current readings, the sisco clamp meter can also be used as a multimeter.
Q2: How a clamp meter works?
A2: Clamp meters work on the principle of magnetic induction and measure alternating current without contact. Like every conductor, the current flowing
through the wire creates a magnetic field. Hall effect sensors detect the magnetic field produced by the current, which in turn creates a small voltage
across the sensor.
Q3: How often does a clamp meter need to be calibrated?
A3: A clamp meter typically needs to be calibrated annually to ensure it continues to measure within sisco's specifications.
Tips: Clamp meter NCV function
Set the functional range switch to the NCV position. At this time, the digital clamp meter displays 'NCV' and '----' symbols, and the top of the clamp meter is close to the mains phase line, power switch, and socket waiting for the object to be measured. When the detected voltage is greater than 110V (AC RMS), the meter will light up the corresponding signal strength indicator (high, medium, low) according to the detected signal strength, and the buzzer will alarm at different frequencies.
