Overview

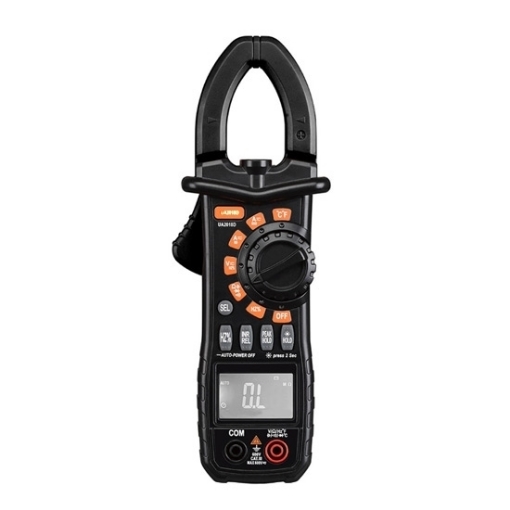

The digital clamp meter has an AC/DC current (inrush current) range of 0-600A, TRMS/Temperature/Capacitance function, and a maximum jaw opening size of 36mm, the jaw opening measures the current in a conductor without contacting or interrupting the circuit. Its slim and compact size makes it easy to operate in tight spaces.
Backlight function
- Press the HOLD button to turn on the backlight function after two seconds for clearer reading.
- For a low-light working environment or at night, turn on mA/A and press HOLD for two seconds to turn on the LED flashlight.
Switch buzzer test
- Turn on the switch or press the FUNC button, the instrument emits a bee sound (< 0.25s).
- Full range, overload protection.
Application
The digital clamp meter is one of the necessary test tools in daily maintenance work, mainly used to test voltage, current, frequency and other related parameters, requiring its high test resolution, test accuracy, and more test functions. Applications mainly include industrial control, industrial equipment, commercial, industrial, and residential electrical systems, and HVAC.
FAQs
Q1: What is a clamp meter?
Q1: A clamp meter is a device used to measure current conveniently and safely. It is very efficient to measure current without using test leads. To measure
current, all you have to do is place a wire in the jaws of the clamp meter. When current flows through a conductor, a magnetic field is created. The device helps to detect magnetic fields so that it can provide corresponding current readings, the sisco clamp meter can also be used as a multimeter.
Q2: How a clamp meter works?
A2: Clamp meters work on the principle of magnetic induction and measure alternating current without contact. Like every conductor, the current flowing
through the wire creates a magnetic field. Hall effect sensors detect the magnetic field produced by the current, which in turn creates a small voltage
across the sensor.
Q3: How often does a clamp meter need to be calibrated?
A3: A clamp meter typically needs to be calibrated annually to ensure it continues to measure within sisco's specifications.
Tips: How to use the capacitance function of the clamp meter?
To avoid damage to the clamp meter or the device under test, disconnect all power to the circuit under test and completely discharge all high voltage capacitors before measuring capacitance. Use the DC voltage function to determine if the capacitors are discharged.
- Turn the rotary dial to the capacitance function.
- Plug the black test lead into the COM jack and the red test lead into the capacitor jack.
- After the capacitors are completely discharged, connect the other ends of the red and black test leads to the two ends of the capacitor under test. The measured capacitance value is read by the LCD display.
Warranty
Thank you for buying industrial test and measurement equipment on sisco.com, all products sold by sisco and the partner cover a 12 months warranty, effective from the date of receiving the products.
What is covered?
sisco is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.
What is not covered?
- Product purchased from anyone other than a sisco store or a sisco authorized reseller.
- Expendable parts.
- Routine cleaning or normal cosmetic and mechanical wear.
- Damage from misuse, abuse or neglect.
- Damage from use of parts other than sisco approved.
- Damage from use outside the product’s usage or storage parameters.
- Damage from use of parts not sold by sisco.
- Damage from modification or incorporation into other products.
- Damage from repair or replacement of warranted parts by a service provider other than a sisco authorized service provider.
- Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
