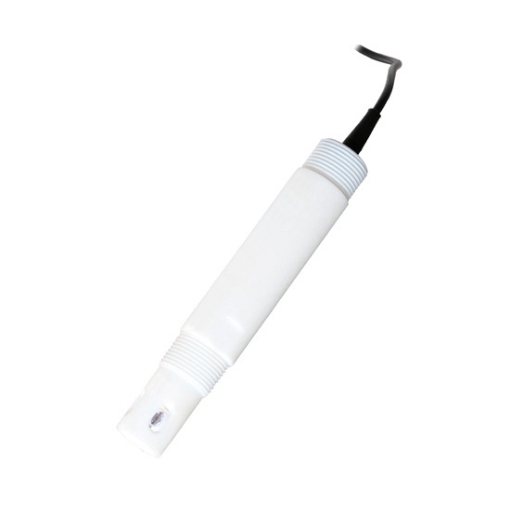

pH Electrode for Strong Acid/Alkali/High Temperature

PTFE pH electrode measuring range 0-14pH, suitable for strong acid, strong alkali, high temperature environment, pH probe measuring data accurately, good corrosion resistance, high quality low noise cable can realize long distance signal transmission.
SKU: SISCO-PHE-5013A
*
*
$179.92
i h
Free shipping
Delivery date: 7-12 days
Overview


The pH electrode is designed with a PTFE shell, which can be used in harsh environments, such as strong acid and alkali. The pH electrode is widely used in industrial wastewater, strong acid and alkali, surface cleaning, and waste gas treatment.

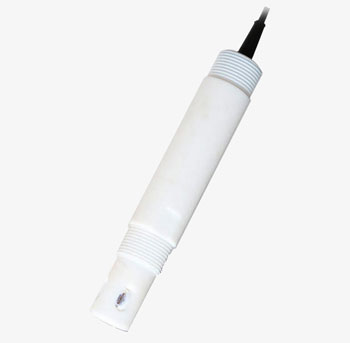

PTFE pH electrode

Resistant to strong acid and alkali corrosion, online pH measurement

  • Special for strong acid and alkali, good corrosion resistance.
  • Low-impedance glass-sensitive film.
  • More accurate and stable measurement data.
  • The high-quality low-noise cable can achieve 60m long-distance signal transmission.



Application

pH Electrode is widely used in the continuous testing and monitoring of pH, ORP and temperature in thermal power, chemical fertilizer, metallurgy, environmental protection, pharmaceutical, biochemical, food, drinking water, etc.

pH meter applications

Specs
Model SISCO-PHETE-PH5013A
Weight 1kg
Dimension Length: 158mm, diameter: 25.4mm
Measuring range 0-14pH
Accuracy 0.02pH
Temperature range 0-60℃ (32-140℉)
Temperature compensation * Internal temperature sensor (NTC 10K)
Zero position 7±0.3pH
Compressive strength 0.6MPa
Response time 15s
Installation size 3/4NPT in both ends
Shell material PTFE
Connection Direct lead
Cable length * 5m/10m/15m, or other length less than 50m (need customization)
Service life 6 months


Installation

pH electrode installation

  1. Side wall installation (*The pH electrode must be at an angle of 15 degrees to the liquid surface. Otherwise, it will affect the normal use of the pH electrode.)
  2. The flange mounted at the top
  3. Pipe installation
  4. Top installation
  5. Submersible installation
  6. Flow-through installation

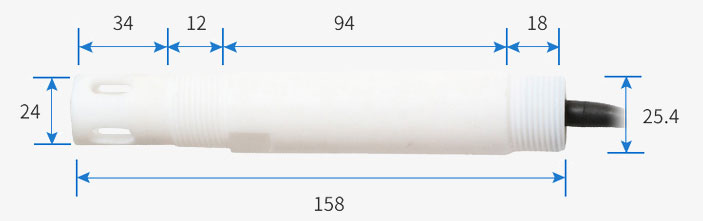

Dimension (unit: mm)

PTFE pH electrode dimension

FAQs

Q1: What is a pH electrode?
A1: The pH electrode is also called the pH probe pH sensor. The pH electrode is the part of the pH meter that is in contact with the substance to be measured and is used to measure the electrode potential.

Q2: Why do pH electrodes need to be soaked?
A2: The pH electrode must be soaked before use, because the pH bulb is a special glass membrane with a thin hydrated gel layer on the surface of the glass
membrane, which can only interact with the H+ ions in the solution under fully wet conditions. the response to. At the same time, after soaking the glass
electrode, the asymmetric potential can be greatly reduced and tend to be stable.

Q3: What is a reference electrode?
A3: An electrode with a known and constant electrode potential that does not respond to the activity of hydrogen ions in solution is called the reference electrode. Reference electrodes include mercurous sulfate electrodes, calomel electrodes, and silver/silver chloride electrodes. The most commonly used are calomel electrodes and silver/silver chloride electrodes. The role of the reference electrode in the measurement cell is to provide and maintain a  fixed reference potential, so the requirements for the reference electrode are that the potential is stable and reproducible, the temperature coefficient is small, and the polarization potential is small when current flows.

Tips: How to prepare pH buffer solution?

For general pH measurement, you can use a set of pH buffer reagents (250ml can be prepared). To prepare the solution, use deionized water and boil it for 15~30 minutes in advance to remove the dissolved carbon dioxide. Cut open the plastic bag and pour the reagent into the beaker, make it dissolve with the appropriate amount of deionized water and rinse the bag, then pour it into a 250ml volumetric flask, dilute it to the scale, and trace it well.
