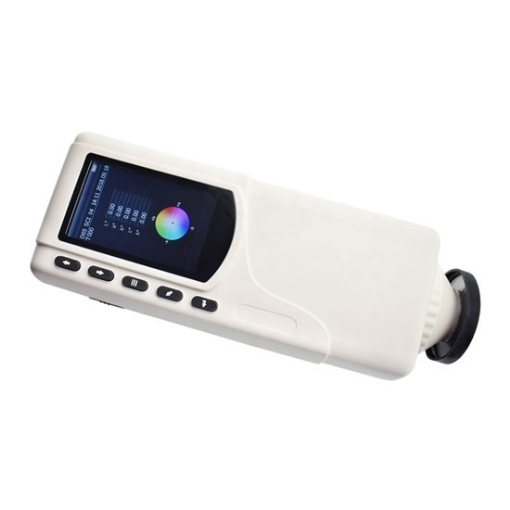

Overview
A pocket colorimeter is easy and convenient to use, 4mm measuring aperture, portable structure, suitable for more measurement occasions, colorimeter built-in whiteboard parameters, no need for black and white board correction, widely used in paper, printing, ceramics, chemical, textile, printing and dyeing industries.

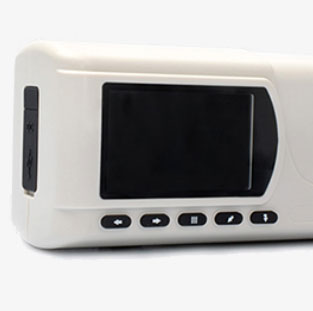

Function button
- Humanized function key design.
- Reliable quality, simple and durable.
- Ergonomic structure design, easy to operate.

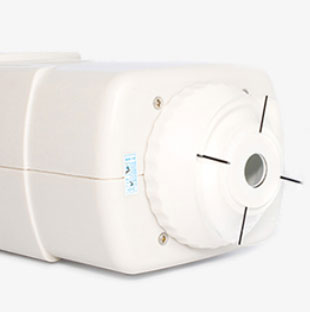

Measuring diameter
- 4mm Measuring diameter.
- Light and cross dual positioning function.
- Suitable for more measurement occasions.
Application
The colorimeter can easily achieve accurate color transmission and can also be used as precision color testing equipment. It is widely used in plastic, electronics, paint, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetic and food industries, research institutes, schools and laboratories.
Specs
| Model |
SISCO-CM-NR110 |
| Illuminating/Viewing Geometry |
8/d |
| Measuring Aperture |
φ4mm |
| Errors Between Each Equipment |
≤0.80 E*ab |
| Repeatability |
Standard deviation within E *ab 0.08, Average of 30 measurements of, Standard white plate |
| Detector |
Silicon photoelectric diode |
| Locating |
Illuminating Locating/Cross Locating |
| Measurement End Face |
Large stable end-face and small concave-convex end-face |
| Color Space |
CIEL*a*b*C*h* CIEL*a*b*, CIEXYZ |
| Color Difference Formula |
E*ab, L*a*b* E*C*h* |
| Light Source |
D65 |
| Light Source Device |
LED blue light excitation |
| Weight |
450g |
| Power source |
Rechargeable lithium-ion battery 3.7V@3200mAh |
| Lamp Life |
5 years, more than 1.6 million measurements |
| Charging Time |
8 hours--100% electricity |
| Connector |
USB/RS232 |
| Operating Environment |
0~40℃, 0~85%RH (no condensing), Altitude<2000m |
| Dimension |
205×67×80mm |
Note: The user can perform black-and-white calibration through the standard black-and-white box of the instrument and refer to the user manual to complete the calibration independently.
Packing List
- 1 x Colorimeter
- 1 x Flat bottom measurement
- 1 x Tip mouth measurement caliber
- 1 x Whiteboard calibration board
- 1 x Caliber protection cover
- 1 x Wristband
- 1 x Charger
- 1 x Data line
- 1 x Instruction manual
- 1 x Software disc
- 1 x Warranty Card
- 1 x Carrying case
- 1 x Micro printer
- 1 x Powder test box
FAQs
A1: How does a colorimeter work?
Q1: Colorimeters rely on the concept of the Beer-Lambert law, which assumes that the absorbance of a substance is proportional to its concentration. For example, the higher the concentration of a solution, the higher the absorbance reading. Many chemical and biological experiments are based on this concept. To obtain a Beer's law curve, several standards (solutions of known concentration) are prepared and their absorbance values are determined using a colorimeter.
A2: What is colorimetry?
Q2: A colorimeter is a device that measures light absorbance (how much light is absorbed) and light transmission (how much light passes through) in a liquid by analyzing the intensity of the color.
A3: What are the limitations of a colorimeter?
Q3: One limitation of chemical colorimeters is that differences in certain substances may lead to inaccurate test results. According to Global Water Instrumentation, because these differences are different for each substance, a chemical colorimeter alone is not a completely foolproof testing device.
Tips: How does a pocket colorimeter measure color?
In a pocket colorimeter, a beam of light with a specific wavelength is passed through a series of lenses that direct colored light into the measurement device. This analyzes the color compared to existing standards. The microprocessor then calculates the absorbance or percent light transmission.
