Split Core Current Transformer, 100mA DC, 25mm

The split core current transformer for online detection of DC leakage current, range of 0.0mA ~ 100mA DC, power supply 12V DC, wide application in DC power supply system busbar, and each branch insulation condition real-time monitoring.

SKU: SISCO-SCCT-25D

$187.59

Qty:

i h

Free shipping

Delivery date: 7-12 days

You May Also Like

Split Core Current Transformer, 100mA DC, 10mm

The split core current transformer is a device for high-precision online detection of DC leakage current, with a range of 100mA DC, a closing size of 10mm, and an accuracy level of 3.0. The range, output signal, and output interface of the split core current transformer is available for customization.

$168.75

Split Core Current Transformer, 20A AC, 10mm

Split core current transformer measuring range 0.00mA to 20A AC, CT size Φ10mm, accuracy class 0.5, double shielded, suitable for complex interference environments. The Leakage current transformer provides a cost effective way to measure current without disconnecting the conductor, thus reducing installation and commissioning time.

$123.69

Split Core Current Transformer, 30A AC, 25mm

30A split high precision leakage current sensor opening size 25mm, resolution 0.01mA AC, accuracy level 1, Split core current transformer enables quick connection to phase detection analyzers, industrial control devices, data loggers, oscilloscopes, high-precision digital multi-meters, etc.

$126.98

Split Core Current Transformer, 60A AC, 40mm

Split core current transformer jaw size 40mm, range 60A AC, able to detect AC leakage current, high harmonic current, phase, electrical energy, power, power factor, etc. Split current sensor provides safe and fast current measurement without disconnecting the conductor.

$168.76

Overview
Specs
FAQs
Warranty
Reviews

Overview

The split core current sensor is suitable for online detection of high-precision DC leakage current and DC current, with a jaw size of Φ10mm and a range of DC 0.0mA to 100mA. sisco split core current transformer makes it easy to use and can be connected to industrial control equipment, data loggers, oscilloscopes, high-precision digital multimeters, and other equipment.

Non-contact measurement is convenient, fast, and safe.

Open-close structure, no need to disconnect the measured line without power failure, especially suitable for online installation. Non-contact measurement, is convenient, fast, and safe.
sisco split core current transformer adopts PoMo alloy core, CT double shielding technology, stable performance and high precision, strong anti-interference ability, suitable for complex interference environment.
The range, ratio, and output interface of the sensor can be customized according to customer requirements.

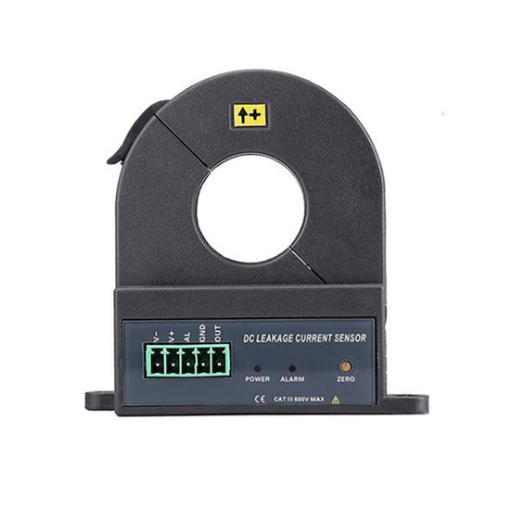

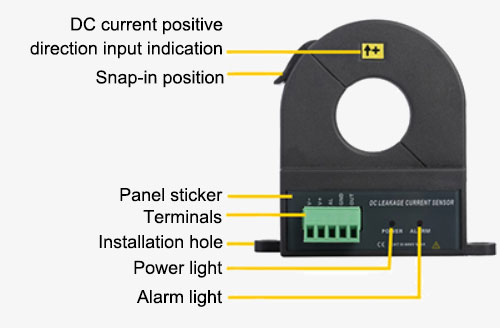

Output interface: 4-wire or 5P terminals (V- power negative, V+ power positive, AL alarm light control terminal, GND power and output ground, 0UT output terminal)

Application

High-precision split current transformers are an indispensable accessory for small, medium, and large electronic companies. The sisco slip current transformer is suitable for use in power equipment testing, communications and telecommunications, railway and oilfield monitoring, building and construction companies, research and teaching units, industrial and mining records, and other fields.

Clamp-on current transformer applications

Specs

Model	SISCO-ETCR025KD
Power	±12V DC
Range	0.0mA～100mA AC
Resolution	0.01mA AC
Accuracy Grade	±3.0%
Phase Error	≤2°
Variable Ratio	800:1
CT Size	φ25mm
Signal Output	50mV/1mA
Shielding	Double shielding, suitable for complex interference environment
Output Mode	Induction current output
Output Interface	4 pole cable
Safety Level	CATI600V
Dimension	53mm x 42mmx 28mm
Mass	75g
Working Temperature	-15°C~ 50°C
Dielectric Strength	AC 3700V/rms (between core and case)

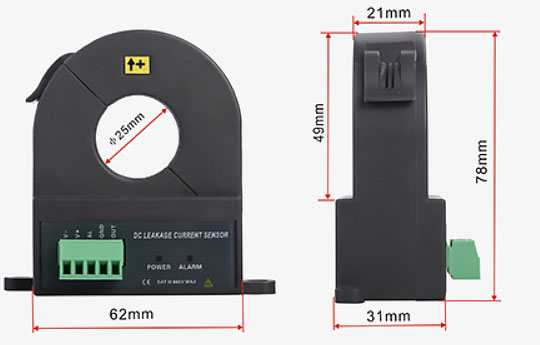

Dimension Unit (mm)

FAQs

Q1: What is a split-core current transformer?
A1: Split core current transformer is made of high strength PVC shell, fully cast busbar type structure. a split core current transformer is directly stuck on the cable with three sexual rubber rings against the cable and the cable one. The transformer core uses better silicon steel rolled, the secondary wire evenly wound in the core. Transformers for the open and closed structures can be installed without cutting the cable.

Q2: What is the meaning of the circles of the split core current transformer?
A2: On electrical system diagrams, a small circle is often used to represent a winding, and a circle is used to represent a winding. If you have two circles in a series, that means that the open and closed current transformer has two windings. If you have three circles in a series, that means you have three windings.

Q3: What is a split core current transformer error?
A3: Due to the structure of the split core current transformer core and material properties, the current transformer has an excitation current I0, which makes it produces errors.

Tips: What is the relationship between the primary winding and the secondary circuit of the current transformer?

Primary winding and high-voltage circuit in series, depending only on the high-voltage circuit current where it is located, and the secondary load size has nothing to do with it.
The secondary circuit is not allowed to open circuit, otherwise, it will produce dangerous high voltage, endangering personal and equipment safety.
The secondary circuit must have a point of direct grounding to prevent high voltage to the ground after the insulation breakdown of primary and secondary windings, but only a point of grounding.
