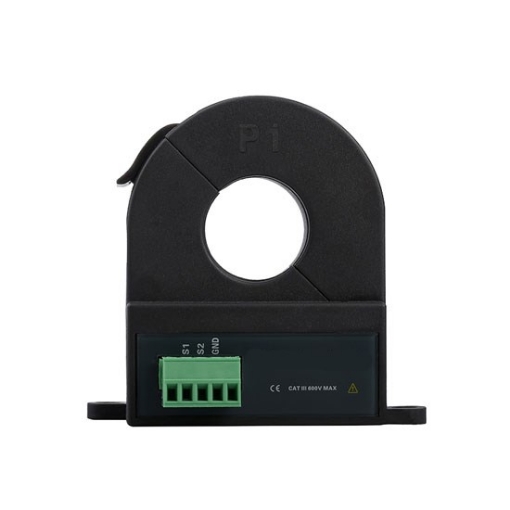

Split Core Current Transformer, 30A AC, 25mm

30A split high precision leakage current sensor opening size 25mm, resolution 0.01mA AC, accuracy level 1, Split core current transformer enables quick connection to phase detection analyzers, industrial control devices, data loggers, oscilloscopes, high-precision digital multi-meters, etc.

SKU: SISCO-SCCT-25

$126.98

Qty:

i h

Free shipping

Delivery date: 7-12 days

Overview
Specs
FAQs
Warranty
Reviews

Overview

The split core current transformer has a measuring range of 0.00mA～30A AC, CT size of 25mm, and an accuracy grade of 0.5. Clamp the live wire and neutral wire together at the same time to measure the leakage current of cables and electrical equipment. The high frequency current transformer is suitable for energy management control and metering applications.

Non-contact measurement is convenient, fast, and safe.

Open-close structure, no need to disconnect the measured line without power failure, especially suitable for online installation. Non-contact measurement, is convenient, fast, and safe.
sisco split core current transformer adopts PoMo alloy core, CT double shielding technology, stable performance and high precision, strong anti-interference ability, suitable for complex interference environment.
The range, ratio, and output interface of the sensor can be customized according to customer requirements.
A split core current transformer enables to clamp of the fire wire and zero wire together to measure the leakage current of cable wires and electrical equipment.
The split core current transformer is available with either a current signal or a voltage signal.

Application

High-precision split current transformers are an indispensable accessory for small, medium, and large electronic companies. The sisco slip current transformer is suitable for use in power equipment testing, communications and telecommunications, railway and oilfield monitoring, building and construction companies, research and teaching units, industrial and mining records, and other fields.

Clamp-on current transformer applications

Specs

Model	SISCO-ETCR025K
Range	0.00mA～30A AC
Resolution	0.01mA AC
Accuracy Grade	1
Phase Error	≤2°
Variable Ratio	800:1
CT Size	φ10mm
Secondary Load	≤10Ω
Shielding	Double shielding, suitable for complex interference environment
Output Mode	Induction current output
Output Interface	2-core shielded line 2M
Frequency	10Hz~100KHz
Safety Level	CATI600V
Dimension	78mm x 82mmx 31mm
Mass	120g
Working Temperature	-15°C~ 50°C
Dielectric Strength	AC 3700V/rms (between core and case)

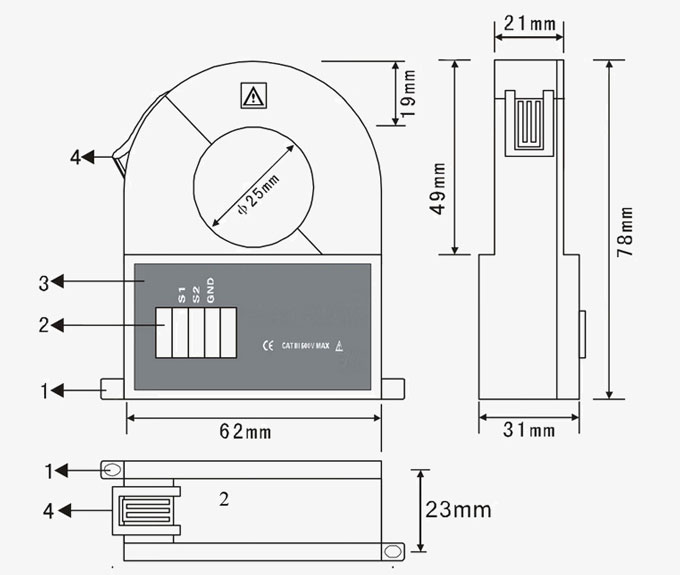

Dimension Unit (mm)

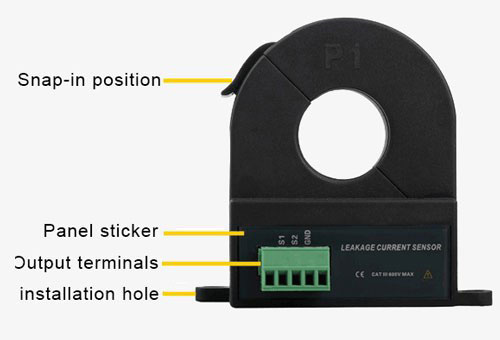

Mounting hole (φ4mmx6mm)
Output terminals (S1, S2 coil tap terminal, GND shield terminal)
Panel lamination
Snap position

FAQs

Q1: What is a split-core current transformer?
A1: Split core current transformer is made of high strength PVC shell, fully cast busbar type structure. a split core current transformer is directly stuck on the cable with three sexual rubber rings against the cable and the cable one. The transformer core uses better silicon steel rolled, the secondary wire evenly wound in the core. Transformers for the open and closed structures can be installed without cutting the cable.

Q2: What is the meaning of the circles of the split core current transformer?
A2: On electrical system diagrams, a small circle is often used to represent a winding, and a circle is used to represent a winding. If you have two circles in a series, that means that the open and closed current transformer has two windings. If you have three circles in a series, that means you have three windings.

Q3: What is a split core current transformer error?
A3: Due to the structure of the split core current transformer core and material properties, the current transformer has an excitation current I0, which makes it produces errors.

Tips: How to fix the split core current transformer?

The split core current sensor is a good transformer to protect the equipment and the user's safety.

Fixing with clamping screws. The shaft of the split core current transformer is clamped by using the tightening force of the hexagonal recessed head bolt to reduce the gap. This method is easy to install and disassemble without causing damage to the shaft.
Keyway fixing. To prevent axial slippage, a combination of set screw fixing and clamping screw fixing is usually used. This fixing method is suitable for high-torque drives.
Expansion sleeve fixing. Tightening the four set screws on the end face, this method is suitable for the connection and fixing of some high-torque stepper motors and servo motors.

Warranty

Thank you for buying industrial test and measurement equipment on sisco.com, all products sold by sisco and the partner cover a 12 months warranty, effective from the date of receiving the products.

What is covered?

sisco is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.

What is not covered?

Product purchased from anyone other than a sisco store or a sisco authorized reseller.
Expendable parts.
Routine cleaning or normal cosmetic and mechanical wear.
Damage from misuse, abuse or neglect.
Damage from use of parts other than sisco approved.
Damage from use outside the product’s usage or storage parameters.
Damage from use of parts not sold by sisco.
Damage from modification or incorporation into other products.
Damage from repair or replacement of warranted parts by a service provider other than a sisco authorized service provider.
Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
