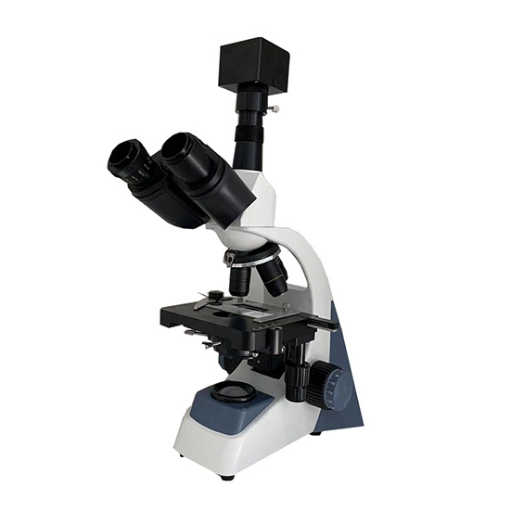

Our biology labs' trinocular microscope features a 360° rotatable head and adjustable interpupillary distance, ensuring comfortable use over extended periods. The infinity-corrected high-contrast plan achromatic objectives ensure crisp, distortion-free images with enhanced color accuracy, while also reducing harmful light for better dark-field observation. Coupled with an Abbe condenser and adjustable brightness LED illumination, this microscope meets a wide range of biological observation needs.
Precision Optics and Durable Construction

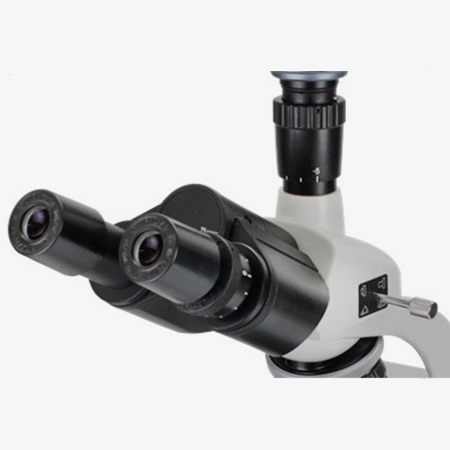

- This trinocular microscope features WF10X and WF16X (optional) widefield eyepieces for a broader field of view and more efficient observation.
- The full-metal body of the microscope is finely polished for durability and stability. The fully coated achromatic lenses (4X / 10X / 40X / 100X oil) provide flat, high-definition imaging with minimal distortion.
- Ergonomic design supports extended use in laboratory settings, maintaining both precision and comfort during prolonged sessions.
Mechanical Stage and Digital Imaging Capabilities

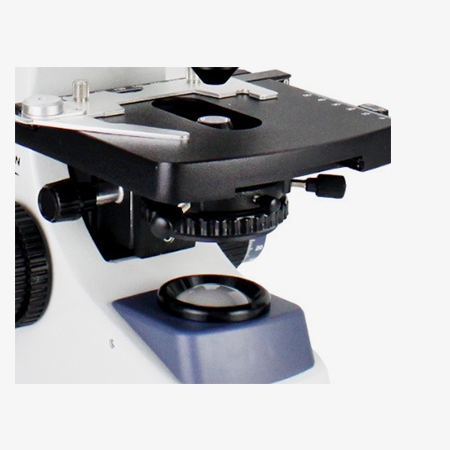

- The double-layer mechanical stage allows precise XY positioning, with coaxial coarse and fine focus knobs to ensure smooth vertical adjustments for optimal viewing angles.
- This trinocular stereo microscope is integrated with an Abbe condenser (N.A. 1.25) and adjustable LED illumination for even and consistent lighting.
- Supports digital imaging features such as live video preview, image capture, and recording when paired with a compatible camera, making the microscope perfect for documentation in scientific research and classroom demonstrations.
Applications
In electronics manufacturing, SISCO's microscopes assist engineers in inspecting tiny circuit components for precise soldering and assembly. In watch repair, technicians use microscopes to examine intricate parts for accurate restoration and repair. During chemical experiments, researchers observe microscopic reactions and cellular structures. In gem appraisal, experts rely on microscopes to identify internal features and flaws, determining the gemstone’s quality and authenticity.
Watch Repair
Chemical Experiments
Gem Appraisal
Electronics Manufacturing
| Model | SISCO-BM-YF500SM | |||
| Eyepiece | WF10X, WF16X (Optional) | |||
| Achromatic Objectives | 4X, 10X, 40X (Spring), 100X (Spring, Oil) | |||
| Stage | Double-layer mechanical stage, 120×125 mm | |||
| Eyepiece Tube Length | 160 mm | |||
| Viewing Head | Trinocular head | |||
| Condenser | NA=1.25 Abbe condenser with Iris diaphragm & filter | |||
| Filter Diameter | 32 mm | |||
| Coarse/Fine Coaxial Focusing Range | 20 mm | |||
| Stage Size (X-Y) | 115×125 (mm) | |||
| Illumination | 1W LED | |||
| Power Supply | AC Input 220V | |||
| Dimensions (with binocular head) | L × W × H: 185×270×400 (mm) | |||
| Net Weight | Approx. 5kg | |||
| Eyepieces | ||||
| Category | Magnification | Diameter of View-field (mm) | Remark | |
| Wild Field Eyepiece | WF 10X | Φ18 | / | |
| WF 16X (Optional) | Φ11 | / | ||
| Objectives | ||||
| Category | Magnification | Numerical Aperture | Working Distance (mm) | Remark |
| Achromatic Objectives | 4X | 0.1 | 37.5 | / |
| 10X | 0.25 | 7.613 | / | |
| 40X (spring) | 0.65 | 0.632 | spring | |
| 100X (spring, oil) | 1.25 | 0.198 | spring, oil | |
| Total Magnification | ||||
| Objectives | Tube Coefficient | Total Magnification | ||
| Eyepiece 10X | Eyepiece 16X (Optional) | |||
| 4X | 1X | 40X | 64X | |
| 10X | 100X | 160X | ||
| 40X | 400X | 640X | ||
| 100X | 1000X | 1600X | ||
Q1: What is the advantage of a trinocular microscope compared to a binocular model?
A1: A trinocular microscope features a third optical port, allowing users to connect a digital camera or imaging system without interrupting visual observation. This makes it ideal for documentation, live video streaming, and teaching demonstrations.
Q2: Is this trinocular microscope suitable for prolonged use in teaching or laboratory settings?
A2: Yes, this biological trinocular microscope is ergonomically designed with an adjustable viewing angle and a stable metal frame, making it comfortable and durable for extended use. It's widely used in educational institutions, clinical labs, and agricultural research facilities.
Q3: Is this microscope compatible with digital imaging or video recording?
A3: Absolutely. The trinocular port is designed for digital camera integration, making the microscope easy to use for capturing high-resolution images or video footage during experiments or teaching sessions. It supports various camera mounts and adapters.
Tips: How to capture images or videos from a trinocular microscope?
Want to record what you observe under the microscope? The trinocular head is specifically designed for camera integration. Simply connect a digital microscope camera to the third optical port to capture still images or live video. Ensure the camera is compatible with your microscope’s trinocular tube size (typically 23.2mm or 30mm) and supports the desired resolution and output format. This setup is ideal for documentation, remote teaching, live demonstrations, or research analysis. For best results, choose a camera with adjustable exposure and white balance settings to ensure high-quality imaging.
