    Monocular Microscope for Biological Labs

    The monocular microscope is specifically designed for scientific research in bio labs. It features a standard 10x wide-field eyepiece and a 1W LED illumination system. The monocular viewing head of this microscope tilts at 30° and rotates 360°. Equipped with an N.A. 1.25 Abbe condenser, the biological microscope guarantees clear and sharp imaging by optimizing light transmission. Ideal for applications in biological research, sample analysis, water quality inspection, and university lab experiments.
    SKU: SISCO-BM-YF500D
    *
    *
    $345.23
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    This biological monocular microscope features infinity achromatic objective lenses and allows for easy switching between low, medium, and high magnifications. The wide-field optical eyepieces offer an expanded field of view, enhancing the clarity and scope of every observation. Whether you're analyzing biological samples or teaching microscopy techniques, this microscope provides an exceptional imaging experience.

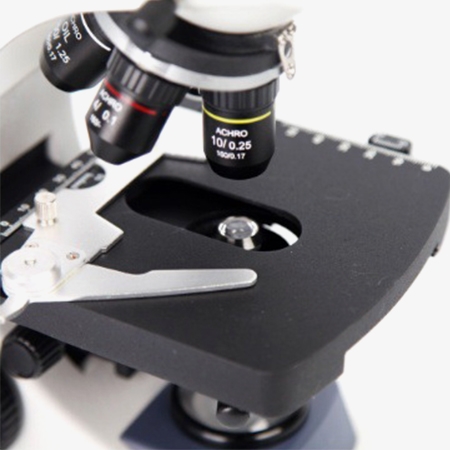

    Monocular microscope stage

    Precision Stage Control, Lock Your Sample with Stability

    • Anti-slip slide design: The stage of the monocular microscope features a polished, flat surface that allows glass slides to move smoothly without obstruction, preventing slide damage and ensuring uninterrupted viewing.
    • Fine-tuning with mechanical clips: The built-in fine focus knob offers micro-level adjustments, enabling users to precisely target the observation area, which is essential for detailed microscopic analysis.

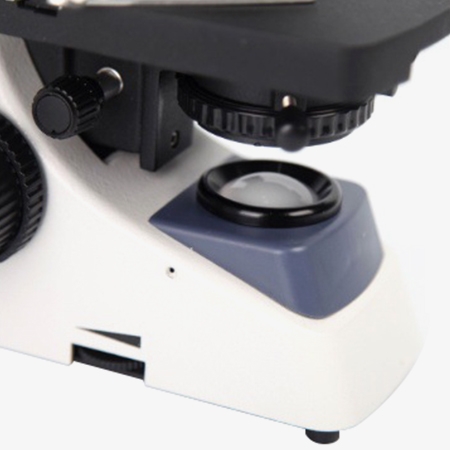

    Monocular microscope led lamp

    Energy-Efficient LED Illumination

    • Eco-friendly performance: The integrated 1W LED light source of the monocular microscope consumes minimal energy while delivering consistent brightness, which is an ideal choice for green laboratories aiming to reduce operating costs.
    • Durable and reliable: With a long service life and high stability, the LED illumination system ensures continuous and dependable lighting, minimizing interruptions during extended lab sessions.

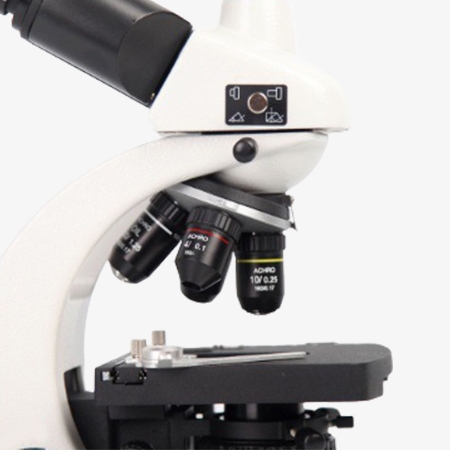

    Monocular microscope achromatic objectives

    Achromatic Objective Lenses for Crystal-Clear Imaging

    • Multiple magnification options: This bio microscope comes with 4X, 10X, 40X (spring), and 100X (spring, oil immersion) achromatic objectives, covering a wide range of observation needs, from basic structures to cellular details.
    • Superior image quality: These finely engineered lenses correct for chromatic and spherical aberrations, offering sharper images, enhanced contrast, and more accurate color reproduction compared to standard objectives, crucial for biological and clinical microscopy.

    Applications

    In electronics manufacturing, SISCO's microscopes assist engineers in inspecting tiny circuit components for precise soldering and assembly. In watch repair, technicians use microscopes to examine intricate parts for accurate restoration and repair. During chemical experiments, researchers observe microscopic reactions and cellular structures. In gem appraisal, experts rely on microscopes to identify internal features and flaws, determining the gemstone’s quality and authenticity.

    Microscope for watch repair

     Watch Repair

    Microscope for chemical experiments

    Chemical Experiments

    Microscope for gen appraisal

    Gem Appraisal

    Microscope for electronics manufacturing

    Electronics Manufacturing

    Specs



    Model SISCO-BM-YF500D
    Eyepiece WF10X, WF16X (Optional)
    Achromatic Objectives 4X, 10X, 40X (Spring), 100X (Spring, Oil)
    Stage Double-layer mechanical stage, 120×125 mm
    Eyepiece Tube Length 160 mm
    Viewing Head Single head, tilted at 30°
    Condenser NA=1.25 Abbe condenser with Iris diaphragm & filter
    Filter Diameter 32 mm
    Coarse/Fine Coaxial Focusing Range 20 mm
    Stage Size (X-Y) 115×125 (mm)
    Illumination 1W LED
    Power Supply AC Input 220V
    Dimensions (with binocular head) L × W × H: 185×270×400 (mm)
    Net Weight Approx. 5kg
    Eyepieces
    Category Magnification Diameter of View-field (mm) Remark
    Wild Field Eyepiece WF 10X Φ18 /
    WF 16X (Optional) Φ11 /
    Objectives
    Category Magnification Numerical Aperture Working Distance (mm) Remark
    Achromatic Objectives 4X 0.1 37.5 /
    10X 0.25 7.613 /
    40X (spring) 0.65 0.632 spring
    100X (spring, oil) 1.25 0.198 spring, oil
    Total Magnification
    Objectives Tube Coefficient Total Magnification
    Eyepiece 10X Eyepiece 16X (Optional)
    4X 1X 40X 64X
    10X 100X 160X
    40X 400X 640X
    100X 1000X 1600X
    FAQs

    Q1: What kind of specimens can I observe with this biological microscope?
    A1: This monocular microscope is ideal for observing prepared biological slides such as plant cells, animal tissues, blood smears, bacteria, and more. It’s perfect for laboratory use, classroom demonstrations, and scientific research that requires high-clarity magnification.

    Q2: Does this microscope support oil immersion for high-magnification observations?
    A2: Yes, the bio microscope comes equipped with a 100X oil immersion achromatic objective lens, allowing users to achieve high-resolution imaging for detailed cellular analysis.

    Q3: Is the LED illumination brightness adjustable?
    A3: Absolutely. The built-in 1W LED light source of the microscope offers adjustable brightness to suit different specimen types and observation environments, ensuring optimal lighting at all times.

    Tips: How can you stay comfortable during extended microscope use?

    Try adjusting the 30° inclined monocular head and repositioning your seating height to maintain a natural viewing angle. This ergonomic design helps improve comfort during prolonged laboratory work.

    Warranty

    Thank you for buying industrial test and measurement equipment on SISCO.com, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.


    What is covered?

    SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.


    What is not covered?

    • Product purchased from anyone other than a SISCO store or a SISCO authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than SISCO approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by SISCO.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a SISCO authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
