This digital microscope adopts a Type-C high-speed interface, ensuring wide compatibility and fast charging. It operates within a temperature range of -10°C to 55°C, allowing it to adapt to various environments. The HDMI HD output supports simultaneous viewing by multiple users. One-touch photo and video capture make the digi microscope easy to record the microscopic world. With crystal-clear image quality and smart measurement features, this electron microscope is perfect for research, teaching, and industrial inspection.
User-Friendly Design & Easy Operation

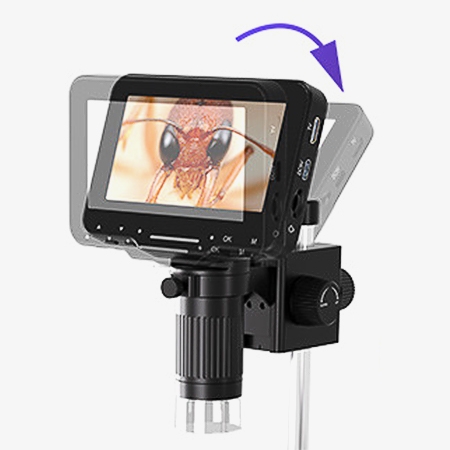

- Adjustable Screen Angle: Unlike traditional microscopes with fixed angles, this digital microscope allows 45° tilt adjustment, accommodating different working heights and postures for more comfortable long-term use.
- Stable, Non-slip Base: Equipped with anti-slip foot pads, the microscope stays firmly in place during operation, ensuring accurate inspection without movement.
- Rotary Dimming & Type-C Connectivity: Easily control brightness with a rotary knob. The Type-C port enables both data transfer and charging, compatible with most modern devices.
HD Imaging & Storage Expansion

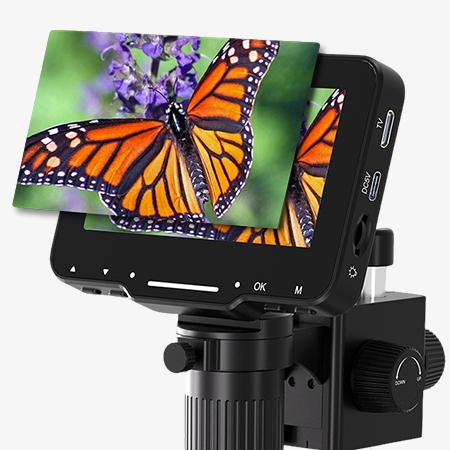

- 1000X Five-Level Digital Zoom: Our handheld digital microscope offers five magnification levels with sharp 1080P HD output, capturing ultra-fine details for precision tasks.
- 178° Wide-Angle IPS Display: The screen of the microscope provides true-to-life color reproduction and consistent brightness from wide viewing angles, ensuring clarity from any position.
- Large Storage Support: Compatible with up to 32GB Class 10 TF cards, allowing users to store high-resolution photos and videos for easy data management and sharing.
Applications
In electronics manufacturing, SISCO's microscopes assist engineers in inspecting tiny circuit components for precise soldering and assembly. In watch repair, technicians use microscopes to examine intricate parts for accurate restoration and repair. During chemical experiments, researchers observe microscopic reactions and cellular structures. In gem appraisal, experts rely on microscopes to identify internal features and flaws, determining the gemstone’s quality and authenticity.
Watch Repair
Chemical Experiments
Gem Appraisal
Electronics Manufacturing
| Model | SISCO-DM-LP043 | SISCO-DM-LP043H |
| HDMI Output | No | Yes |
| Camera Resolution | 100W | 200W |
| Screen | 4.3-inch IPS Screen | |
| CMOS Sensor Size | 1/4'' | 1/2.9'' |
| Photo Resolution | 10M, 7M, 5M, 3M, 2M, 1M | 16M, 12M, 10M, 8M, 5M, 3M, 2MHD, 1.3M, VGA |
| Video Resolution | 720P | 1080P, 720P |
| Picture Format | JPG | JPG |
| Video Format | AVI | MOV |
| Illuminant | 8 Adjustable LED Lights (brightness adjustable) | |
| Interface & Signal Transmission Mode | Type-C | Type-C, TV output |
| Operating Temperature | -10°C ~ 55°C | |
| Operating Humidity | 30% ~ 85% RH | |
| Working Current | 380mA | 570mA |
| Power Dissipation | 1.9W | 2.85W |
| Net Weight | Approx. 650g | |
| PC Operating System | Windows 7, Windows 8.1, Windows 10, macOS 12 or later | |
| Supported Languages | Simplified Chinese, Traditional Chinese, Japanese, English, French, Russian, Korean, German, Spanish, Portuguese, Italian | English, French, Spanish, Portuguese, German, Italian, Simplified Chinese, Traditional Chinese, Russian, Japanese, Korean, Arabic |

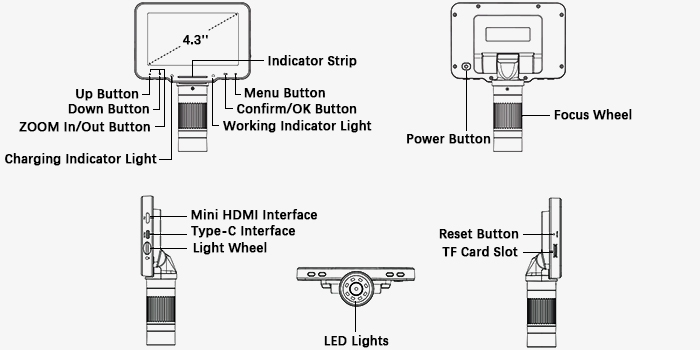

Details
Q1: How do I charge this HD digital microscope?
A1: This USB charging digital microscope comes with a charging cable in the package. Simply plug it into a standard phone charger adapter, power bank, or connect it to your laptop or PC. A full charge typically takes around 3 hours, and you’ll be ready for portable microscopic inspection.
Q2: Can I connect this digital microscope to a smartphone?
A2: No, this digital microscope is not compatible with smartphones. It is designed for use with its built-in display or connected to a Windows or Mac computer for image viewing and data transfer.
Q3: Is this microscope suitable for viewing plant cells?
A3: Sorry, this is a high-definition digital microscope, not a traditional optical microscope. While it's excellent for inspecting surface textures, circuit boards, fabrics, or insects, it does not have the optical resolution needed to observe plant or animal cells.
Tips: Do I need to install software to view images on my computer?
Not necessarily. If you're using Windows 10 or above, you can view images using the system's default Camera app. For Mac users, the built-in Photo Booth app works perfectly. No extra software installation is required for basic image viewing.
