This binocular lab microscope is equipped with 10X widefield eyepieces, delivering a broad, sharp field of view for detailed observation. The N.A. 1.25 Abbe condenser of this microscope effectively focuses light for brighter and clearer images. A built-in 1W energy-saving LED illumination system ensures even, adjustable lighting that’s both eco-friendly and efficient. This is a high-quality and cost-effective binocular microscope for scientific use.

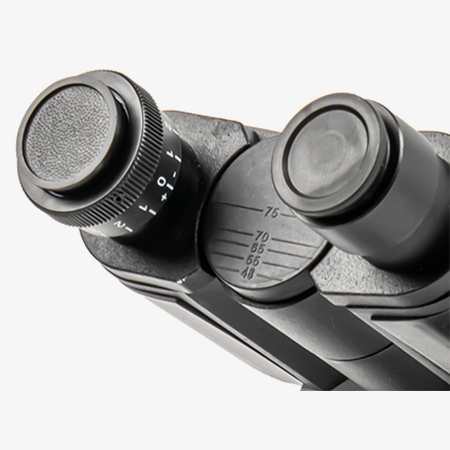

Full Lens Protection System
- Protective Top Cover, Prevent Scratches and Dust: The microscope lens is equipped with a protective cap that shields the objective from dust and accidental scratches during transport or storage, helping prolong the lifespan of your microscope for research or teaching.
- Easy to Remove and Reattach: Designed for convenience, the lens cover can be easily removed or reinstalled with a gentle push, allowing users to transition quickly between storage and operation.

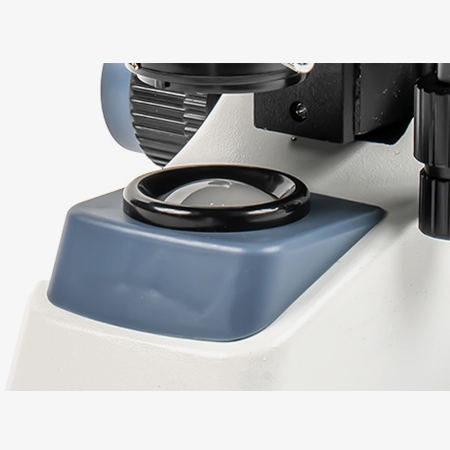

Energy-Efficient LED Illumination System
- Adjustable Brightness for Versatile Applications: The built-in 1W LED light source of the binocular microscope provides adjustable brightness to suit various specimen types and laboratory conditions.
- Soft, Even Lighting, Eye-Friendly Design: The LED illumination ensures consistent and glare-free lighting, reducing eye strain during prolonged microscope use. It's especially beneficial in educational settings or extended lab sessions.
Ergonomic Precision Focusing Knobs
- Single-Hand Operation for Maximum Efficiency: The ergonomically designed focus knobs of the biological microscope enable smooth and precise adjustments with one hand, which enhances control and efficiency during sample analysis.
- Smooth Rotation and Fine Precision: The focusing mechanism operates fluidly without jamming, allowing for accurate fine-tuning of focus to capture every detail of your sample structure.
Applications
In electronics manufacturing, SISCO's microscopes assist engineers in inspecting tiny circuit components for precise soldering and assembly. In watch repair, technicians use microscopes to examine intricate parts for accurate restoration and repair. During chemical experiments, researchers observe microscopic reactions and cellular structures. In gem appraisal, experts rely on microscopes to identify internal features and flaws, determining the gemstone’s quality and authenticity.
Watch Repair
Chemical Experiments
Gem Appraisal
Electronics Manufacturing
| Model | SISCO-BM-YF500E | |||
| Eyepiece | WF10X, WF16X (Optional) | |||
| Achromatic Objectives | 4X, 10X, 40X (Spring), 100X (Spring, Oil) | |||
| Stage | Double-layer mechanical stage, 120×125 mm | |||
| Eyepiece Tube Length | 160 mm | |||
| Viewing Head | Translational binocular head, tilted at 30° | |||
| Condenser | NA=1.25 Abbe condenser with Iris diaphragm & filter | |||
| Filter Diameter | 32 mm | |||
| Coarse/Fine Coaxial Focusing Range | 20 mm | |||
| Stage Size (X-Y) | 115×125 (mm) | |||
| Illumination | 1W LED | |||
| Power Supply | AC Input 220V | |||
| Dimensions (with binocular head) | L × W × H: 185×270×400 (mm) | |||
| Net Weight | Approx. 5kg | |||
| Eyepieces | ||||
| Category | Magnification | Diameter of View-field (mm) | Remark | |
| Wild Field Eyepiece | WF 10X | Φ18 | / | |
| WF 16X (Optional) | Φ11 | / | ||
| Objectives | ||||
| Category | Magnification | Numerical Aperture | Working Distance (mm) | Remark |
| Achromatic Objectives | 4X | 0.1 | 37.5 | / |
| 10X | 0.25 | 7.613 | / | |
| 40X (spring) | 0.65 | 0.632 | spring | |
| 100X (spring, oil) | 1.25 | 0.198 | spring, oil | |
| Total Magnification | ||||
| Objectives | Tube Coefficient | Total Magnification | ||
| Eyepiece 10X | Eyepiece 16X (Optional) | |||
| 4X | 1X | 40X | 64X | |
| 10X | 100X | 160X | ||
| 40X | 400X | 640X | ||
| 100X | 1000X | 1600X | ||

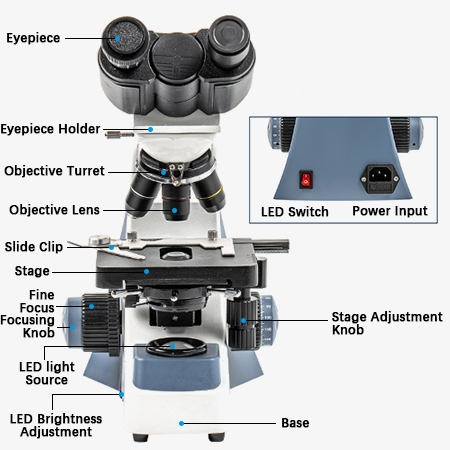

Structures
Q1: What is the total magnification range of this binocular biological microscope?
A1: This microscope offers a magnification range from 40X to 1000X, using interchangeable objective lenses (4X, 10X, 40X, and 100X) and standard 10X widefield eyepieces, making it ideal for both low- and high-magnification biological observations.
Q2: Is the LED light adjustable and suitable for various specimen types?
A2: Yes, the 1W LED illumination system is brightness-adjustable, providing soft, uniform lighting for various samples, from transparent cells to dense tissue structures, ensuring a comfortable and efficient viewing experience.
Q3: Can this lab microscope be used for clinical or educational purposes?
A3: Absolutely. This binocular microscope is widely used in clinical laboratories, school and university biology classes, and research institutions, thanks to its ergonomic design, precision optics, and affordable price.
Tips: How can I reduce eye strain when using the microscope for extended periods?
Ensure the binocular head is adjusted to match your interpupillary distance. Use moderate brightness on the LED light and take short breaks every 20–30 minutes to protect your eyes, especially during extended lab sessions.
