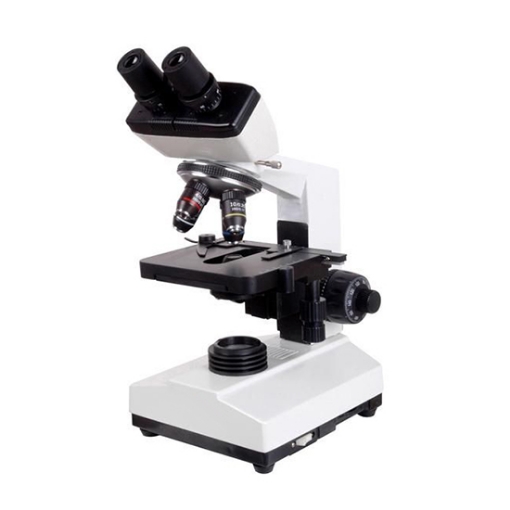

Designed for high-level research and biological experiments, this upright fluorescence microscope features WF10X wide-angle eyepieces made of all-glass optics, delivering clear and true-to-life imaging. The interpupillary distance (55–75mm) is fully adjustable, ensuring comfortable use for both adults and children. Perfect for viewing cell structures, bacteria, fungi, microorganisms, and crystalline materials, this biological fluorescence microscope also supports continuous observation of microbial growth in culture media, making it a powerful tool for bio laboratories.
Superior Optical Design for Comfortable Viewing

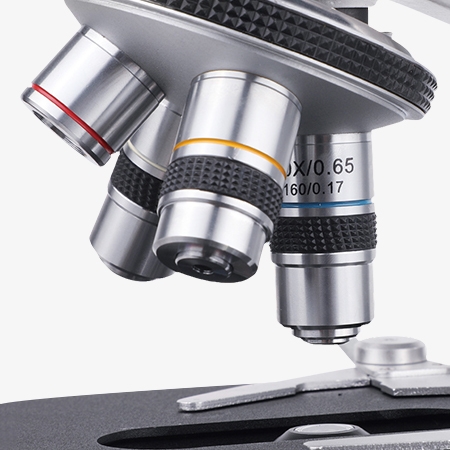

- This upright fluorescence microscope uses high-quality 195-achromatic objective lenses with a wide field of view, eliminating chromatic aberrations and image distortion for accurate and comfortable observation.
- The binocular viewing head includes diopter adjustment on one eyepiece, solving the common issue of unequal vision in both eyes, ensuring each user experiences crisp, strain-free imaging.

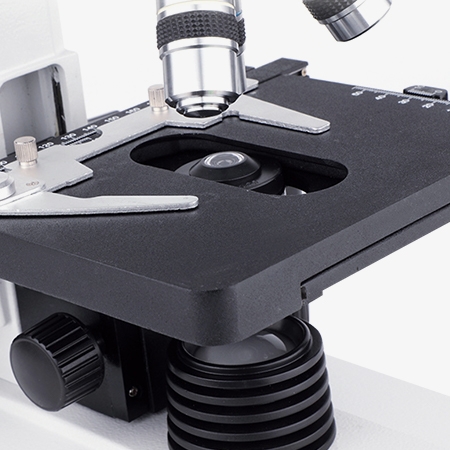

Precision Mechanical Stage & Focusing System
- Built with a solid all-metal double-layer mechanical stage, the fluorescence microscope allows smooth and accurate slide movement for efficient specimen tracking.
- Its coaxial coarse and fine focusing system offers precise and rapid focusing, achieving sharp images in just 1 second. The ergonomic focus knobs of the microscope are engineered for comfort and long-term use.

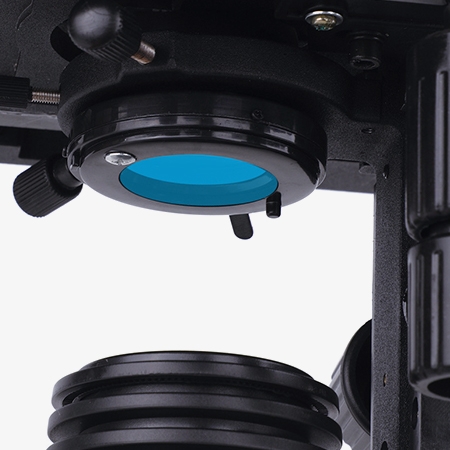

Advanced Illumination & Condenser System
- The fluorescence microscope's high-performance Abbe condenser enables optimal light concentration and aperture adjustment, adapting to a variety of specimen types.
- An infinitely adjustable LED illumination system provides uniform and soft lighting, reducing eye strain while enhancing image contrast and clarity.
Applications
In electronics manufacturing, SISCO's microscopes assist engineers in inspecting tiny circuit components for precise soldering and assembly. In watch repair, technicians use microscopes to examine intricate parts for accurate restoration and repair. During chemical experiments, researchers observe microscopic reactions and cellular structures. In gem appraisal, experts rely on microscopes to identify internal features and flaws, determining the gemstone’s quality and authenticity.
Watch Repair
Chemical Experiments
Gem Appraisal
Electronics Manufacturing
| Model | SISCO-FM-MSC-F107B |
| Optical System | Finite Optical System (160mm) or Infinite Optical System (∞) |
| Viewing Head | Sliding Binocular Head, 45° Inclined, Interpupillary Distance 55–75 mm |
| Eyepiece | WF10X/18 mm Wide Field Eyepiece |
| Objective | Achromatic Objectives: 4×, 10×, 40×, 100× |
| Optional: 195 Achromatic, Infinite Plan, or Fluor Objectives | |
| Nosepiece | Quadruple Nosepiece |
| Stage | Double-Layer Mechanical Stage |
| Table Area: 142×132 mm | |
| Movement Range: 75 mm (X), 50 mm (Y) | |
| Condenser | Abbe Condenser, NA 1.25 with Iris Diaphragm & Filter |
| Focusing System | Coaxial Coarse & Fine Adjustment |
| Coarse Stroke: 37.7 mm/rotation | |
| Fine Stroke: 0.2 mm/rotation | |
| Fine Division: 0.002 mm | |
| Focusing Range: 28 mm | |
| Illumination | 3W LED Illumination, Brightness Adjustable |
| Optional: 6V 20W Halogen Bulb | |
| 5W Fluorescent LED Illumination (Adjustable) | |
| Fluorescence Attachment | DF-I fluorescent vertical illuminator equipped with 1 set of fluorescent channels. |
| DF-II fluorescent vertical illuminator equipped with 2 sets of fluorescence channels. | |
| DF-VI fluorescent vertical illuminator can be configured with 3 to 6 groups of fluorescence channels. | |
| Electrical Details | Voltage Fluctuation: ±10% |
| Fuse: F1AL250V, 5×20 mm Micro Fuse | |
| Operating Temperature | 0°C – 40°C |
| Overvoltage Category | Class II |
| Size (W×D×H) | 330×280×440 (mm) |
| Weight | 7kg |
Q1: What types of applications is this upright fluorescence microscope suitable for?
A1: This upright fluorescence microscope is ideal for a wide range of applications, including biological research, clinical diagnostics, microbiology, pharmacology, veterinary medicine, and academic teaching. It’s particularly effective for observing fluorescently labeled cells, microorganisms, tissues, and even materials like crystals and polymers.
Q2: How does the focusing system ensure precision during fluorescence observation?
A2: The fluorescence microscope features a coaxial coarse and fine focusing mechanism. This dual-layer system offers rapid gross adjustments and precise fine tuning, enabling users to observe even delicate fluorescent signals without image distortion.
Q3: Can this fluorescence microscope support long-term or time-lapse observations?
A3: Yes. Equipped with a stable LED illumination system and a durable mechanical stage, this microscope supports continuous observation. It’s especially useful for monitoring the behavior of cells or bacteria in live cultures, enabling accurate tracking of growth and reproduction over time.
Tips: How to improve your fluorescence imaging results?
Try adjusting the iris diaphragm on the Abbe condenser and fine-tuning the brightness of the LED light source. Matching the light intensity and contrast to your specific specimen type helps enhance fluorescence clarity, reduces glare, and makes subtle details more visible, especially in low-emission samples.
