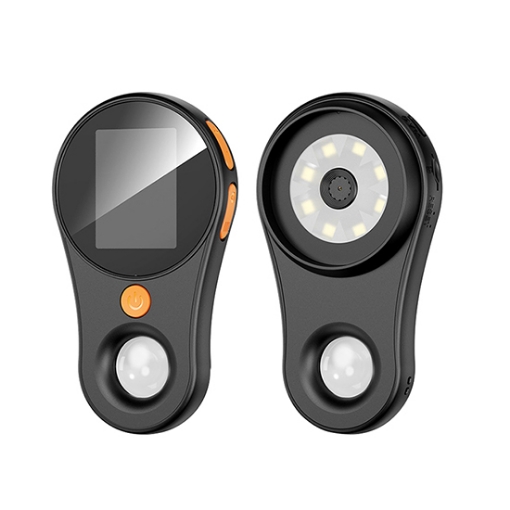

The SISCO portable digital microscope fits right in your pocket, making it perfect for on-the-go use. Equipped with a 2-inch IPS wide-color screen and 178° wide viewing angle, the pocket microscope offers a crystal-clear visual experience. Compatible with Windows XP/Vista/7/8/10/11 and macOS 11.0+, this USB microscope provides stable real-time image transmission.
Optical Integration & Image Sharing

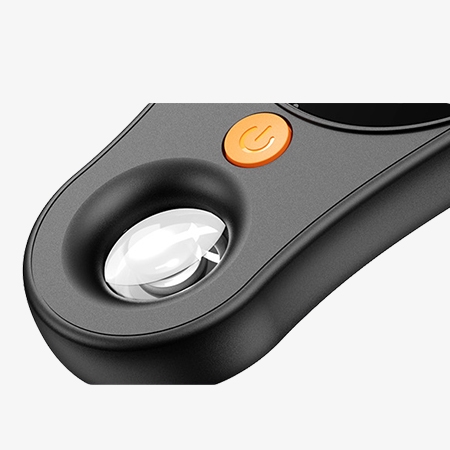

- The built-in optical lens system of this handheld microscope can be paired with other optical equipment for extended functionality.
- Capture high-quality photos and videos with built-in storage and TF card support, making the USB digital microscope easy to record and share the beauty of the microscopic world.
Powerful Lighting & Clear Imaging
- Our portable microscope comes with 8 adjustable LED lights, delivering bright, natural illumination for any environment.
- With an ultra-macro lens, quick focus, 500X magnification, and a 2MP image sensor, even the finest details become visible, which is perfect for applications like circuit inspection, watch repair, and biology observation.
Convenient Charging & Low-Light Operation

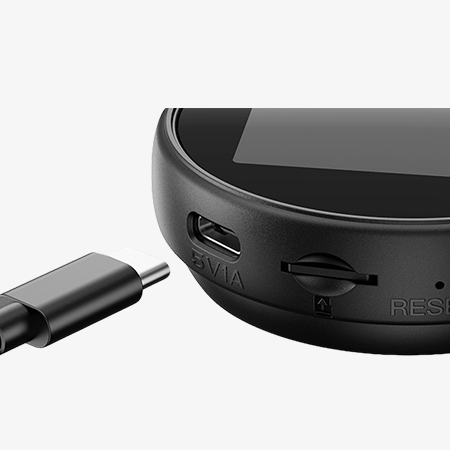

- Designed with a modern Type-C charging port, this handheld mini microscope ensures easy power-up while traveling or working remotely.
- With its built-in light source, it functions flawlessly even in dark environments, allowing you to explore anytime, anywhere.
Applications
In electronics manufacturing, SISCO's microscopes assist engineers in inspecting tiny circuit components for precise soldering and assembly. In watch repair, technicians use microscopes to examine intricate parts for accurate restoration and repair. During chemical experiments, researchers observe microscopic reactions and cellular structures. In gem appraisal, experts rely on microscopes to identify internal features and flaws, determining the gemstone’s quality and authenticity.
Watch Repair
Chemical Experiments
Gem Appraisal
Electronics Manufacturing
Â
| Model | SISCO-DM-MINI |
| Display | 2-inch IPS screen |
| Image Sensor | 2 MP pixels |
| Magnification | 500x |
| Focus Range | 0 mm (Fixed Focus) |
| Light Source | 8 built-in LED lights |
| Image Format | JPG |
| Video Format | AVI |
| Power Supply | Built-in 400mAh rechargeable battery |
| Working Time | Approx. 1.5 hours |
| Charging Time | Approx. 1.5 hours |
| Compatible Systems | Windows XP/Vista/7/8/10/11, Mac OS 11.0 or above |
| Dimensions | 13.2×8.2×3.7 (cm) |
| Carton Size (Qty/Box) | 41×39×34 (cm) |
| Net Weight | Approx. 130g |
Â

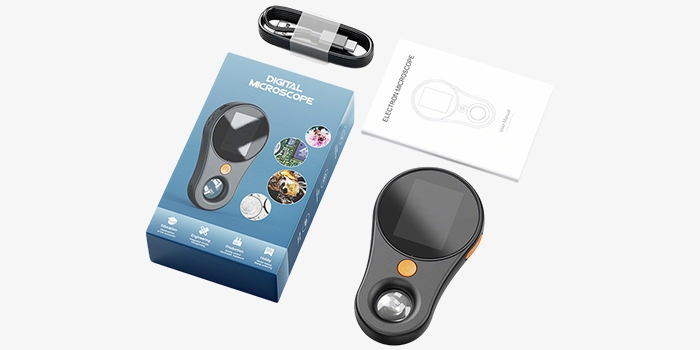

Packing List
Q1: Can this handheld microscope connect to a computer?
A1: Yes, the portable microscope supports real-time image transmission to computers via USB. It is compatible with Windows XP/7/8/10/11 and macOS 11.0 and above, allowing you to view, capture, and store high-resolution images on a larger screen.
Q2: How long can the pocket microscope be used on a full charge?
A2: With its built-in 400mAh rechargeable battery, the small microscope can operate continuously for up to 1.5 hours. It's perfect for portable use during field inspection, soldering work, or educational demonstrations.
Q3: What is the maximum magnification and image resolution?
A3: This handheld digital microscope offers up to 500X magnification and features a 2-megapixel image sensor, making it ideal for capturing clear microscopic details during electronics repair, jewelry appraisal, or biological observation.
Tips: How can I get the clearest image when using the microscope?
When using the microscope for close-up observation, adjust both the LED brightness and focus ring slowly to avoid overexposure. Use the 2-inch IPS screen for instant visual feedback, and consider connecting it to a PC for more precise focusing when capturing photos or videos.
Thank you for buying industrial test and measurement equipment on SISCO.com, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.
What is covered?
SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.
What is not covered?
- Product purchased from anyone other than a SISCO store or a SISCO authorized reseller.
- Expendable parts.
- Routine cleaning or normal cosmetic and mechanical wear.
- Damage from misuse, abuse or neglect.
- Damage from use of parts other than SISCO approved.
- Damage from use outside the product’s usage or storage parameters.
- Damage from use of parts not sold by SISCO.
- Damage from modification or incorporation into other products.
- Damage from repair or replacement of warranted parts by a service provider other than a SISCO authorized service provider.
- Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
Shop on sisco.com for all of your industrial test and measurement equipment & accessories including portable detectors, meters, testers, scales, etc.
