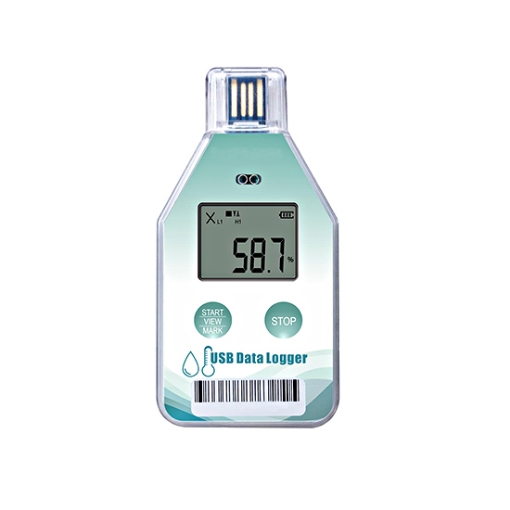

    USB Single Use Temperature Data Logger with LCD Display

    sisco temperature data logger and temperature & humidity data logger available, temperature detecting range -30℃ ~ +60℃ (22℉ or 140℉) and humidity detecting range 0 ~ 90%RH. This single use temperature data logger is used for shipping, vaccine storage and cold chain. This single use temp data logger can be inserted to computer’s USB port to get PDF report directly.
    SKU: SISCO-TDL-U08
    *
    $47.09
    This product has a minimum quantity of 5
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    Cold chain temperature data logger with LCD display can shows real temperature and humidity data. This temp & RH recorder has programmable software for log interval, alarms and start delay. After recording, you can insert it to computer’s USB port to download PDF report directly.

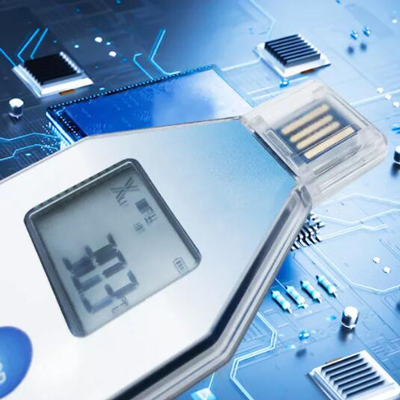

    single use temperature data logger with USB interface

    USB interface

    Single use temperature data recorder has USB interface, which can connect to the computer to view data, generate and download PDF report at any time.

    USB single use temperature data logger battery

    Low power consumption

    Single use temperature data logger is built-in large capacity button battery, driven by a new generation of low-power chips, battery life for up to 1 year.

    Applications

    USB single use temperature data logger is mainly used for temperature mapping during storage, shipping and transportation of vaccines, food, medicine, chemicals and other products.

    USB single use temperature data logger application

    Specs
    Model SISCO-TDL-U08 SISCO-TDL-U08B
    Product Single Use Temp Data Logger Single Use Temp & RH Data Logger
    Humidity Resolution / 0.1%RH
    Detecting Humidity Range / 0~90%RH
    Detecting Temperature Range -30℃~+60℃
    Dimension 95.5mm*49mm*7.8mm
    Weight 25g
    Connectivity USB 2.0
    Temperature Accuracy ±0.5℃ (-20℃~+40℃), ±1℃(other)
    Temperature Resolution 0.1℃
    Data Storage Capacity 32000
    Start Mode Push-to-Start or Timing Start
    Logging Interval Default: 10mins. [Programmable with software BEFORE power on (10s ~ 18h), contact us for software.]
    Alarm Range User Configurable
    Alarm Delay User Configurable (0~254 minutes)
    Report Generation Automatic PDF/CSV Report Generation
    Software Temp (RH) Management Software (for Windows, 21 CFR 11 Compliant)

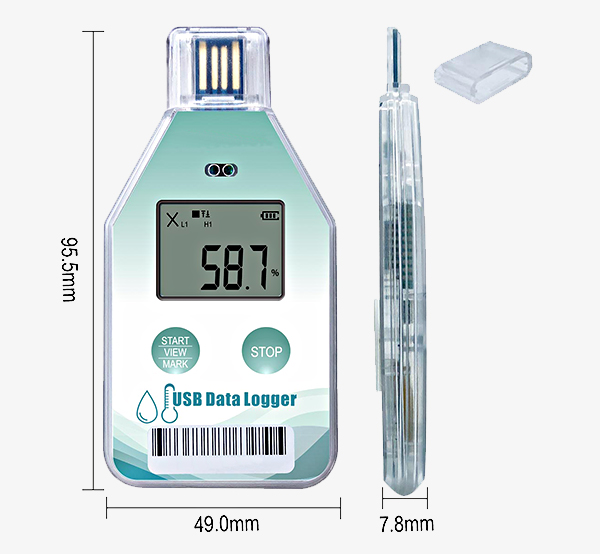

    Dimension

    USB single use temperature data logger dimension

    FAQs

    Q1: What is a temperature data logger?
    A1: A temperature data logger is one of the types of temperature measuring instruments. With the popularization and wide application of computers, temperature data recorders have been produced. And because of its more accurate data recording, more convenient data storage, and more convenient data analysis functions, it has been widely used. Paperless temp data logger with USB interface also greatly facilitates the downloading and saving of data.

    Q2: What are the functions of temperature data loggers?
    A2: Measurement: Built-in temperature sensor or connectable external temperature sensor to measure temperature.
    Record Storage: Automatically record and store measured temperature values.
    Data transfer: transfer or download the saved measurement data to the computer through the USB interface.
    Programming: such as setting sampling rate, data transmission method and interval, selecting temperature sensor type, alarm setting, etc.
    Analysis: Perform the necessary analysis on the temperature data through the built-in software.

    Q3: What are the advantages of temperature data loggers?
    A3: The portable temperature and humidity data logger can regularly collect and record temperature and humidity parameters according to the configured time interval, and can transmit the collected and recorded data to the computer for processing and drawing charts. It is widely used in environmental protection, health and epidemic prevention, warehousing and transportation, museums, greenhouses and other fields. This recorder is powered by high precision sensors and high-energy lithium batteries. It is designed with low-power technology and requires no external power supply. It is small in size, low in power consumption, and high in precision. It can work continuously for more than three years.

    Tips: Temperature data logger application in collection field

    Among the various environmental factors that affect the preservation of collections and archives, the most basic and often working factors are the temperature and humidity of the air. The temperature and humidity data logger is mainly for on-site inspection and display of the temperature and humidity in the museum. It can view the temperature and humidity information in real time through the computer terminal and mobile phone terminal, or store, query and print historical data. When the temperature and humidity of the monitoring point exceeds the standard value, the management personnel will receive the alarm information sent by the system and take effective measures in time to prevent the hidden danger of damage to the collection due to the temperature and humidity environment.

    Warranty

    Thank you for buying industrial test and measurement equipment on SISCO.com, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.


    What is covered?

    SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.


    What is not covered?

    • Product purchased from anyone other than a SISCO store or a SISCO authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than SISCO approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by SISCO.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a SISCO authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
