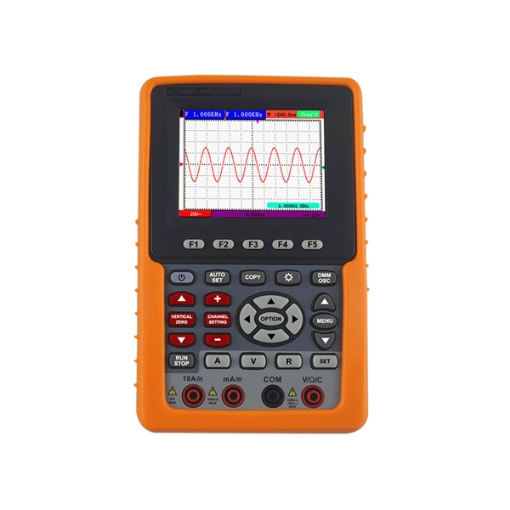

20 MHz Handheld Oscilloscope, Single Channel, 500 MSa/s

Single channel handheld oscilloscope is a high-accuracy digital oscilloscope with 20 MHz bandwidth, 500 MSa/s sampling rate, which is an instrument used to measure the shape of alternating current or pulse current waves. Digital oscilloscope has advantages of small size,light weight, multifunction and long service life.

SKU: SISCO-HO-20

$458.89

Qty:

i h

Free shipping

Delivery date: 7-12 days

You May Also Like

60 MHz Handheld Oscilloscope, Single Channel, 500 MSa/s

Visualize electrical waveforms to test and debug circuits with the 1-channel handheld digital oscilloscope from sisco. This 3-in-1 oscilloscope and multimeter offer a bandwidth of 60 MHz, sample rates of 500 MSa/sec, and record lengths of 24k points. The 60 MHz handheld oscilloscope features an auto-scale function, USB data transmission and waveform record and replay.

$554.13

100 MHz Handheld Oscilloscope, Single Channel, 1 GSa/s

This compact portable oscilloscope is a high-quality single-channel, 100 MHz bandwidth oscilloscope. The 100 MHz handheld oscilloscope provides 1 GSa/s real-time sample rate and a waveform acquisition rate of 4 waveforms per second, which ensures a more rapid capturing of instantaneous or abnormal signals for accelerating signal analysis and fault tracing.

$649.37

40 MHz Handheld Oscilloscope, 2 Channels, 250 MSa/s

2-channel oscilloscope is a high-accuracy digital oscilloscope with 40MHz bandwidth, 250MS/s sampling rate, and 8k storage depth, up to 10000 wfrms/s waveform refresh rate, supports automatic measurement. The digital storage oscilloscope is suited for workplaces such as families, schools, and factories.

$268.42

70 MHz Handheld Oscilloscope, 2 Channels, 250 MSa/s

3.5 inch LCD handheld oscilloscope with 2 channel (oscilloscope+multimeter), 70MHz bandwidth, 250 MSa/s sample rate, 8K record length, 10,000 wfrms/s waveform refresh rate, 8 bits vertical resolution. This oscilloscope is portable and comfortably fits in the hand which is much lighter, easier, and perfect for field use.

$322.38

Overview
Specs
Document
FAQs
Warranty
Reviews

Overview

The 20 MHz handheld digital oscilloscope with 500 MSa/s sampling rate, Auto, Normal, and Single three trigger modes, USB Type-C interface supports not only power bank power supply, but also adapter charging and top computer connection.

Detail of single channel handheld oscilloscope

High-definition color LCD display, upgrade measurement function keys

The digital symbols are clearly displayed and the reading is convenient.
The keys feel good, and the function keys are reasonably distributed design.
Large LCD display

Test pen jack, charging and USB interface design

The test pen jack is smooth and fastened, the insertion and removal are good, and there is an upper limit input prompt.
With a supportable stand, easy to use.
This unit has a built-in rechargeable battery, no need to worry.
Can be connected to a computer for online communication.

Dimension Unit (mm)

Dimension of single channel handheld oscilloscope

Application

The main application of a SISCO oscilloscope is used to display the waveforms of signals. It can be used in many fields such as automotive test, signal analysis, electrical, transducer test and measurement, electrical equipment design, medical equipment testing field, etc.

Application of oscilloscope

Specs

Performance Characteristics

Model	SISCO-HDS1021M-N
Bandwidth	20 MHz
Channel	Single channel
Sample rate	500MSa/s
Horizontal Scale (s/div)	5ns/div～100s/div, step by 1～2.5～5
Record length	24K points
Display	3.7" color TFT display (640 * 480 pixels)
Waveform refresh rate	10000 wfrms/s
Input coupling	DC, AC, Ground
Input impedance	1 MΩ±2%, in parallel with 18 pF±5 pF
Probe attenuation	1X,10X,100X,1000X
Max. input voltage	400V (PK - PK) (DC + AC, PK - PK, 1MΩ input impedance, probe attenuation 10 : 1), CAT II
Bandwidth limit(typical)	20MHz / Full bandwidth
Sampling rate range	5ns/div ~ 500s/div, step by 1 – 2 - 5
DC Accuracy (average)	average >16: ±(5% reading + 0.05div) for △V
Vertical Sensitivity	5mV/div～5V/div (at input)
Rise time (at input, Typical)	≤ 17.5ns
Trigger type	Edge and Video
Trigger model	Auto, Normal, Single
Trigger level range	±6 div from the screen center
Automatic measurement	Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Delay A→B , Delay A→B
Cursor measurement	ΔV, ΔT, ΔT&ΔV between cursors,auto cursor
Communication interface	USB Type-C
Acquisition Mode	Sample, Peak Detect, and Average
Interpolation	sin (x) / x
Vertical Resolution (A/D)	8 bits
Waveform Storage	4 waveforms
Communication Interface	Mini-USB，mini-RS232
Power Supply	100V-240V AC, 50/60Hz

Digital Multimeter Specification

Full Scale Reading	3 3/4 digits (max 4000-count)
Diode	0V-1.5V
Input Impedance	10 MΩ
On/ Off Test	< 50 (± 30) beeping
Voltage	VDC: 400mV, 4V, 40V, 400V, 1000V : ±(1% ± 1 digit); max input: DC 1000V
	VAC: 4V, 40V, 400V: ±(1% ± 3 digits), 750V: ±(2% ± 3 digits); Frequency: 40Hz - 400Hz;
	Max input: AC 750V (virtual value)
Current	DC: 40mA, 400mA : ±(1.5% ± 1 digit), 10A: ±(3% ± 3 digits)
Current	AC: 40mA: ±(1.5% ± 3 digits), 400mA: ±(2% ± 1 digit), 10A : ±(5% ± 3 digits)
Impedance	400Ω: ±(1% ± 3 digits), 40ΚΩ - 4ΜΩ: ±(1% ± 1 digit), 40MΩ: ±(1.5% ± 3 digits)
Capacitance	51.2nF - 100uF: ±(3% ± 3 digits)

Accessories

Power cord
CD rom
USB cable
Probe
Probe Adjust
Multimeter lead
Adapter
User manual
5V, 1KHz Output
Capacitance Ext Module
Soft Bag
Metal Case (optional)

Document

SISCO Single Channel Handheld Oscilloscope User Manual

FAQs

Q1: Can an oscilloscope measure DC voltage?
A1: DC voltage can be measured using either an oscilloscope or a digital multimeter. Each piece of testing equipment has its advantages and disadvantages.

Q2: What is the maximum frequency for the oscilloscope?
A2: System bandwidth determines an oscilloscope's fundamental ability to measure an analog signal - the maximum frequency range that it can accurately measure. Entry-level scopes will often have a maximum bandwidth of 100 MHz. They can accurately (within 2%) show the amplitudes of sine-wave signals up to 20 MHz.

Q3: What is the record length for an oscilloscope?
A3: The record length, measured in points or samples, divided by the sample rate (in Samples/second) specifies the total time (in seconds) that is acquired. Example: With a record length of 1 M points and a sample rate of 250 MSa/sec, the oscilloscope will capture a signal of 4 msec in length.

Tips: What should I pay attention to when using a handheld oscilloscope?

The handheld oscilloscope is an instrumentation device that measures the distortion of waveforms in the testing and measurement of low-frequency and ultra-low-frequency standard waveforms and is commonly used in power systems and other occasions that require testing the purity of signal waveforms.

Thermal electronic instruments generally need to avoid frequent startup and shutdown, and the same is true for oscilloscopes.
When making a quantitative measurement, the oscilloscope should be powered on and preheated for more than 10 minutes, so that the components in the machine work in a thermally stable state, otherwise the temperature of the components in the machine is in the process of rising, which will affect the measurement results.
If you find that the waveform is disturbed by the outside world, you can ground the oscilloscope case.
