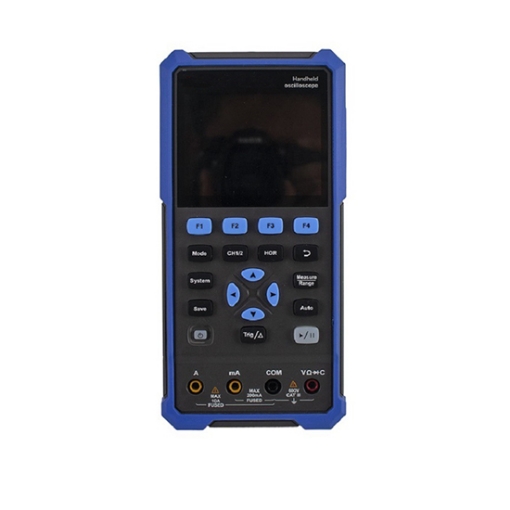

40 MHz portable digital storage oscilloscope with 250 MSa/s sample rate, 2 channel and max. waveform capture rate up to 10,000 wfms/s. Ultra-thin body and handle design, lightweight and portable, user-friendly operation interface, built-in temperature-controlled fan on the back to ensure fast cooling during prolonged use.
USB Type-charging design
- USB Type-charging interface, which can be adapted to chargers or charging treasures.
- Support host computer connection can save waveform pictures and data.
Bracket design
- 3.5-inch high-resolution, high-contrast color LCD display,can work continuously for about 6 hours.
- Suspended stand to save workspace.
Dimension Unit (mm)
Application
The main application of a SISCO oscilloscope is used to display the waveforms of signals. It can be used in many fields such as automotive test, signal analysis, electrical, transducer test and measurement, electrical equipment design, medical equipment testing field, etc.
Performance Characteristics
| Model | SISCO-HDS242 |
| Bandwidth | 40MHz |
| Channel | 2 channel |
| Sample rate | 250MSa/s |
| Acquisition model | Sample, Peak detect |
| Record length | 6K |
| Display | 3.5 inch LCD |
| Waveform refresh rate | 10000 wfrms/s |
| Input coupling | DC, AC, Ground |
| Input impedance | 1 MΩ±2%, in parallel with 16 pF±10 pF |
| Probe attenuation | 1X,10X,100X,1000X |
| Max. input voltage | 400V (DC+AC, PK - PK) |
| Bandwidth limit(typical) | 20MHz / Full bandwidth |
| Sampling rate range | 5ns/div ~ 500s/div, step by 1 – 2 - 5 |
| Sensitivity Resolution | 10mV/div~10V/div |
| Low Frequency（-3db） | ≥10 Hz (at input, AC coupling) |
| Rise time (at input, Typical) | ≤8ns |
| Trigger type | Edge |
| Trigger model | Auto, Normal, single |
| Trigger level range | ±4 div from the screen center |
| Automatic measurement | Period, Frequency, Mean, PK-PK, Max, Min |
| Cursor measurement | ΔV, ΔT, ΔT&ΔV between cursors,auto cursor |
| Communication interface | USB Type-C |
Digital Multimeter Specification
| Full-scale reading | 4.5 digitals (max 20000 count) |
| Testing Modes |
Voltage, Current, Resistance, Capacitance, Diode, Continuity |
| Maximum Input Voltage | AC 750V, DC 1000V |
| Maximum Input Current | DC: 10A, AC: 10A |
| Diodes Test | 0-2V |
Accessories
- Quick Guide
- USB Cable
- Probe
- Probe Adjust
- MultimeterÂ
- Lead
- BNC plug to alligator clips cable
- Soft Bag
Q1: Can an oscilloscope measure DC voltage?
A1: DC voltage can be measured using either an oscilloscope or a digital multimeter. Each piece of testing equipment has its advantages and disadvantages.
Q2: What is the maximum frequency for the oscilloscope?
A2: System bandwidth determines an oscilloscope's fundamental ability to measure an analog signal - the maximum frequency range that it can accurately measure. Entry-level scopes will often have a maximum bandwidth of 100 MHz. They can accurately (within 2%) show the amplitudes of sine-wave signals up to 20 MHz.
Q3: What is the record length for an oscilloscope?
A3: The record length, measured in points or samples, divided by the sample rate (in Samples/second) specifies the total time (in seconds) that is acquired. Example: With a record length of 1 M points and a sample rate of 250 MSa/sec, the oscilloscope will capture a signal of 4 msec in length.
Tips: What is a handheld oscilloscope used for?
Portable oscilloscopes are usually used for employed for evaluating, calculating, and checking in technology, engineering, telecoms, auto-research, and for heavy industry purposes. Unlike traditional oscilloscopes, portable oscilloscopes are equipped with built-in batteries.
