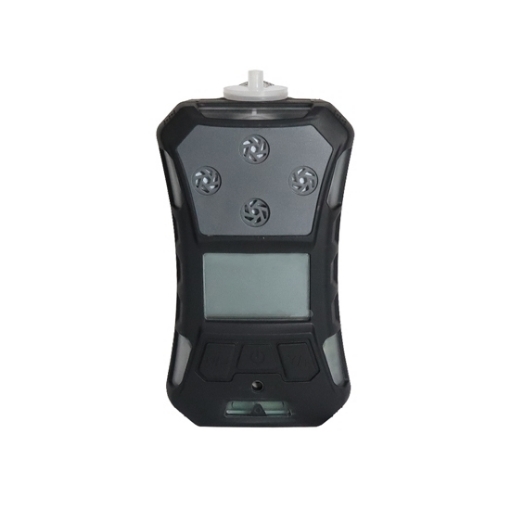

sisco explosion-proof portable gas detector can detect hydrogen sulfide (H2S) quickly and accurately. The compact design makes it easy to carry. The handheld detector features humanized operation functions such as one-key security detection, one-key storage, automatic image flipping, as well as the man-down alarm function.
The explosion-proof gas detector can detect hydrogen sulfide (H2S) quickly and accurately.
-
sisco portable explosion-proof hydrogen sulfide detector has got IECEX, ATEX, explosion-proof certificates and the explosion-proof level reaches Exia IICT4 Ga.
-
Real-time value, TWA, STEL, MAX, MIN multiple numerical display, and the screen can be automatically turned 180 degrees, which is convenient for viewing in special operating environments.
-
The H2S egas detector is equipped with a safety reminder function, sound and light vibration alarm function and high & low alarm latched function allowing the operator to better capture the sudden change of the gas concentration value.
Portable gas detector with built-in powerful sampling pump, fast detection speed.
- The explosion-proof gas detector can be connected 20m sampling tube externally, which is convenient for long-distance or confined space detection.
- With a water trap filter, the gas detector can effectively filter water, oil, dust and other impurities. It can also be used in harsh industrial environments such as coal mines and petroleum fields.
- Suction and diffusion dual-purpose device. Standard storage function, one-click data export, convenient for users to analyze.
- sisco portable hydrogen sulfide detector is available with a unique modifiable ID identification function, automatic detection functions, automatic prompts for voltage, and pump failure alarms.
- The gas detector supports each channel sensor to restore the factory setting separately and multi-language including English, Chinese and etc.
Details
Applications
| Model | GD400-H2S |
| Sampling method | Pump suction & diffusion dual-use type |
| Gas type | Hydrogen Sulfide (H2S) |
| Principle | Electrochemistry |
| Measuring range | 0 to 50 ppm, 0 to 100 ppm, 0 to 200 ppm |
| Resolution | 0.01ppm (0-50ppm), 0.1ppm (0-100/200ppm) |
| Response time | ≤30 seconds |
| Precision | ≤±2%F.S except for special gases |
| Language | Chinese/English（More languages can be customized) |
| Automatically test and calibrate after power-on | Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m3 can be switched and displayed by one key, and the concentration value is automatically converted by the system |
| Display | Monochrome graphics (160 x96) , screen can be automatically flipped |
| Backlight | The backlight time can be manually set and will be turned on automatically when an alarm is issued |
| Data record | Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported, with data cable |
| Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function |
| Battery | 3.7V rechargeable lithium battery, battery capacity 2200mA |
| Working hours | More than 15 hours in continuous pumping mode |
| Charger | Travel charger with DC interface, charging time ≥ 4 hours |
| Explosion-proof grade | ll 2G Ex ia ll CT4 Ga |
| Certification (EU regulations) | CE, ATEX (Standard: EN IEC 60079-0:2018, EN 60079-1:2014) |
| Protection grade | IP67 |
| Working temperature | -20℃~+50℃ |
| Humidity | 0～90%RH（no condensation） |
| Environmental pressure | 86～106Kpa |
| Size | 157*84.5*59.5mm (including back clip/water trap filter) (length * width * height) |
| Weight | 365g (including battery, belt clip and filter) |
| Extension Probe | About 480mm (Total Length), About 300mm (Probe Head) |
| Package Included | 1 piece Gas detector, 1 piece 12V/1A DC power adapter, 1 piece USB cable, 1 piece User manual, 1 piece Warranty card, 1 piece Filter, 1 piece Aluminum suitcase |
Â
Package List
- 1*Gas detector
- 1*12V/1A DC power adapter
- 1*USB cable
- 1*User manual
- 1*Warranty card
- 1*Filter
- 1*Aluminum suitcase
Gas Detector Catalog & User Manual
SISCO Gas Detector Catalogue- SISCO GD200 Portable Gas Detector User Manual
- SISCO GD300 Online Fixed Gas Detector User Manual
- SISCO GD400 Explosion Proof Portable Gas Detector User Manual
- SISCO GD500 Handheld Multi Gas Detector User Manual
- SISCO GD600 Multi Gas Analyzers User Manual
- SISCO Gas Detector Communication Protocol V1.0
- SISCO Single Stage Pressure Regulator User Manual
- SISCO Gas Detector Data Downloading Operation Instruction
Gas Detector Software
Q1:Â What is a gas detector?
A1:Â A gas detector is an instrument for gas leakage concentration detection, including a portable gas detector, handheld gas detector, fixed gas detector, online gas detector, etc.
Q2:Â What does a gas detector detect?
A2:Â Combustible gases: Natural gas (methane), liquefied gas, coal gas (hydrogen), acetylene, pentane, alkynes, acetone, toluene, alcohols, hydrocarbons, light oil, etc.
Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, oxygen, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.
Q3:Â What is ppm of gas detector?
A3:Â Parts per million or "ppm" is often used as a fractional measure of concentration. For example, a methane (molecular) concentration of 2% means that 2 out of every 100 air molecules are methane. Likewise, a methane concentration of 2 ppm means that 2 out of every 1 million air molecules are methane.
Tips: How to choose a suitable gas detector?
- Own needs. What gas do I need to detect? Depending on your needs, decide whether to purchase a stationary detector or a portable gas detector.
- Surroundings. All kinds of gas detectors have strict requirements on the on-site environment. Generally speaking, the temperature is -20~60℃, the humidity is 0-95%RH, and the pressure is 80-120Kpa, etc., including dust and flow.
- Security situation. There are explosion-proof requirements on the site where the gas detector is installed and used. The coal, petroleum and chemical industries have strict requirements for explosion protection, and gas detectors are required to have explosion-proof certification.
- Function. The general function of the required gas detector is to detect gas concentration and alarm when it exceeds the standard. Signal output is one aspect, and it is necessary to need current output, digital signal output, voltage output and switch output. There may be some other special requirements, such as a USB interface and Bluetooth connection.
