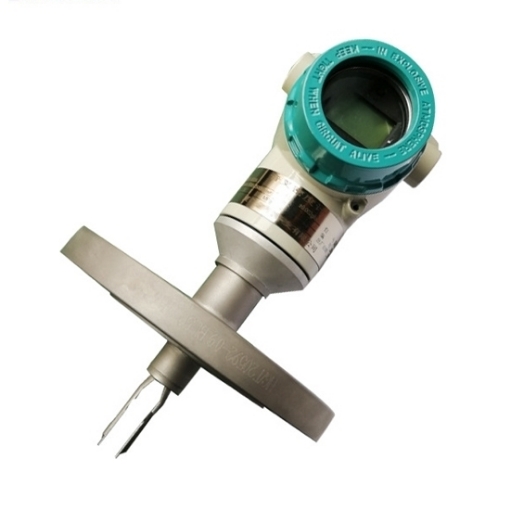

Tuning Fork Density Meter for Oil, Digital Type

Digital tuning fork density meter is used for measuring the density of oil, with Optional connection type G1/2” thread, DN50 flanged, DN80 flanged, 1/2” trip clamp, 2” trip Clamp, 24VDC, ≥50mA power supply, different wetted material, small size and high performance.
SKU: SISCO-DENSITY-OIL
*
*
*
*
$2,953.99
i h
Free shipping
Delivery date: 7-12 days
Overview


High-precision tuning fork density meter built-in digital sensor temperature sensor, mainly composed of a transmitter, a vibrating fork body and a temperature measuring element, which can be used for measuring the density of oil.

Details of tuning fork density meter

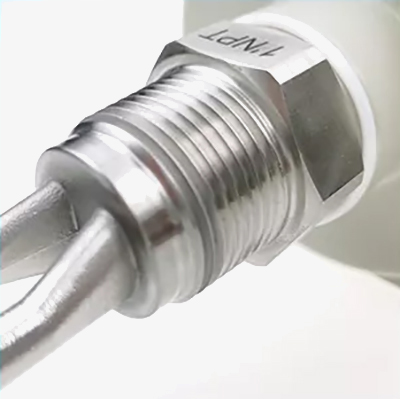

Mounting Thread

  • Precision machining, stainless steel material
  • Easy installation
Details of tuning fork density meter

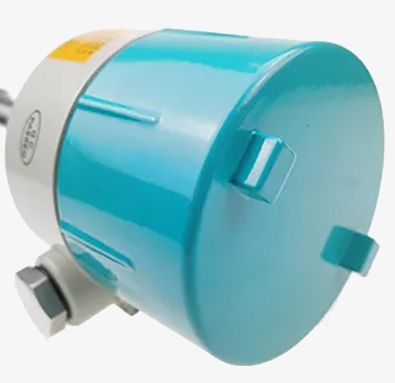

Aluminum Alloy shell

  • Surface spray plastic, protection grade IP67
  • Safety and health, explosion-proof electrical interface
Details of tuning fork density meter

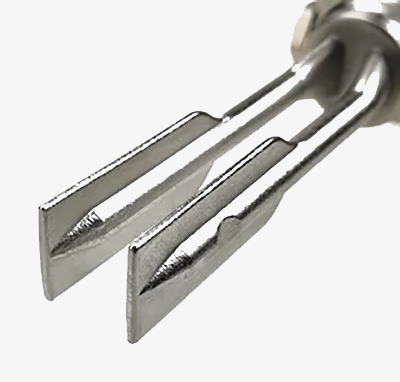

316 Stainless Steel Fork Body

  • Anti-hanging material
  • Fast drip-ping, anti-corrosion

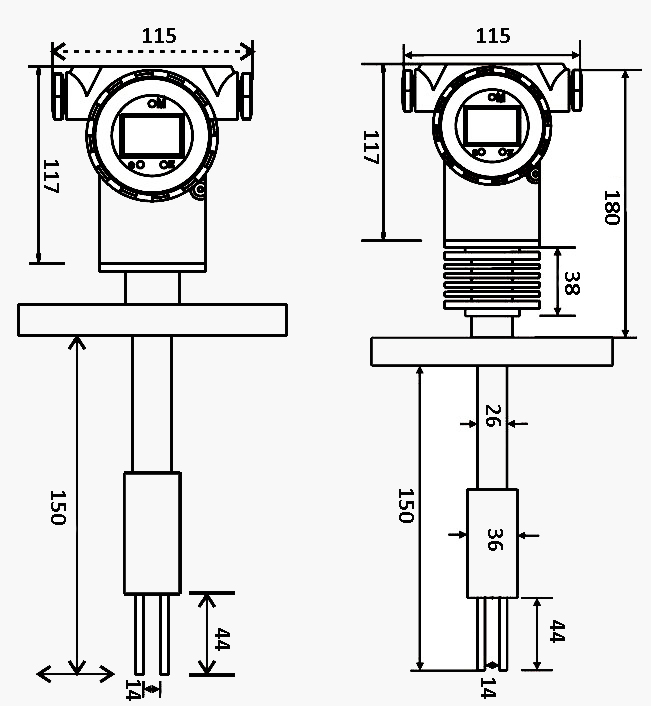

Dimensions (Unit: mm)

Tuning fork density meter dimension

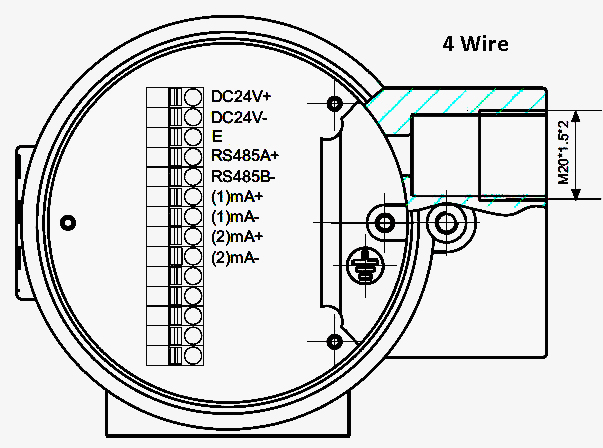

Wiring Diagram

Tuning fork density meter wiring diagram

Applications

SISCO tuning fork densitometer is suitable for petrochemical industry, brewing industry, food industry, pharmaceutical industry and mineral processing (such as clay, carbonate, silicate, etc.), specifically for the measurment for chemical, reservoir, ore slurry, medicine tank, cement, printing and dyeing waste, acid tower, and power plant, density detection of stirred mixtures, end-point monitoring of reactors, and interface detection of separators.

Digital tuning fork density meter application

Specs



Model SISCO-APX301-OIL
Application Oil
Measuring Range 0 – 2.5 g/cc (0 – 2500 kg/m3), 0~100.0%
Calibration Range 0 – 2.5 g/cc (0 – 2500 kg/m3), 0~100.0%
Measurement Accuracy ± 0.002 g/cc (± 2 kg/m3), ±0.5%
Repeatability ± 0.001 g/cc (± 0.2 kg/m3) ±0.1%
Medium Temperature Range -50℃ ~ +150℃
Working Pressure (Optional) 0.2~0.3MPa, Max. Pressure ≤4MPa
Fluid Viscosity Range 0 – 600Cp
Media Temperature (Optional) 0~100℃, 0~150℃
Temperature Coefficient <0.1 kg/m3/℃ (± 0.5%) After Correction
Stress Effect Negligible
Built-in Temperature Sensor Digital Sensor
Electrical Connection (Optional) M20*1.5, G1/2, NPT1/2
Connection Type (Optional) G1/2” Thread/ DN50 Flanged/ DN80 Flanged/ 1/2” Trip Clamp/ 2” Trip Clamp
Fork Body Coating Standard PTFE or PFA
Power Supply 24VDC, ≥50mA
Analog Signal Output 4-20mA, 0-1000Hz, RS485 Modbus, 4 Wires
Output Accuracy (20℃) ± 0.1% of reading or ± 0.05% FS
Output repeatability (-40~+85℃) ± 0.05% FS
Protection Level IP65
FAQs

A1: What is a density meter used for?
Q1: Density meters are instruments that measure the density of a sample liquid or gas. Digital density meters are used in the pharmaceutical, petroleum, chemical, and food and beverage industries for quality control and in research and development.

A2: How does a fork density meter work?
Q2: The Fork Density Meters use vibrating fork technology to measure density directly, and can be used in process control where density is the primary control parameter for the end product or as an indicator of another quality control parameter, such as %solids or %concentration.

A3: How to use a density meter?
Q3: Density meters work by measuring the oscillation of a glass tube that contains the sample. There are digital density meters that can measure specific gravity and refraction index as well as the density of a sample.

Tips: Why choose a tuning fork density meter?

the tuning meter equipped with a microprocessor-based electronic switching device that integrates signal processing, calculation and diagnostic functions. In addition to its convincing measurement accuracy and reliability, it can communicate directly with the PC through the RS485 interface. Under the ADView software environment, users can directly perform online node configuration, fault diagnosis and data logging. While measuring density and temperature, it can also calculate basic density, °API, Brix, concentration percentage, mass percentage, volume percentage, specific gravity and other parameters.
