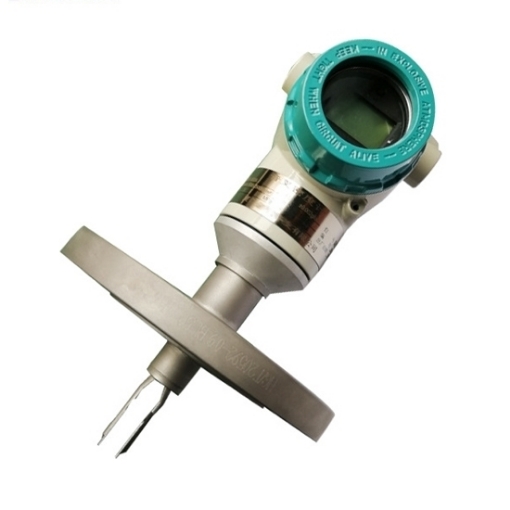

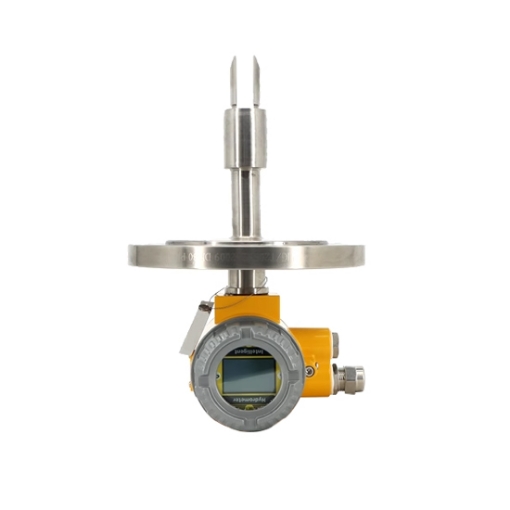

Tuning Fork Density Meter for Acid Base, Digital Type

Fork density meter for acid-base solution, selectable M20*1.5, G1/2, or NPT1/2 electrical connection, aluminum alloy shell, optional electrical connection M20*1.5, G1/2, NPT1/2. When the medium flows through the fork body of the tuning fork densitometer, the resonant frequency changes due to the change in the quality of the medium.
SKU: SISCO-DENSITY-ACID
*
*
*
*
$2,953.99
i h
Free shipping
Delivery date: 7-12 days
Overview


The digital tuning fork density meter is mainly composed of a transmitter, a vibrating fork body and a temperature measuring element, which can be used for measuring acid-base solution, aluminum alloy shell, high performance and high precision.

Details of tuning fork density meter

Mounting Thread

  • Precision machining, stainless steel material
  • Easy installation
Details of tuning fork density meter

Aluminum Alloy shell

  • Surface spray plastic, protection grade IP67
  • Safety and health, explosion-proof electrical interface
Details of tuning fork density meter

316 Stainless Steel Fork Body

  • Anti-hanging material
  • Fast drip-ping, anti-corrosion



Dimensions (Unit: mm)

Tuning fork density meter dimension

Wiring Diagram

Tuning fork density meter wiring diagram

Applications

SISCO tuning fork densitometer is suitable for petrochemical industry, brewing industry, food industry, pharmaceutical industry and mineral processing (such as clay, carbonate, silicate, etc.), specifically for the measurment for chemical, reservoir, ore slurry, medicine tank, cement, printing and dyeing waste, acid tower, and power plant, density detection of stirred mixtures, end-point monitoring of reactors, and interface detection of separators.

Digital tuning fork density meter application

Specs



Model SISCO-APX301-ACID
Measuring Medium Acid Base Solution
Measuring Range 0 – 2.5 g/cc (0 – 2500 kg/m3), 0~100.0%
Calibration Range 0 – 2.5 g/cc (0 – 2500 kg/m3), 0~100.0%
Measurement Accuracy ± 0.002 g/cc (± 2 kg/m3), ±0.5%
Repeatability ± 0.001 g/cc (± 0.2 kg/m3) ±0.1%
Medium Temperature Range -50℃ ~ +150℃
Working Pressure (Optional) 0.2~0.3MPa, Max. Pressure ≤4MPa
Fluid Viscosity Range 0 – 600Cp
Media Temperature (Optional) 0~100℃, 0~150℃
Temperature Coefficient <0.1 kg/m3/℃ (± 0.5%) After Correction
Stress Effect Negligible
Built-in Temperature Sensor Digital Sensor
Electrical Connection (Optional) M20*1.5, G1/2, NPT1/2
Connection Type (Optional) G1/2” Thread/ DN50 Flanged/ DN80 Flanged/ 1/2” Trip Clamp/ 2” Trip Clamp
Fork Body Coating Standard PTFE or PFA
Power Supply 24VDC, ≥50mA
Analog Signal Output 4-20mA, 0-1000Hz, RS485 Modbus, 4 Wires
Output Accuracy (20℃) ± 0.1% of reading or ± 0.05% FS
Output repeatability (-40~+85℃) ± 0.05% FS
Protection Level IP65
FAQs

A1: What is a density meter used for?
Q1: Density meters are instruments that measure the density of a sample liquid or gas. Digital density meters are used in the pharmaceutical, petroleum, chemical, and food and beverage industries for quality control and in research and development.

A2: How does a fork density meter work?
Q2: The Fork Density Meters use vibrating fork technology to measure density directly, and can be used in process control where density is the primary control parameter for the end product or as an indicator of another quality control parameter, such as %solids or %concentration.

A3: How to use a density meter?
Q3: Density meters work by measuring the oscillation of a glass tube that contains the sample. There are digital density meters that can measure specific gravity and refraction index as well as the density of a sample.

Tips: What should I pay attention to when installing a tuning fork density meter?

  • Before installation, please confirm whether the model of the instrument meets the environmental requirements of the site, such as: process pressure, process temperature, chemical properties of the medium, etc., to ensure that the instrument can be used normally after installation.
  • Generally speaking, the tuning fork densitometer can be installed in any position that needs to be installed in a horizontal, vertical or inclined manner.
  • Avoid the feeding port: When choosing the installation position of the tuning fork density meter, the measurement error caused by the installation at the feeding port should be avoided, or even damage to the instrument.
