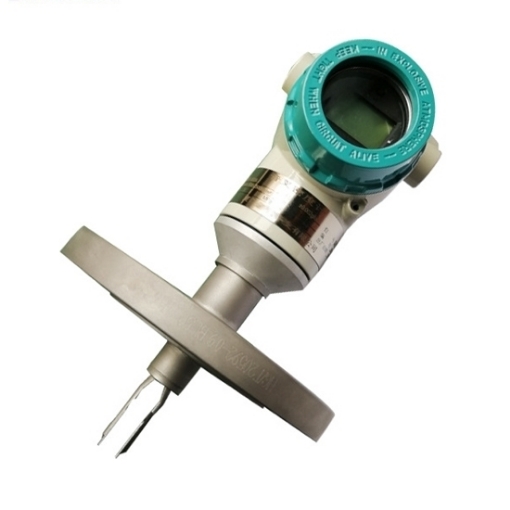

    Tuning Fork Density Meter for Chemical, Digital Type

    Digital tuning fork density meter with measuring range 0 – 2.5 g/cc, measurement accuracy ± 0.002 g/cc, optional media temperature 0~100℃ or 0~150℃. The measured medium is separated from the indicating structure, with good sealing performance, leak-proof, adaptable to liquid level measurement under high pressure, high temperature and corrosion conditions, and high reliability.
    SKU: SISCO-DENSITY-CH
    *
    *
    *
    *
    $2,953.99
    i h
    Free shipping
    Delivery date: 7-12 days
    Overview


    Reliable tuning fork density meter is used in the chemical industry for measuring different chemical liquids, IP65 protection grade, and built-in temperature digital sensor. Fork density meter design using plug-in installation, widely used in pipe, open tank containers and tanks closed container medium density test.

    Details of tuning fork density meter

    Mounting Thread

    • Precision machining, stainless steel material
    • Easy installation
    Details of tuning fork density meter

    Aluminum Alloy shell

    • Surface spray plastic, protection grade IP67
    • Safety and health, explosion-proof electrical interface
    Details of tuning fork density meter

    316 Stainless Steel Fork Body

    • Anti-hanging material
    • Fast drip-ping, anti-corrosion



    Dimensions (Unit: mm)

    Tuning fork density meter dimension

    Wiring Diagram

    Tuning fork density meter wiring diagram

    Applications

    SISCO tuning fork densitometer is suitable for petrochemical industry, brewing industry, food industry, pharmaceutical industry and mineral processing (such as clay, carbonate, silicate, etc.), specifically for the measurment for chemical, reservoir, ore slurry, medicine tank, cement, printing and dyeing waste, acid tower, and power plant, density detection of stirred mixtures, end-point monitoring of reactors, and interface detection of separators.

    Digital tuning fork density meter application

    Specs



    Model SISCO-APX301-CH
    Application Used in chemical industry
    Measuring Range 0 – 2.5 g/cc (0 – 2500 kg/m3), 0~100.0%
    Calibration Range 0 – 2.5 g/cc (0 – 2500 kg/m3), 0~100.0%
    Measurement Accuracy ± 0.002 g/cc (± 2 kg/m3), ±0.5%
    Repeatability ± 0.001 g/cc (± 0.2 kg/m3) ±0.1%
    Medium Temperature Range -50℃ ~ +150℃
    Working Pressure (Optional) 0.2~0.3MPa, Max. Pressure ≤4MPa
    Fluid Viscosity Range 0 – 600Cp
    Media Temperature (Optional) 0~100℃, 0~150℃
    Temperature Coefficient <0.1 kg/m3/℃ (± 0.5%) After Correction
    Stress Effect Negligible
    Built-in Temperature Sensor Digital Sensor
    Electrical Connection (Optional) M20*1.5, G1/2, NPT1/2
    Connection Type (Optional) G1/2” Thread/ DN50 Flanged/ DN80 Flanged/ 1/2” Trip Clamp/ 2” Trip Clamp
    Fork Body Coating Standard PTFE or PFA
    Power Supply 24VDC, ≥50mA
    Analog Signal Output 4-20mA, 0-1000Hz, RS485 Modbus, 4 Wires
    Output Accuracy (20℃) ± 0.1% of reading or ± 0.05% FS
    Output repeatability (-40~+85℃) ± 0.05% FS
    Protection Level IP65
    FAQs

    A1: What is a density meter used for?
    Q1: Density meters are instruments that measure the density of a sample liquid or gas. Digital density meters are used in the pharmaceutical, petroleum, chemical, and food and beverage industries for quality control and in research and development.

    A2: How does a fork density meter work?
    Q2: The Fork Density Meters use vibrating fork technology to measure density directly, and can be used in process control where density is the primary control parameter for the end product or as an indicator of another quality control parameter, such as %solids or %concentration.

    A3: How to use a density meter?
    Q3: Density meters work by measuring the oscillation of a glass tube that contains the sample. There are digital density meters that can measure specific gravity and refraction index as well as the density of a sample.

    Tips: What is a tuning fork density meter?

    The tuning fork density meter is designed according to the vibration principle of components. This vibration element is similar to a two-tooth tuning fork. The fork body vibrates due to a piezoelectric crystal located at the root of the tooth, and the vibration frequency is detected by another piezoelectric crystal. The fork is stabilized at the natural resonant frequency by phase shifting and amplifying circuits. When the medium flows through the fork, the resonant frequency changes due to the change of the quality of the medium. Tuning fork density meter can be directly installed on storage tanks and pipelines, and its measured fluid viscosity can be as high as 20,000cP, which is a significant feature that is superior to other similar products, and it also has a very high performance-price ratio.
