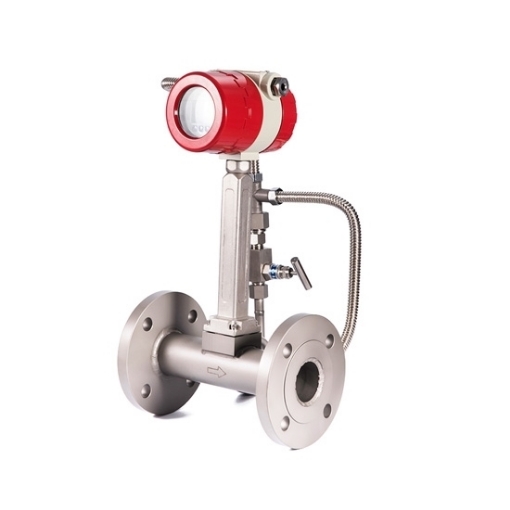

    Vortex Flow Meter for Liquid/Gas/Steam

    Low-price vortex flow meter with full isolation design, optional LCD display, pulse output, 4-20mA output, and RS485 communication and other signal output, compatible with liquid, gas, heat transfer oil and steam metering, free optional temperature compensation, pressure temperature, to meet more field use.
    SKU: SISCO-FLOW-VOR
    *
    *
    *
    *
    *
    *
    *
    *
    *
    $957.85
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    Vortex flow meter for sale at the wholesale price, can be used to measure the flow of liquids, gases and steam, applicable pipe diameter from DN15 to DN300, sensing head with anti-vibration and anti-interference encapsulation process, the field anti-interference ability is stronger, vortex flowmeter low maintenance costs, easy to install.

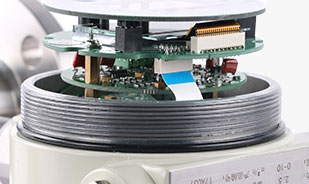

     Vortex flow meter structure

    Fully isolated design structure

    • Multiple signals
    • Pulse output
    • 4 -20ma output
    • RS485 communication

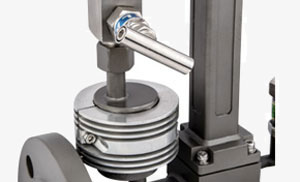

      Vortex flowmeter sensor

    High temperature-resistant sensors

    • Steam metering
    • Compressed air
    • Heat transfer oil

    Application

    The vortex flow meter is a kind of flowmeter applying the Carmen vortex principle, used to measure the flow of liquid, gas, and steam, also can measure the turbid liquid containing tiny particles, and impurities, widely used in petroleum, chemical, pharmaceutical, paper, metallurgy, electric power, environmental protection, food, and other industries.

    Vortex flow meter application

    Specs
    Model SISCO-LUGB
    Measuring Media Liquids, gases, steam
    Line Size * DN15-DN300
    Accuracy Gas (uncompensated): DN15-DN25 ±1.5%, DN32-DN200 ±1.0%, DN250-DN300 ±1.5%
    Liquid (uncompensated):DN15-DN300 ±1.0%
    With integrated temperature and pressure compensation: DN25-DN300 ±1.5%
    Range Ratio 1:8~1:30
    Medium Temperature -40℃ ~ +260℃ (for higher temperatures contact us)
    Power Supply 24V DC±5%, Li-ion battery (3.6V DC)
    Compensation Mode * Temperature compensation, pressure compensation, or integrated temperature and pressure compensation (Optional)
    Display * LCD display (Optional)
    Output Signal * Frequency, or 4-20mA
    Communication Interface * RS485 (Optional)
    Connection * Clamp, or Flange connection
    Body Material 316 stainless steel
    Protection Class IP65
    Ambient Temperature -10℃ ~ +60℃



    Flow Range

    Diameter Nominal (mm) Liquid Gas
    Flow Range (m3/h) Frequency Range (Hz) Flow Range (m3/h) Frequency Range (Hz)
    15 0.3~5  35~450 4~20 300~1600
    20 0.6~10 29~380 6~30 230~1200
    25 1.2~16 25~320 8~55 170~1100
    32 1.8~20 18~200 10~120 100~1180
    40 2~40 10~190 27~205 130~1040
    50 3~60 8~150 35~380 94~920
    65 4~85 6~120 60~640 90~910
    80 6.5~130 4.1~82 86~1100 55~690
    100 15~220 4.7~69 133~1700 42~536
    125 20~350 3.2~57 150~2000 38~475
    150 30~450 2.8~43 347~4000 33~380
    200 45~800 2~31 560~8000 22~315
    250 65~1250 1.5~25 890~11000 18~221
    300 95~2000 1.2~24 1360~18000 16~213



    Dimensions

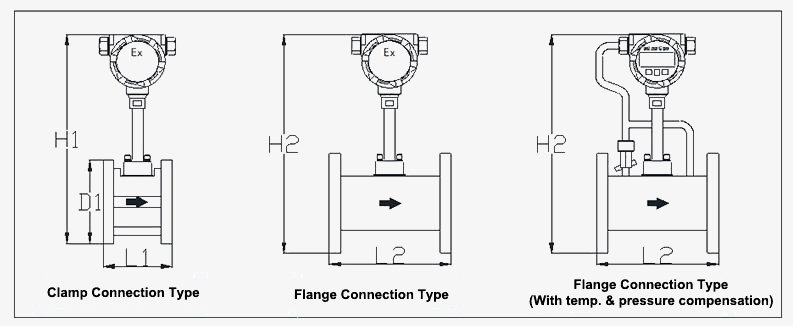

    Vortex flowmeter dimension

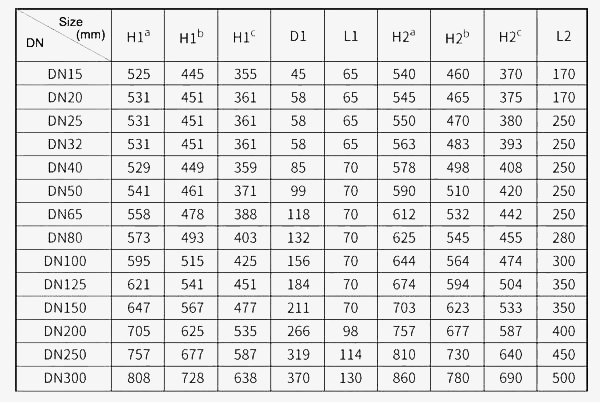

    Liquid vortex flowmeter dimension

    FAQs

    Q1: Can a vortex flow meter have perfect accuracy?
    A1: In an ideal world, the flow readings from your process meter would be exactly correct, without any type of deviation. Unfortunately, this is not the case, and the errors inherent in measurement must always be identified, accounted for, and minimized as much as possible.

    Q2: Does a vortex flow meter need to be calibrated?
    A2: During the production of a flowmeter, several steps are required such as coil winding, lining processing, and electrode assembly. This series of operations can cause a certain amount of error and dispersion in the device, so a calibration process is required to correct the accuracy.

    Q3: How often do vortex flow meters need to be calibrated?
    A3: Magnetic recalibrates the flowmeter every two years (every two years), or at the minimum frequency specified by the manufacturer. The manufacturer's specified minimum frequency meter readings are pressure corrected and, if necessary, corrected for moisture content.

    Tips: Is a flow meter bi-directional?

    Flow meters can only detect the magnitude of the flow, not the direction of the flow. Also, calibrate the meter in the direction indicated by the arrow on the bottom of the meter. Please refer to the application note Reverse Flow Effect on TS General Flow Meters for reverse flow calibration.

    Warranty

    Thank you for buying industrial test and measurement equipment on SISCO.com, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.


    What is covered?

    SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.


    What is not covered?

    • Product purchased from anyone other than a SISCO store or a SISCO authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than SISCO approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by SISCO.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a SISCO authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
