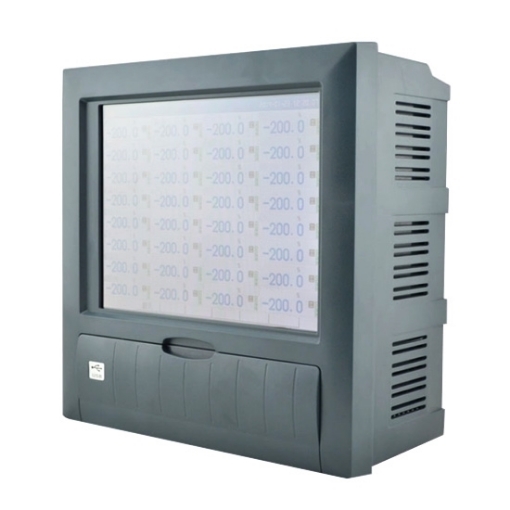

    Paperless Recorder, 8-40 Channel

    10.4-inch paperless recorder for sale, optional 8-40 input channels, 8 analog outputs, 24 alarm outputs, 8 internal power supplies and RS485/RS232/EtherNet communication outputs, paperless recorder can be used for temperature, pressure, flow, level, voltage, current and frequency recording and monitoring.
    SKU: SISCO-PLR-CH40
    *
    *
    $2,717.94
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    Paperless recorder with 10.4-inch 640*480 dot matrix TFT LCD display, 8-40 channels multi-functional signal input, automatic data backup, it can achieve temperature/pressure/current/voltage/linear resistance/frequency online recording and calculation.


    Paperless recorder terminals

    32-bit ARM microprocessor

    • High-speed, high-performance processor, built-in embedded operating system, screen switching response time ≤ 0.3S.
    • TFT high brightness LCD display, clear screen display, adjustable screen brightness, so that the use of paperless recorder becomes a kind of enjoyment.

    Paperless recorder printer interface



    Standard voltage signal transmission

    • SISCO paperless recorder, using intelligent signal board design.
    • Input and output signal types up to 44 kinds, more than 2 times than ordinary recorders.
    • Realize real multi-functional signal input and output.



    Application

    Paperless recorders are mainly used in various application scenarios such as metallurgy, petroleum, chemical industry, building materials, papermaking, food, pharmacy, colleges and universities, biological research, heat treatment, water treatment and so on.


    Paperless recorder application

    Specs
    Model SISCO-PLR-R8000D
    Shipping weight 7kg
    Dimension (W*H*L) 288*288*168mm with hole size 282*282mm
    Packaging included 1 * Paperless recorder
    4 * Mounting bracket
    1 * Optical disk (software)
    1 * USB flash disk
    1 * User manual
    Display 10.4 inches TFT color LCD display, 640*480 points, 0~100% adjustment brightness
    Accuracy 0.2%FS±1d
    Power supply AC 85~265V, 50Hz
    Power dissipation ≤20W
    Internal storage 256M bytes flash
    Note: All the data is stored in flash memory to make sure that all historical data and configuration parameters are not lost due to power failure. The real-time clock powered by a lithium battery after power failure. The life of the clock battery is 10 years.
    External storage USB flash disk (standard USB2.0 communication interface)
    Number of Channel * 8, 12, 16, 24, 32, 40
    Input signal * 1. Current signal: 4-20mA, 0-10mA
    2. Voltage signal: 0-5V, 0-10V, 1-5V, 0-20mV, 0-100mV
    3. Thermocouple signal: S, B, K, T, E, J, R, N, F1, F2, WRE3-25, WRE5-26
    4. RTD signal: Pt100, Cu50, BA1, BA2
    5. Linear resistance: 0-350Ω
    6. Frequency signal: 0-10000Hz (customizable)
    Analog output * Up to 8 analog outputs:
    4-20mA (load resistance≤750Ω)
    Note: When 2432, analog output=0.
    Alarm output * Up to 24 alarm outputs, relay parameter: NO, 3A / 250VAC
    Communication output * 1. RS485: 1200-57600BPS baud rate, Modbus communication protocol, 1km communication distance.
    2. RS232: 1200-57600BPS baud rate, Modbus communication protocol, 15m communication distance.
    3. EtherNet: 10M communication rate, only used for LAN
    External power supply * Up to 8 power supplies:
    24VDC, 65mA (for external device)
    Interface EtherNet interface, USB interface, RS232 interface
    Sampling period 1s
    Recording interval 1s, 2s, 5s, 10s, 15s, 30s, 60s, 120s, 240s
    Storage length 72 hours/channel (1s interval) ~ 720 days/channel (240s interval)
    Functions Different data display forms: Overview Digital Display, Bar Graph, Real-time Curve, Alarm List, History Curve, Report, Print, Backup, Configuration, Computation (flow measurement)
    Operating temperature 0~50℃ (32~122℉)
    Relative humidity 10~85%RH (No condensation)
    Warranty 3 years
    FAQs

    Q1: What is a paperless recorder?
    A1: A paperless recorder is an instrument that records the collected data/arithmetic data on a time-based axis in the instrument's internal storage system without consuming any common recording facilities, such as paper, pen, and ink. The stored data recorded inside the instrument is displayed on the LCD screen after calculation and simulation. Commonly used display LCD screens are more extensive. On the LCD screen, digital display, bar graph display, curve display, alarm list, etc. can be displayed.

    Q2: What is the use of different channel numbers of paperless recorders?
    A2: The number of channels of urgent interest means that the scene is necessary to record the next few data on the selection of several channels, for example, if the scene is only a point of temperature, then choose a channel, there are two points of temperature necessary to record the selection of two channels. Usually in order to facilitate future expansion, you can choose a few more channels on the basis of this backup.

    Q3: What paperless recorder alarm is how to achieve?
    A3: The alarm function of the paperless recorder is important to refer to the relay alarm output, if the scene is necessary to alert the alarm, it is necessary to connect an external acoustic and optical alarm, exceed the standard will trigger the alarm, receive the police light to achieve the alarm function.

    Tips: What flags can the paperless recorder record?

    Paperless input flags are a variety of flags input, this recorder can record temperature, temperature, and humidity, current, voltage, power, power, frequency and speed flags, only need to choose the response sensor can be, only need to be a too large range or not in the recorder record range of flags into the standard flags to the recorder can be.
